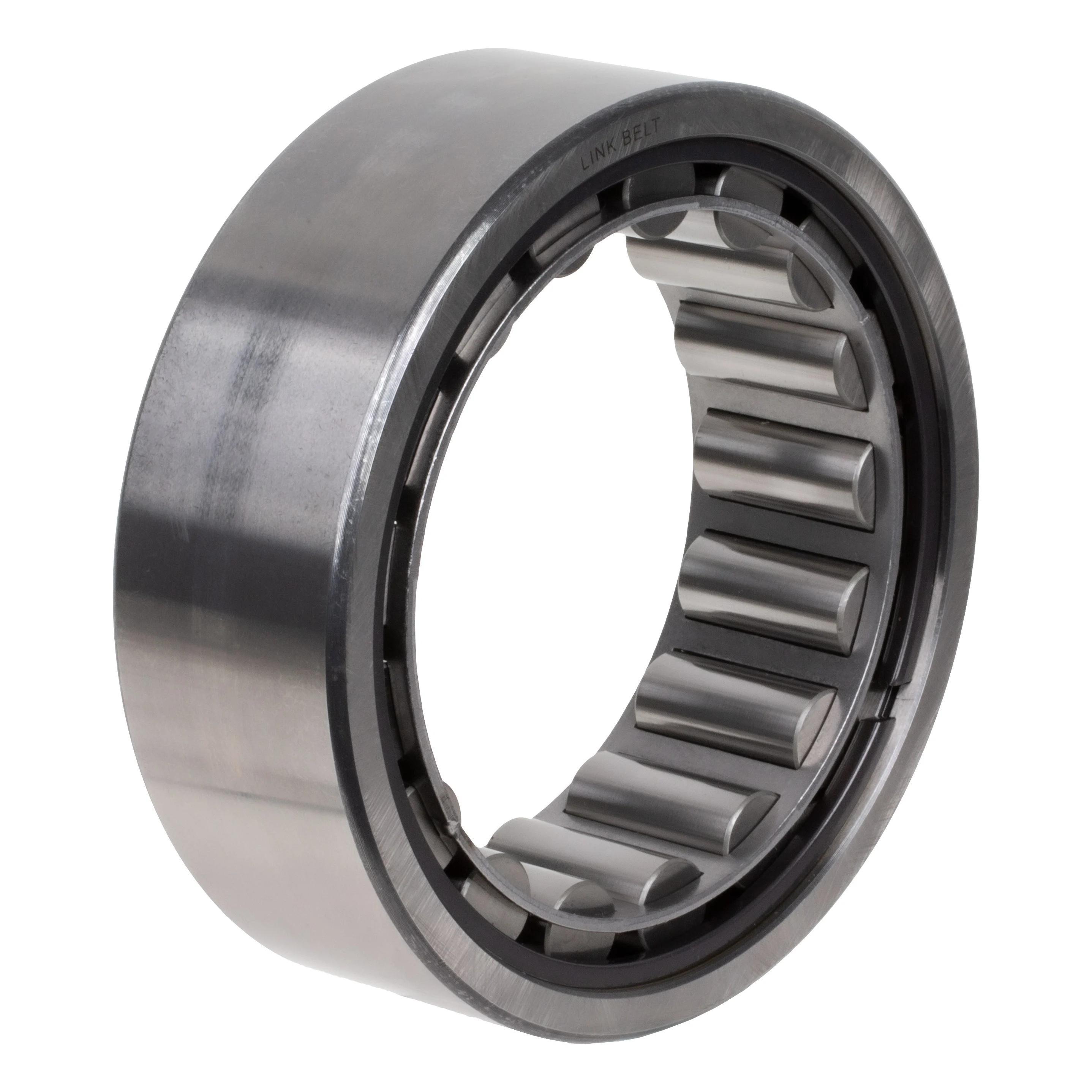

Link-Belt CYLINDRICAL ROLLER BEARINGS LNK M-5216-TV
Metric series cylindrical roller bearings are manufactured to ABMA boundary dimensions. These bearings require minimum space and provide maximum rated capacity. Various configurations including separable inner or outer ring combinations offer ample application flexibility.
-
BrandLink-Belt®
-
UPC662327108069
-
Manufacturer Part Number10472586
-
CountryUSA|Canada
-
Load Capacity45000 lb Dynamic/63700 lb Static
-
Cage MaterialSteel
-
FinishUncoated
-
Closure TypeOpen
-
TypeWide Width
-
Width44.45 mm
-
Series5200 Light
-
Number of Rows1
-
Bearing MaterialChrome Steel
-
Outside Diameter140 mm
-
Bore Diameter80 mm
- Contact Rexnord for more details
- Micro finished raceways assure smooth operations
- Optimized raceway contact area
- Positive roller spacing
- Fully crowned roller
- Precision ground rib
- Contoured roller pockets
- Rollers individually separated
- Outer ring with two retaining rings in inside diameter
- Formed steel retainer
- Standard capacity
- Without Inner Ring
-
Alternative Part NumberM5216TV
-
UNSPSC31171547
-
Standards/ApprovalsANSI/ABMA STD 11
-
Warranty1 Year
-
Package DescriptionEACH
-
Instruction/Installation Manual
-
Specification Sheet
-
Catalog
