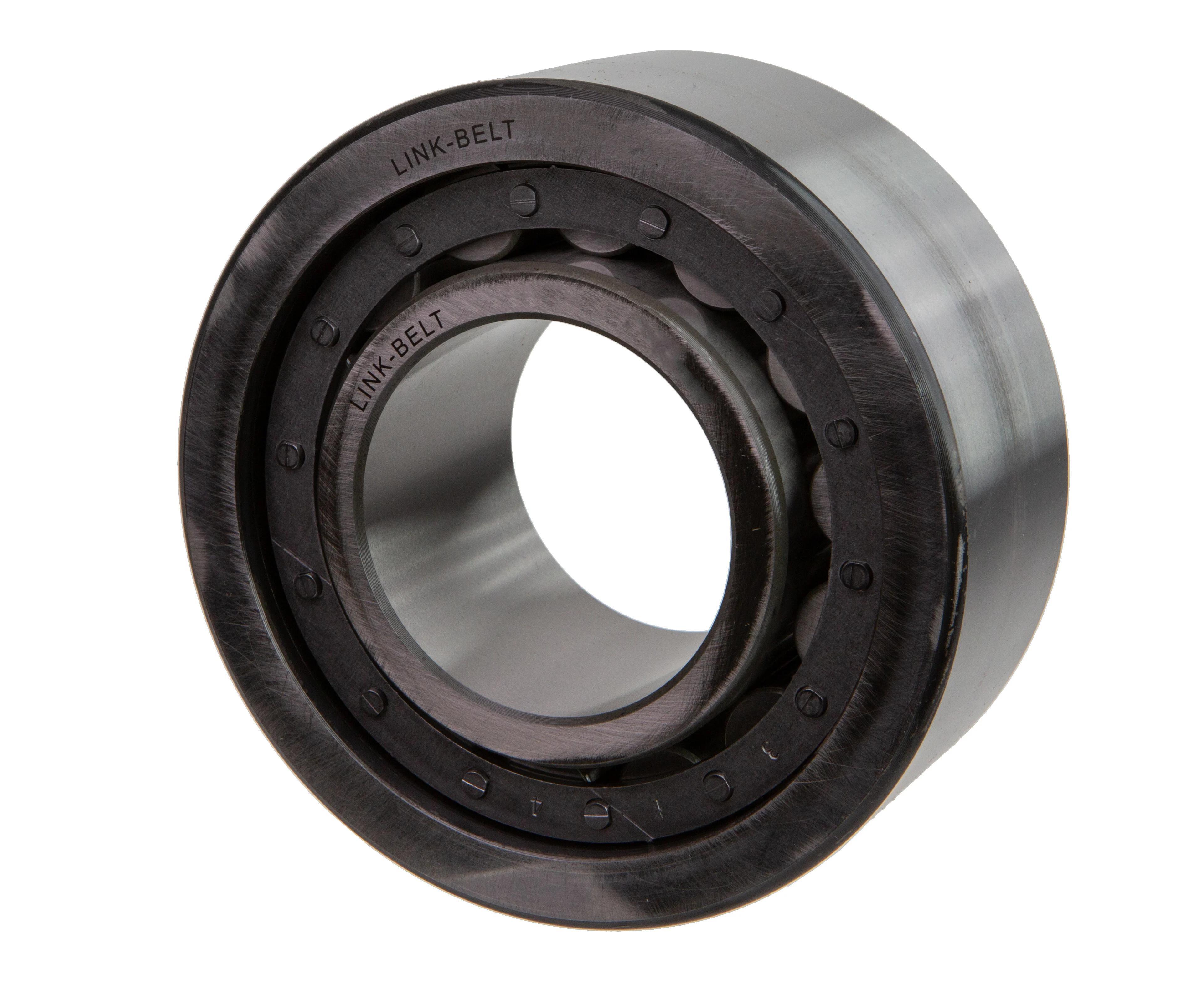

Link-Belt CYLINDRICAL ROLLER BEARINGS LNK MA-1306-EX
Link-Belt® cylindrical roller bearings offer a broad range of configuration options and features to ensure you get the best value on delivery and performance. Utilizing case-carburizing, bearing quality steel and complex geometries, our bearings are designed to consistently perform in demanding applications, and our broad product range includes a bearing for any application. Plus, we offer dedicated engineering support to help customize units to your specifications.
-
BrandLink-Belt®
-
UPC662327052218
-
Manufacturer Part Number10471991
-
CountryUSA|Canada
-
Load Capacity45900 N Dynamic/44700 N Static
-
Cage MaterialSegmented Steel
-
Temperature Rating-40 to 275 deg F
-
Closure TypeOpen
-
TypeMedium Unmounted
-
Width19 mm
-
SeriesM1300
-
Number of Rows1
-
Bearing MaterialChrome Steel
-
Outside Diameter72 mm
-
Bore Diameter30 mm
- Plain cylindrical inner ring
- Narrow width
- Double rib outer ring
- Standard capacity
- Fully crowned rollers
- Precision ground ribs
- Rollers individually separated
- High and low-volume manufacturing capabilities
- Super-finished raceways for smooth operation
- Broad standard product range
- 1306 bearing number
-
Alternative Part NumberMA1306EX
-
UNSPSC31171500
-
Standards/ApprovalsANSI|ABMA STD 11
-
Package DescriptionEACH
-
Catalog
-
Instruction/Installation Manual
