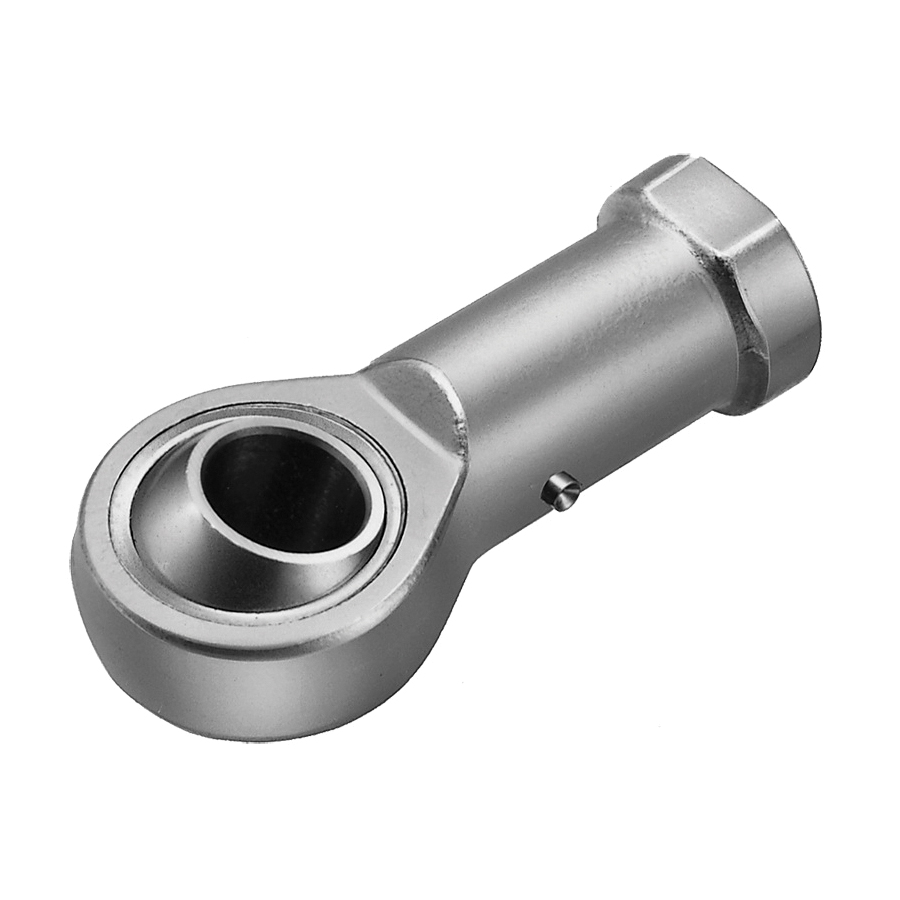

IKO Bearings 18-MM 1.50 L/HAND FEMALE ROD ENDS IKO PHS-18-L-A
PILLOBALL self-aligning Rod Ends can be used as link mechanisms in a variety of machines and are designed for easy installation.
-
BrandIKO
-
Manufacturer Part NumberPHS18LA
-
CountryUSA
-
Load Capacity25700 N Dynamic/30200 N Static
-
Temperature Rating180 deg C
-
FinishZinc Chromate Plated
-
Thread SizeM18x1.5
-
Thread TypeLeft Hand Female
-
TypeInsert/Lubrication Type
-
Width27 mm
-
SeriesPHS-A Metric Series
-
Dimensions92 mm H
-
Outside Diameter42 mm
-
Bore Diameter18 mm
- Each PILLOBALL Rod End type achieves smooth rotational and oscillatory motion while providing excellent wear and loading capabilities
- Insert-type PILLOBALLS are designed with a special copper alloy bushing to provide effective run-in properties
-
UNSPSC31171510
-
