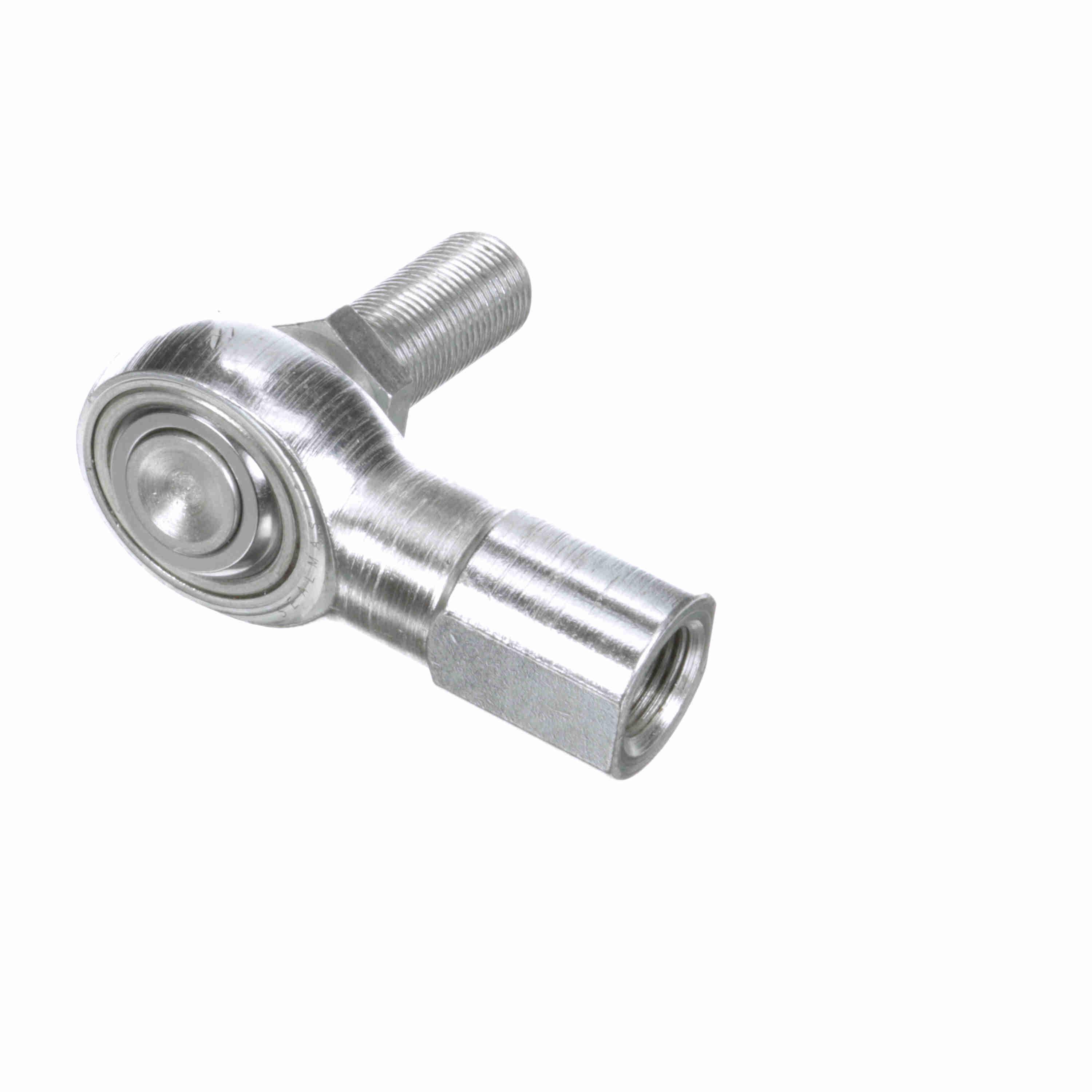

Sealmaster® 1411008000 TR Series 3-Piece General Purpose Precision Rod End Bearing, 5/8 in Dia Bore, 1-1/2 in OD, 8050 lb Load, Carbon Steel
Sealmaster® two and three piece rod end bearing housing designs have been optimized for overall strength. This housing advantage and variety of outer race materials including brass, steel, DELRIN and PTFE liners provide a wide selection of application solutions. Sealmaster® rod end bearings can be joined together or connected with a threaded rod or tube as linkage assemblies for flexibility in motion transfer. In addition Sealmaster® rod end bearings can accommodate angular misalignment to provide ease in assembly and smooth motion transfer in a variety of applications.
-
BrandSealmaster®
-
UPC662288720447
-
Manufacturer Part Number1411008000
-
CountryUSA
-
Load Capacity8050 lb
-
MaterialCarbon Steel
-
Thread Size5/8-18 x 1.469 in
-
Thread TypeFemale UNF
-
Type3-Piece General Purpose Precision
-
Width3/4 in
-
SeriesTR Series
-
Outside Diameter1-1/2 in
-
Bore Diameter5/8 in
- Incorporate a 1-piece race formed around a hardened steel chrome plated ball in a controlled manufacturing process
- Flexibility for alternative race materials designed to help solve specific application problems
- Protective coated for corrosion resistance
- Higher average tensile strength and fatigue life, competition
- Wrench flat on female rod ends facilitates assembly
- Full catalog thread depth for maximum thread engagement
- Reduces pound-out in applications with high frequency oscillation, vibration or shock loading
- Improved spherical ball-race conformity for even load distribution
- Precision ball-race fit
- Less wear than rod ends with 2-piece race designs
- Manufactured in steel, aluminum bronze and self lubricating Delrin®
- Alloy steel heat treated and chrome plated for corrosion resistance
- Better wear resistance properties than carbon steel tin nickel plated balls
- Grease lubrication
-
Alternative Part NumberTR 10Y
-
UNSPSC31171507
-
