FED/Bronze 1/2" X 3/4" X 1/16" BRONZE WASHERS FEB ST-16-24-2

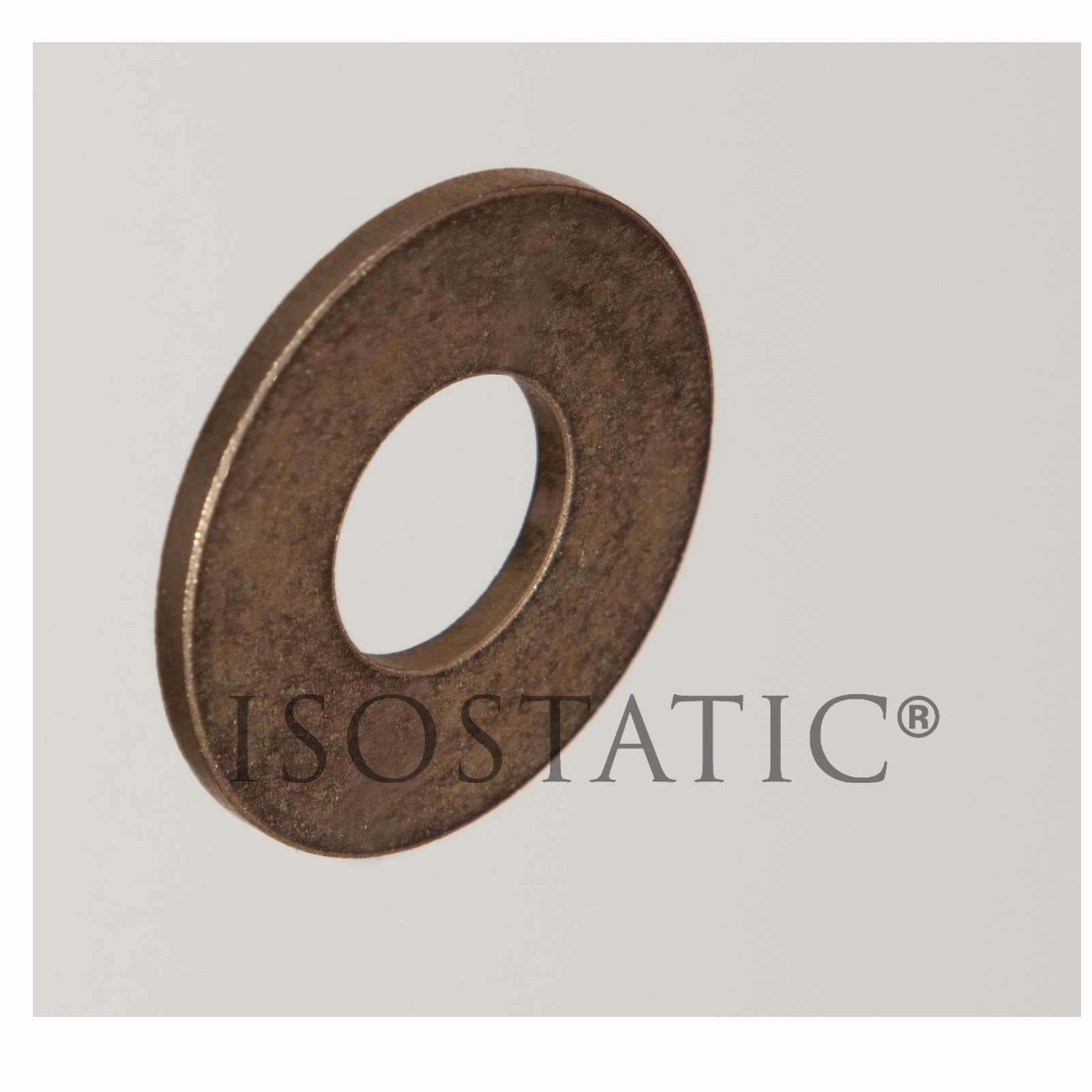

ISOSTATICā¢ OilubeĀ® 402412 Round Bore Thrust Washer, 1/2 in ID x 3/4 in OD, 1/16 in THK, 10 to 175 deg F, SAE 841 Powdered Metal/Oil Impregnated Bronze
-
BrandISOSTATICā¢
-
UPC846802050207
-
Manufacturer Part Number402412
-
CountryUSA
-
Temperature Rating10 to 175 deg F
-
Thickness1/16 in
-
MaterialSAE 841 Powdered Metal/Oil Impregnated Bronze
-
Maximum PV Rating50000 psi/sq-ft/min
-
Maximum Pressure2000 psi
-
Maximum Velocity1200 sq-ft/min
-
TypeRound Bore
-
Inside Diameter1/2 in
-
Outside Diameter3/4 in
- Standard stock products
- SAE 841 copper (87 to 90%), tin (8 to 9%), carbon and other elements
- Powdered metal bronze providing interconnected reservoirs for oil
- Vacuum impregnated with SAE 30 oil during the manufacturing process
- Self-lubricating, when in motion oil rises to the surface for lubrication and restores itself when at rest
- Ideal for heavy loads at moderate speeds or light loads at high speeds
-
Alternative Part NumberST-1624-2
-
UNSPSC31161814
-
Package Description1/PK
-
Standards/ApprovalsROHS|REACH|DFARS Compliant|PROP65: This product can expose you to chemicals including polybrominated biphenyls which is known to the state of California to cause cancer and cadmium which is known to the state of California to cause birth defects or other reproductive harm. For more information go to www.P65WARNINGS.ca.gov
-
Specification Sheet
-
Catalog
