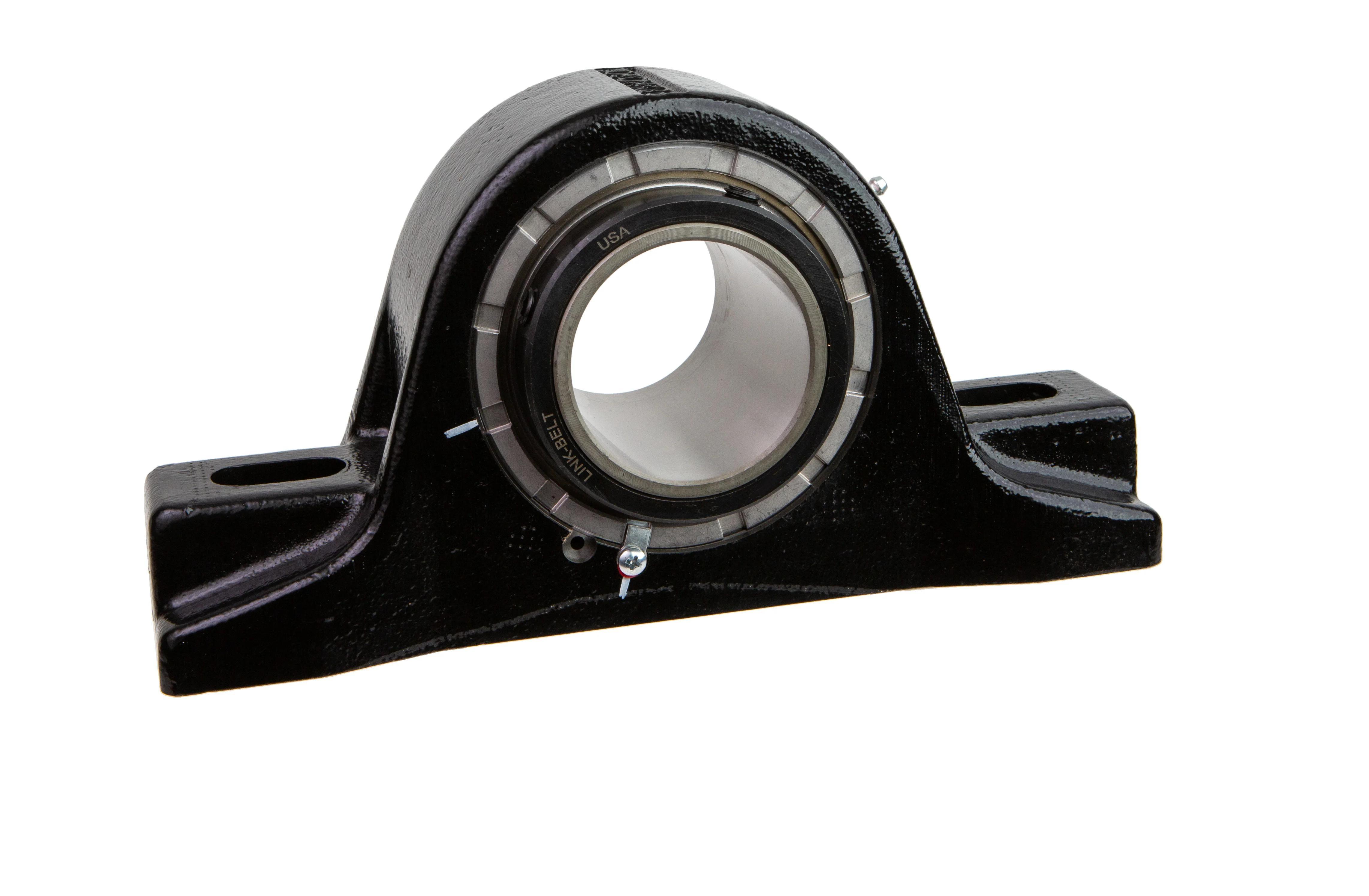

Link-Belt 45-MM-ID PILLOW BLOCK UNITS LNK PB-224-M-45-E
Self-aligning double row spherical roller bearings are designed to distribute the load over the symmetrical rollers, assuring positive tracking and smooth operation. The large roller complement provides high capacity for radial or combined radial-thrust loads. Osculation clearance at the ends of the rollers compensates for shock loads and prevents destructive edge loading. These precision bearings with double contoured retainer pockets are designed to meet a broad range of application requirements.
-
BrandLink-BeltĀ®
-
UPC662327428792
-
Manufacturer Part Number10411063
-
CountryUSA|Canada
-
Load Capacity115209 N Dynamic/147681 N Static
-
Locking DeviceSingle Set Screw Collar
-
Temperature Rating107 deg C
-
FinishPowder Coated
-
MaterialCast Iron
-
Maximum Speed2150 rpm
-
TypeSolid Housed
-
Mounting TypeTwo-Bolt Base
-
Seal TypeSpring-Loaded/Heavy Contact
-
SeriesB22400
-
Base Width63.5 mm
-
Base to Bore Centerline57.15 mm
-
Bolt Center-to-Center Length158.8 mm
-
Bore Diameter45 mm
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height115.9 mm
-
Overall Length206.38 mm
-
Overall Width79.38 mm
- Long inner ring for high stability and load support
- Spherical roller bearing allows for +/- 2 deg of misalignment to accommodate variations between shaft and support structure as well as shaft deflection during operation
- Double contoured retainer pockets
- Slotted bolt holes in pillow block
- Pre-lubricated and do not require bearing adjustment during mounting
- Corrosion resistant
- Spherical roller bearing extended inner ring separable outer rings
-
Alternative Part NumberPB224M45E
-
UNSPSC31171511
-
Standards/ApprovalsANSI/ABMA STD 9-1990
-
Warranty1 Year
-
Package DescriptionEACH
-
