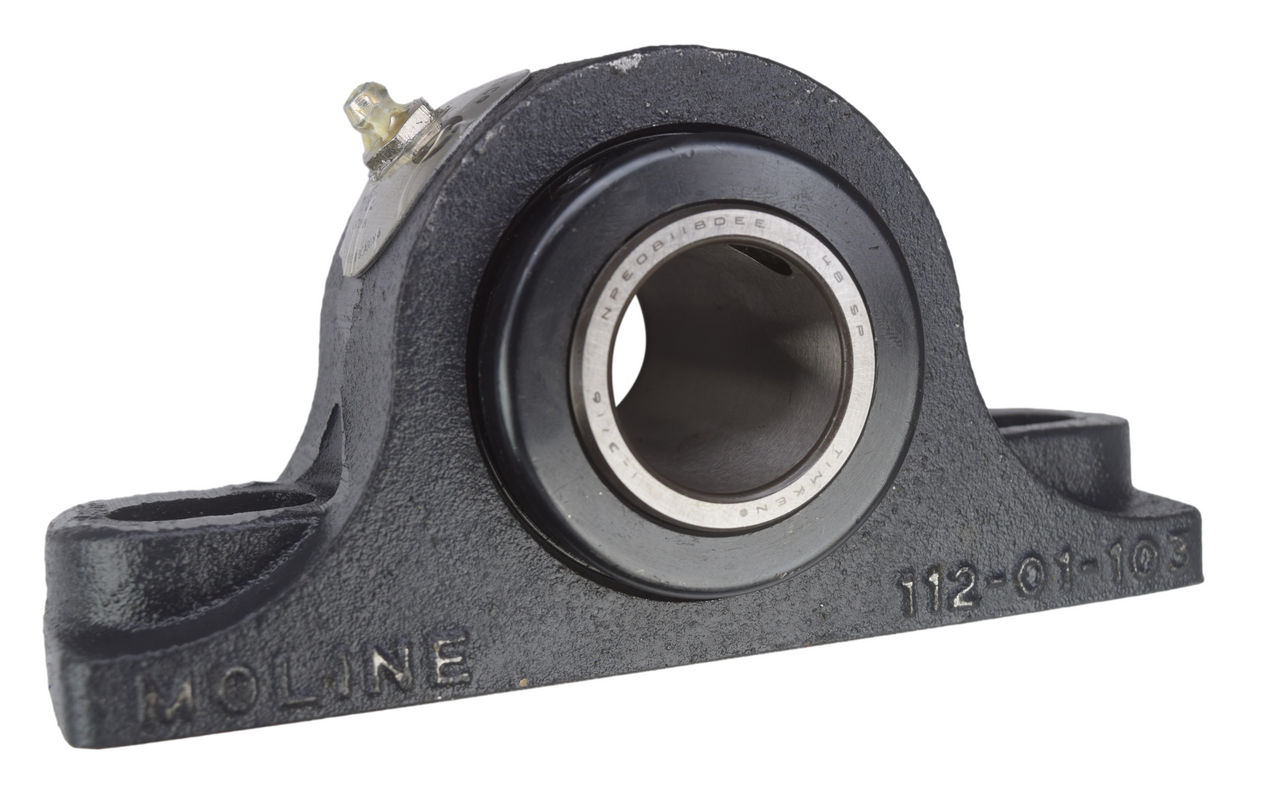

Moline Bearing 19321103 Type E Pillow Block Bearing, 1-3/16 in Dia Bore, 4-9/16 in L Bolt Center-to-Center, 1-1/2 in Base to Bore Centerline, 6-1/4 in OAL x 3 in OAH
Made of Cast Iron, this Solid Type E 2-Bolt Pillow Block is a Non-Expansion Mounted Roller Bearing Bearing with a 1 3⁄16 in (1.1875 in) shaft size. Includes a Steel Set Screw Locking Insert with a Double Collar, an available Standard V-Guard Contact Seal made of Nitrile, and a Standard Painted finish, this bearing is ready for even the toughest of jobs.
-
BrandMoline Bearing
-
Manufacturer Part Number19321103
-
CountryUSA
-
TypeType E
-
Mounting Type2-Bolt
-
Base Width1-7/8 in
-
Base to Bore Centerline1-1/2 in
-
Bolt Center-to-Center Length4-9/16 in
-
Bore Diameter1-3/16 in
-
Overall Height3 in
-
Overall Length6-1/4 in
-
Overall Width2-3/4 in
-
Package DescriptionEACH
