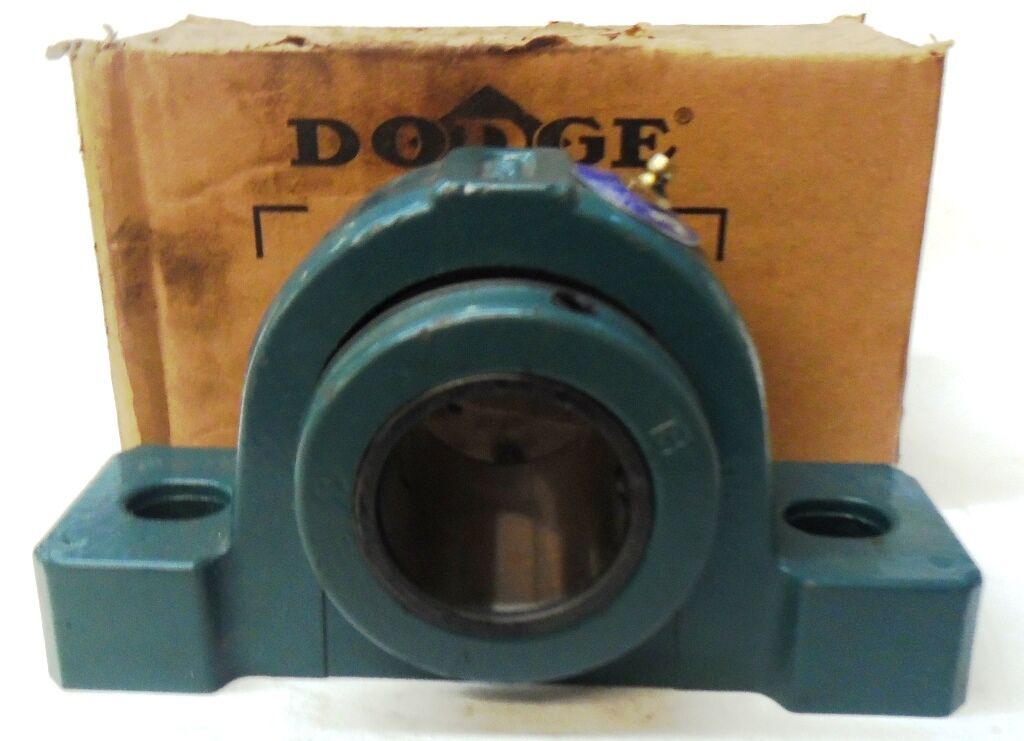

P-4-BS-2415-RE Dodge® 70395 Type S-2000 Pillow Block Roller Bearing Unit, 4-15/16 in Dia Bore, 15 to 16 in L Bolt Center-to-Center, 5-1/2 in Base to Bore Centerline, 18.63 in OAL 11.13 in OAH
-
BrandDodge®
-
Manufacturer Part Number70395
-
CountryUSA
-
Load Capacity146000 lb Dynamic/196000 lb Static
-
Locking DeviceSpringlok™ Concentric Collar
-
Temperature Rating-100 to 200 deg F
-
FinishBlack Oxide
-
MaterialCast Iron
-
Maximum Speed870 rpm
-
TypeType S-2000
-
Mounting Type4-Bolt Base
-
Seal TypeTrident™ Triple Lip
-
Base Width5.38 in
-
Base to Bore Centerline5-1/2 in
-
Bolt Center-to-Center Length15 to 16 in
-
Bore Diameter4-15/16 in
-
Bore TypeRound
-
Expansion TypeExpansion Bearing
-
Overall Height11.13 in
-
Overall Length18.63 in
-
Overall Width6.91 in
