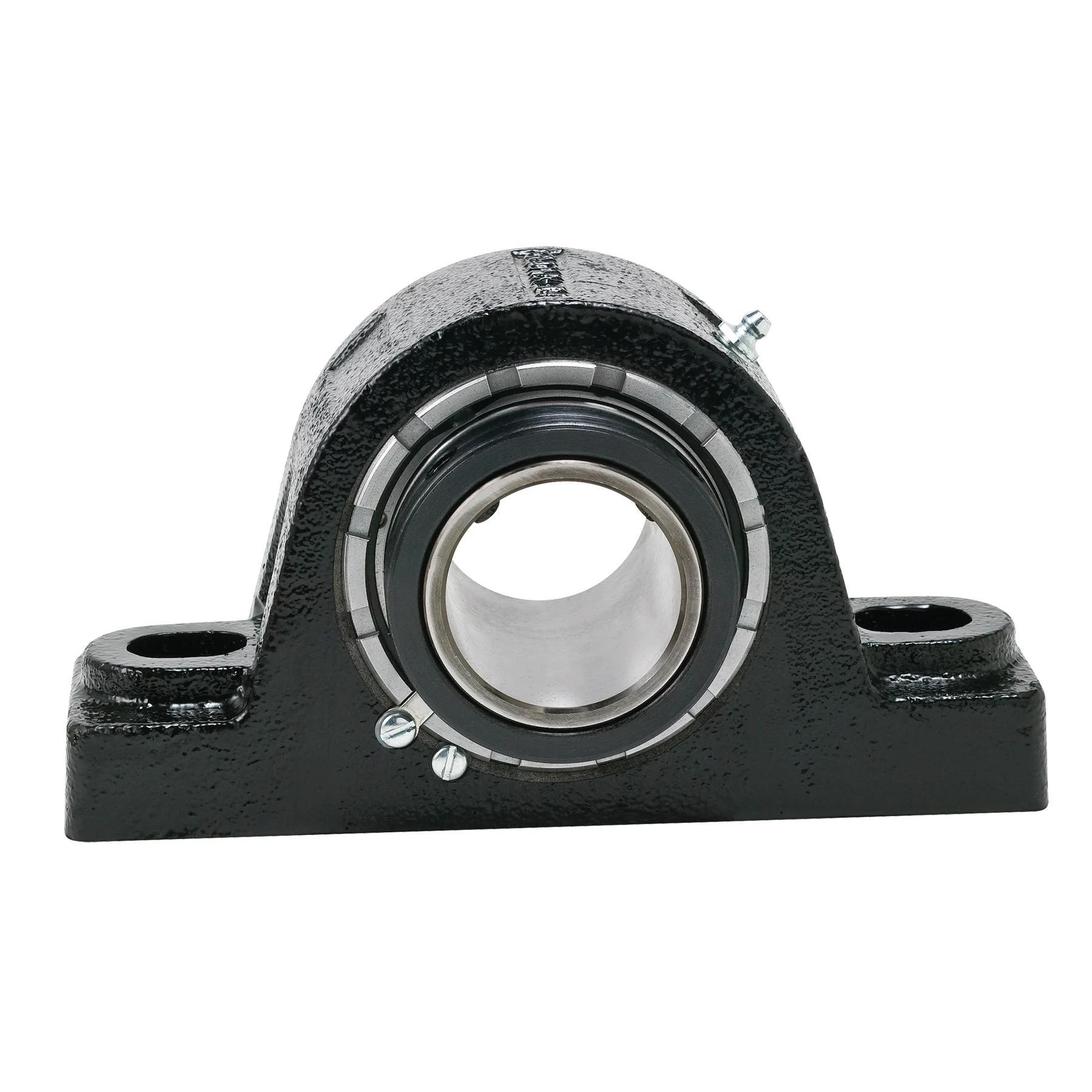

Rexnord® 10435713 2000 Normal Duty Pillow Block Spherical Roller Bearing, 2-11/16 in Dia Bore, 8-1/8 in L Bolt Center-to-Center, 3-1/4 in Base to Bore Centerline, 10-7/16 in OAL x 6-7/16 in OAH
Rex® 10435713 2000 Normal Duty Pillow Block Spherical Roller Bearing, 2-11/16 in Dia Bore, 8-1/8 in L Bolt Center-to-Center, 3-1/4 in Base to Bore Centerline, 10-7/16 in OAL x 6-7/16 in OAH
-
BrandRexnord®
-
UPC698210160807
-
Manufacturer Part Number10435713
-
CountryUSA|Canada
-
Load Capacity57750 lb Dynamic/71500 lb Static
-
Locking DeviceSingle Set Screw Collar
-
Temperature Rating225 deg F
-
FinishPowder Coated
-
MaterialCast Iron
-
Maximum Speed2800 rpm
-
TypeNormal Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeClearance
-
Series2000
-
Base Width3-3/16 in
-
Base to Bore Centerline3-1/4 in
-
Bolt Center-to-Center Length8-1/8 in
-
Bore Diameter2-11/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height6-7/16 in
-
Overall Length10-7/16 in
-
Overall Width4 in
- Easy bearing clearance adjustment
- Replaceable bearing
- Pre-lubricated with standard grease for normal operation
- Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
- Rugged housing
- Simplest installation
- Most economical
- Misalignment capabilities total of 4 deg
- Factory set clearance and lubrication
- Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
- Field interchangeable seals
-
Alternative Part NumberZA2211
-
UNSPSC31171511
-
Standards/ApprovalsANSI/ABMA STD 9
-
Warranty1 Year
-
Package DescriptionEACH
-
Catalog
-
Instruction/Installation Manual
