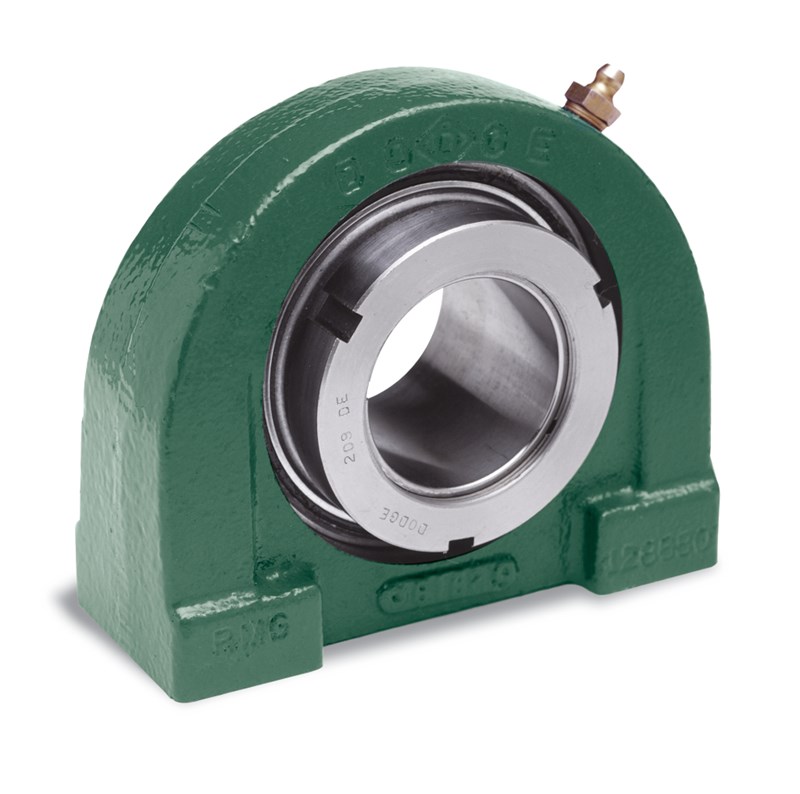

Dodge® 050386 211 Normal Duty Pillow Block Ball Bearing Unit, 2-3/16 in Dia Bore, 4 in L Bolt Center-to-Center, 2-1/4 in Base to Bore Centerline, 5-1/2 in OAL x 4.63 in OAH
A setscrew shaft attachment method is the most common means of securing a mounted ball bearing to a shaft and also the easiest to install. The Dodge® mounted ball bearing offering is engineered with a 65 deg setscrew angle. This ensures the maximum grip onto the shaft, especially when using premium cup point set screws with the high quality manufacturing of the Dodge® insert.
-
BrandDodge®
-
UPC782475821495
-
Manufacturer Part Number050386
-
CountryUSA
-
Load Capacity9755 lb Dynamic/6588 lb Static
-
Locking Device65 deg Set Screw
-
FinishPowder Coated
-
MaterialCast Iron
-
Maximum Speed4000 rpm
-
TypeNormal Duty
-
Mounting TypeTapped Base
-
Seal TypeSingle Lip
-
Series211
-
Base Width2 in
-
Base to Bore Centerline2-1/4 in
-
Bolt Center-to-Center Length4 in
-
Bore Diameter2-3/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height4.63 in
-
Overall Length5-1/2 in
-
Overall Width2.22 in
- 65 deg setscrew locking system
- Precision hardened and honed inner and outer rings
- Grade 10 balls
- Wide inner ring design
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 100939375 |
| Motion Industries | 03257797 |
-
Alternative Part NumberTB-SC-203
-
UNSPSC31171504
-
Package DescriptionEACH
-
WarrantyLimited
-
Specification Sheet
-
Warranty Information
-
Catalog
