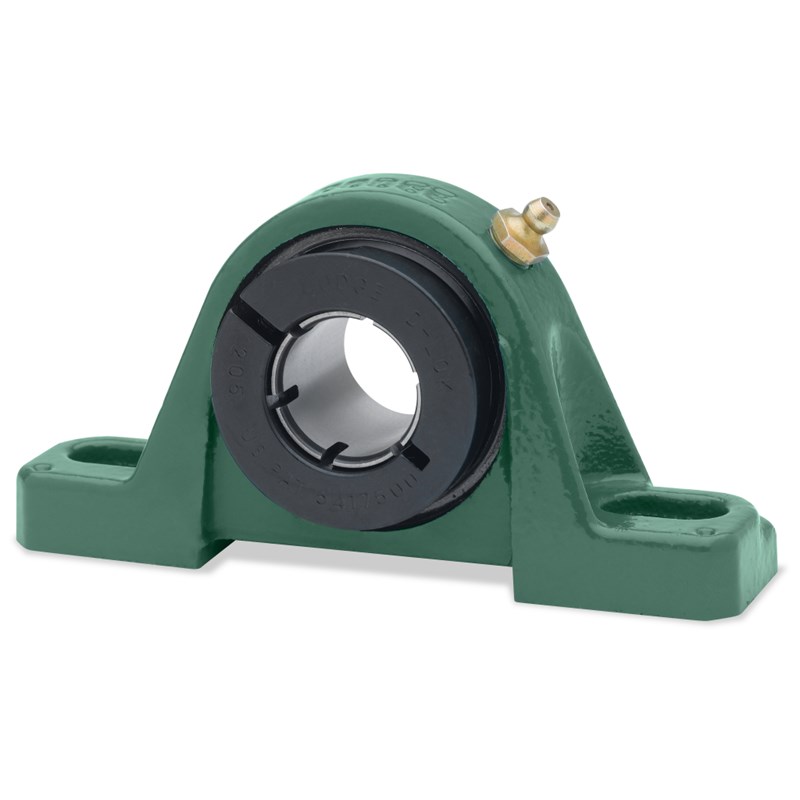

Dodge® 128697 216 Medium Duty Pillow Block Ball Bearing Unit, 2-15/16 in Dia Bore, 8-1/2 to 9-1/2 in L Bolt Center-to-Center, 3-1/2 in Base to Bore Centerline, 11-3/4 in OAL x 6.97 in OAH
For concentric grip on the shaft and less vibration at higher speeds, specify Dodge® D-LOK® normal- or medium-duty mounted ball bearings. These unique, concentric collar bearings are engineered with features that assure you superior holding power with improved concentricity. Even at high speeds, the D-LOK® bearing grips the shaft tighter and more uniformly for less vibration.
-
BrandDodge®
-
UPC782475972074
-
Manufacturer Part Number128697
-
CountryUSA
-
Load Capacity17407 lb Dynamic/13102 lb Static
-
Locking DeviceD-LOK® Concentric Clamp Collar
-
Temperature Rating225 to 400 deg F
-
FinishPowder Coated
-
MaterialSteel
-
Maximum Speed2500 rpm
-
TypeMedium Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeSingle Lip
-
Series216
-
Base Width3 in
-
Base to Bore Centerline3-1/2 in
-
Bolt Center-to-Center Length8-1/2 to 9-1/2 in
-
Bore Diameter2-15/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height6.97 in
-
Overall Length11-3/4 in
-
Overall Width2.62 in
- Precision-hardened and honed inner and outer rings
- New rugged housing design
- Normal duty wide inner ring
- D-LOK® locking mechanism
- Dual guard positive contact seal including rubberized flingers
- Stronger and flexible ball retainer
- Simplified anti-rotation device
- Electrostatically applied epoxy paint
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 101847066 |
| Motion Industries | 02754575 |
-
Alternative Part NumberP2B-DLM-215
-
UNSPSC31171504
-
Package DescriptionEACH
-
WarrantyLimited
-
