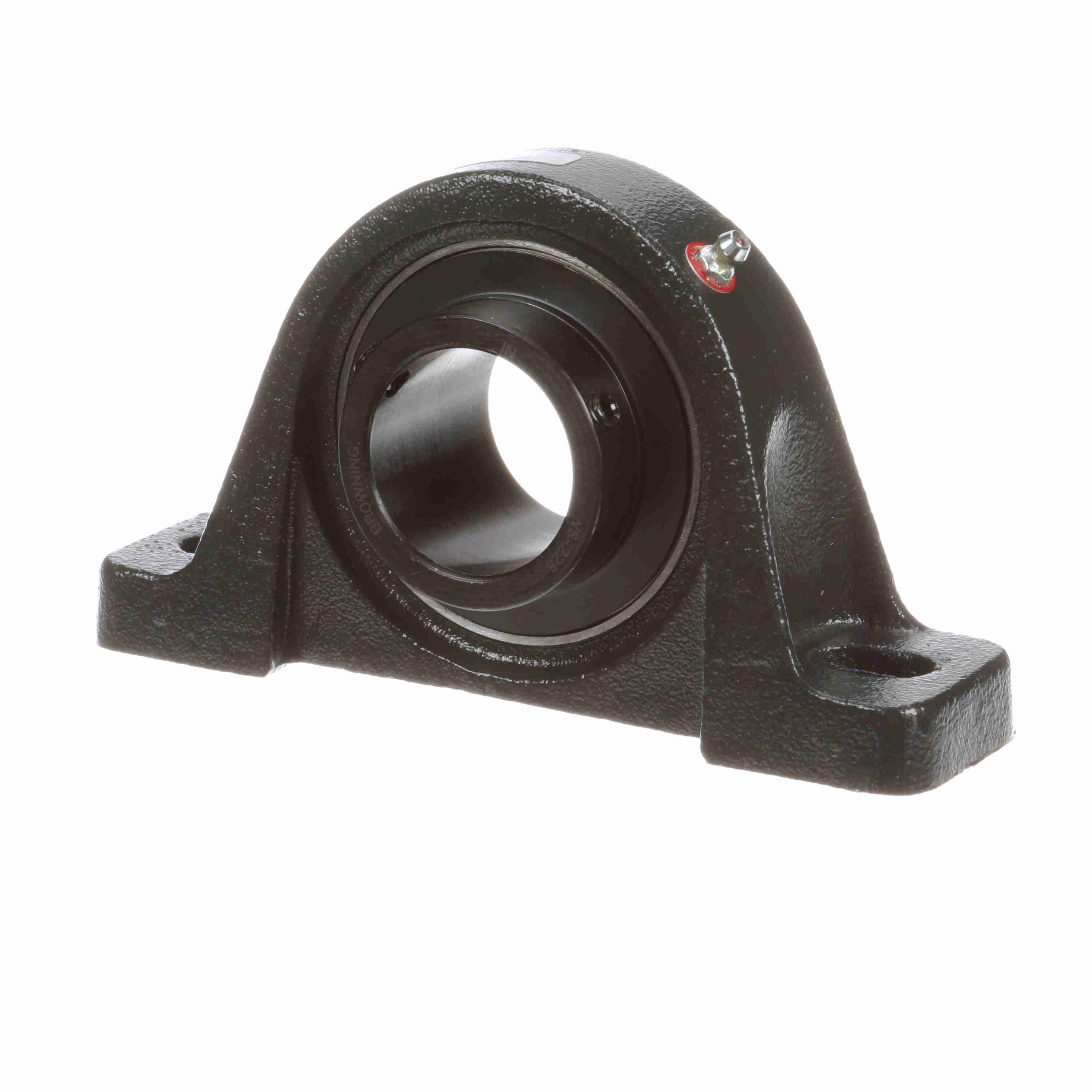

Browning® 767693 VPLS 200 Normal Duty Low Base Pillow Block Ball Bearing Unit, 1-3/4 in Dia Bore, 5-13/64 to 6-7/64 in L Bolt Center-to-Center, 2-1/16 in Base to Bore Centerline, 7-3/8 in OAL x 4-3/16 in OAH
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289525010
-
Manufacturer Part Number767693
-
CountryUSA
-
Load Capacity7901 lb Dynamic/5139 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating200 to 250 deg F
-
FinishGray Painted
-
MaterialCast Iron
-
Maximum Speed3000 rpm
-
TypeNormal Duty Low Base
-
Mounting TypeTwo-Bolt Base
-
Seal TypeSingle Lip Contact with Flinger
-
SeriesVPLS 200
-
Base Width2 in
-
Base to Bore Centerline2-1/16 in
-
Bolt Center-to-Center Length5-13/64 to 6-7/64 in
-
Bore Diameter1-3/4 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height4-3/16 in
-
Overall Length7-3/8 in
- A positive-contact molded nitrile rubber contact seal with an auxiliary flinger element comes standard
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Semi solid cast iron rugged base design provides an excellent mounting foundation
- Zone hardened inner race
- Setscrew locking is 120 deg spaced, balanced three-point contact minimizes inner ring distortion vibration while reducing noise and improving reliability
- Nylon retainer
- 52100 steel insert
- Alemite fitting lubrication
- Powder coat epoxy cast iron housing
-
Alternative Part NumberVPLS-228
-
UNSPSC31171505
-
Package DescriptionEACH
-
Standards/ApprovalsABMA Standard
-
Warranty1 Year
-
