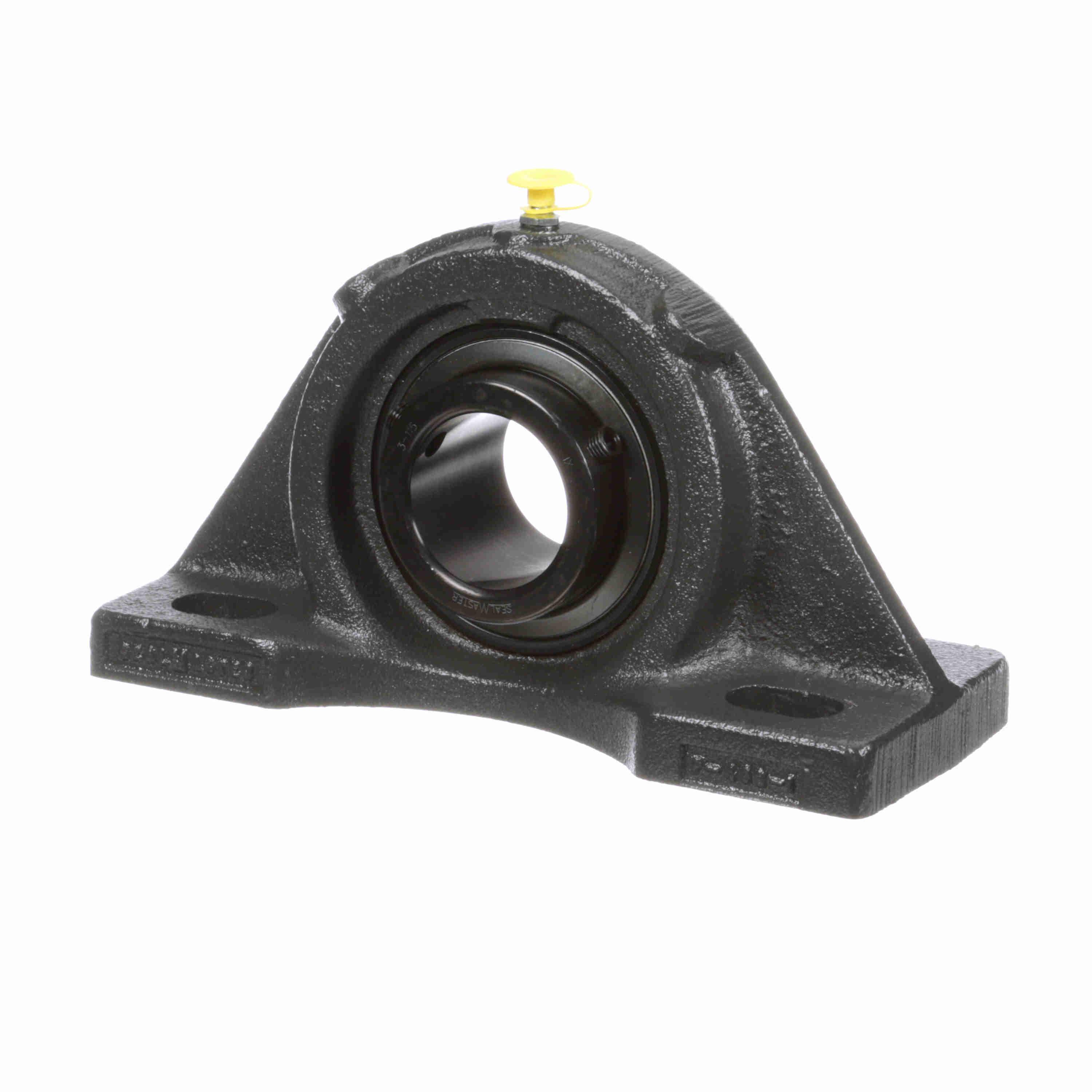

Sealmaster 1-15/16"-ID 4-BOLT PILLOW BLOCKS SEA MFP-31-C
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing, and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing, and lubrication options or industry specific solutions.
-
BrandSealmaster®
-
UPC662461026458
-
Manufacturer Part Number704179
-
CountryUSA
-
Load Capacity9752 lb Dynamic
-
Locking DeviceSet Screw
-
Temperature Rating250 deg F
-
FinishUncoated
-
MaterialCast Iron
-
Maximum Speed3250 rpm
-
TypeMedium Duty
-
Mounting TypeFour-Bolt Base
-
Seal TypeSingle Lip
-
SeriesMFP-C
-
Base Width4 in
-
Base to Bore Centerline2-1/2 in
-
Bolt Center-to-Center Length6-3/8 to 7-5/8 in
-
Bore Diameter1-15/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height5-3/8 in
-
Overall Length9-3/4 in
-
Overall Width2-3/16 in
- Wide outer ring
- Lock pin and dimple
- Zone hardened inner race
- Land riding retainer
- Housing fit
- Metal nameplate riveted to the housing allows for easy identification even after years of operation
- Alemite fitting lubrication
- 52100 black oxide coated steel bearing
-
Alternative Part NumberMFP-31C
-
UNSPSC31171504
-
Instruction/Installation Manual
-
Catalog
-
Specification Sheet
