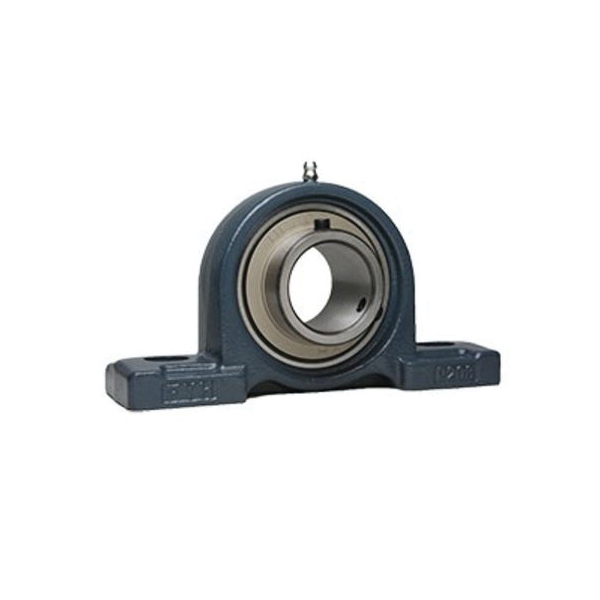

FYH® UCP208-24 Pillow Block Unit, 1-1/2 in Dia Bore, 5-13/32 in L Bolt Center-to-Center
FYH® UCP208-24 Pillow Block Unit, 1-1/2 in Dia Bore, 5-13/32 in L Bolt Center-to-Center
-
BrandFYH®
-
UPC808250119875
-
Manufacturer Part NumberUCP208-24
-
CountryUSA
-
Load Capacity6548 lbf Dynamic/4005 lbf Static
-
Locking DeviceSet Screw
-
MaterialCast Iron
-
SeriesUCP
-
Bolt Center-to-Center Length5-13/32 in
-
Bore Diameter1-1/2 in
-
Bore TypeCylindrical
- P208 housing
- UC208-24 bearing
- Pillow block unit with a rigid cast iron housing and two specially designed set screws in the inner ring spaced at 120 deg for maximum holding power and reliability for a wide variety of applications and operating conditions
- 1/2 in bolt
- 7-1/4 in OAW
- 3-27/32 in OAH
- Basic Load Rating: 14 factor
- 2-1/8 in base depth
- 1-15/16 in center to base
- 5/16-24 UNF set screw size
- A-1/4-28 UNF grease fitting size
-
UNSPSC31171511
-
