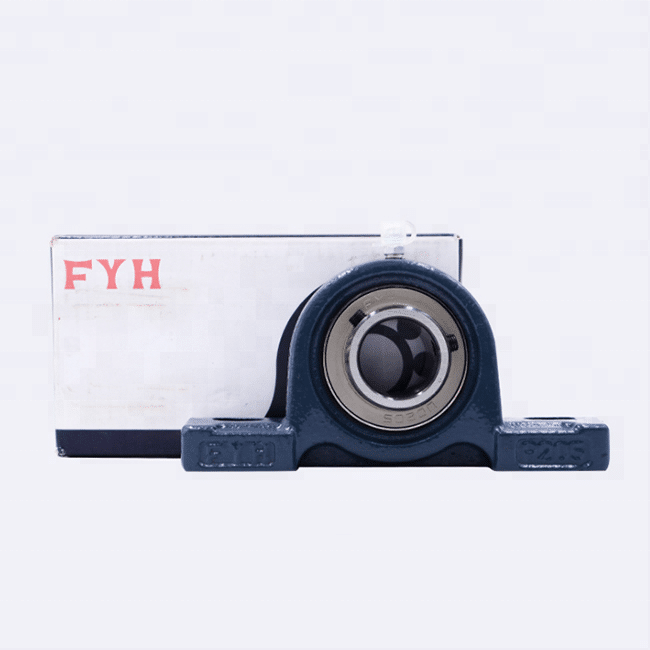

FYH® UCP215 47 UCP Normal Duty Pillow Block Unit, 2-15/16 in Dia Bore, 8-17/32 in L Bolt Center-to-Center, 3-1/4 in Base to Bore Centerline, 10-13/16 in OAL 6-3/8 in OAH
FYH® UCP215 47 UCP Normal Duty Pillow Block Unit, 2-15/16 in Dia Bore, 8-17/32 in L Bolt Center-to-Center, 3-1/4 in Base to Bore Centerline, 10-13/16 in OAL 6-3/8 in OAH
-
BrandFYH®
-
Manufacturer Part NumberUCP215 47
-
CountryUSA
-
Load Capacity67.4 kN Dynamic/48.3 kN Static
-
Locking DeviceSet Screw
-
MaterialCast Iron
-
TypeNormal Duty
-
SeriesUCP
-
Base Width2-27/32 in
-
Base to Bore Centerline3-1/4 in
-
Bolt Center-to-Center Length8-17/32 in
-
Bore Diameter2-15/16 in
-
Bore TypeCylindrical
-
Overall Height6-3/8 in
-
Overall Length10-13/16 in
-
Overall Width2-27/32 in
