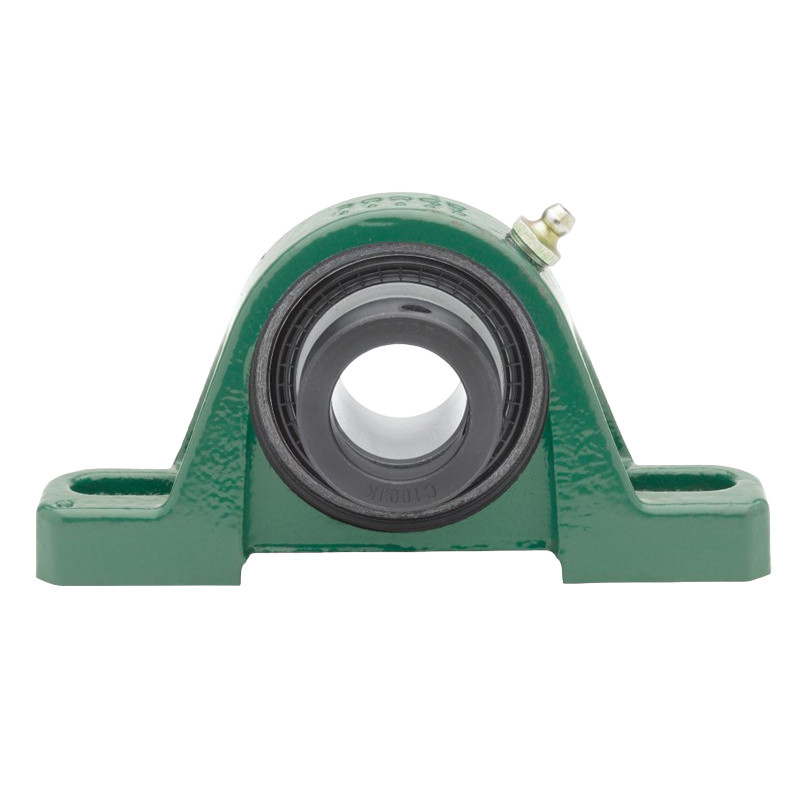

FYH® NAPK207 23 NAPK Normal Duty Pillow Block Unit, 1-7/6 in Dia Bore, 5 in L Bolt Center-to-Center, 1-13/16 in Base to Bore Centerline, 6-9/16 in OAL 3-5/8 in OAH
FYH® NAPK207 23 NAPK Normal Duty Pillow Block Unit, 1-7/6 in Dia Bore, 5 in L Bolt Center-to-Center, 1-13/16 in Base to Bore Centerline, 6-9/16 in OAL 3-5/8 in OAH
-
BrandFYH®
-
Manufacturer Part NumberNAPK207 23
-
CountryUSA
-
Load Capacity25.7 kN Dynamic/15.4 kN Static
-
Locking DeviceEccentric Collar
-
TypeNormal Duty
-
SeriesNAPK
-
Base Width1-7/8 in
-
Base to Bore Centerline1-13/16 in
-
Bolt Center-to-Center Length5 in
-
Bore Diameter1-7/6 in
-
Bore TypeCylindrical
-
Overall Height3-5/8 in
-
Overall Length6-9/16 in
