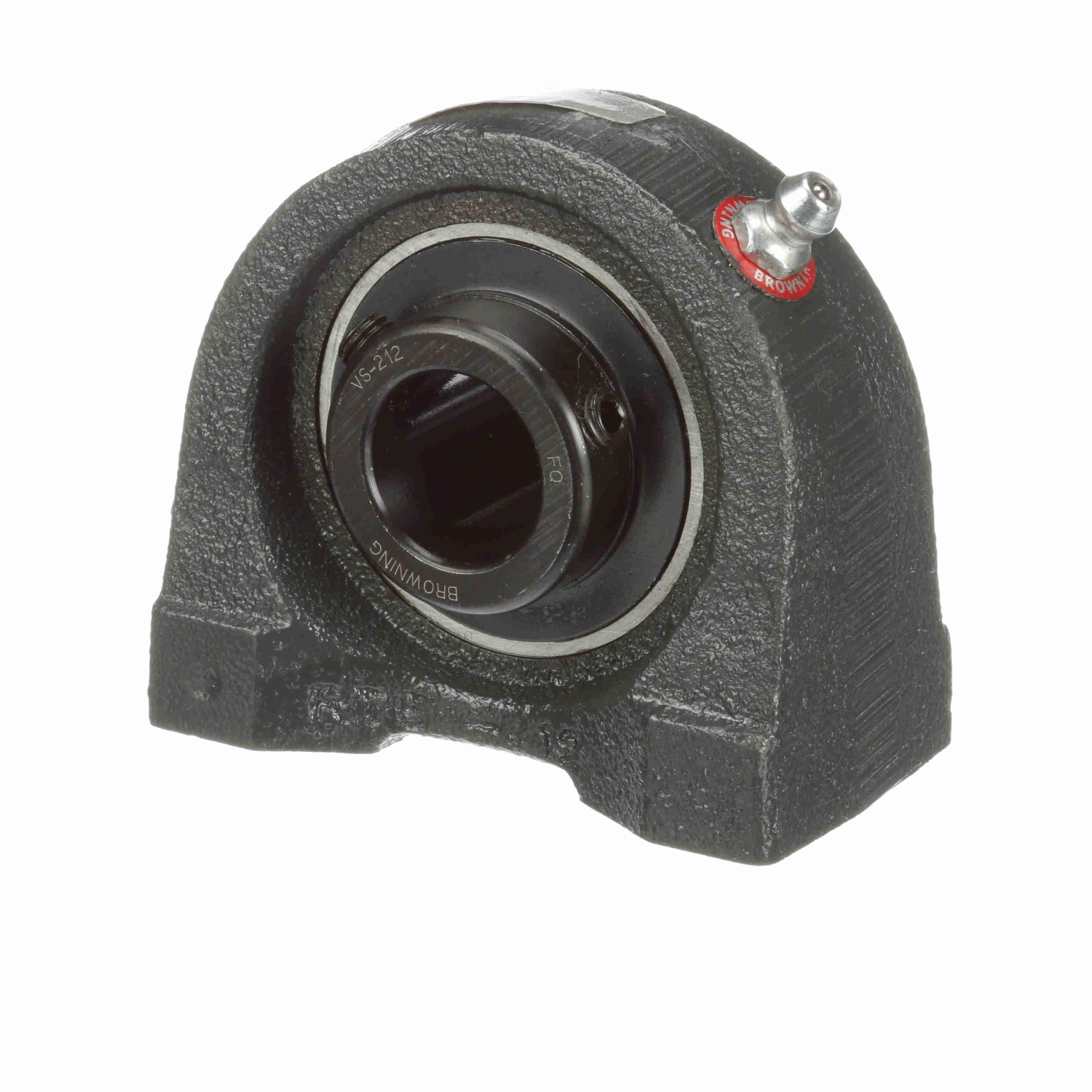

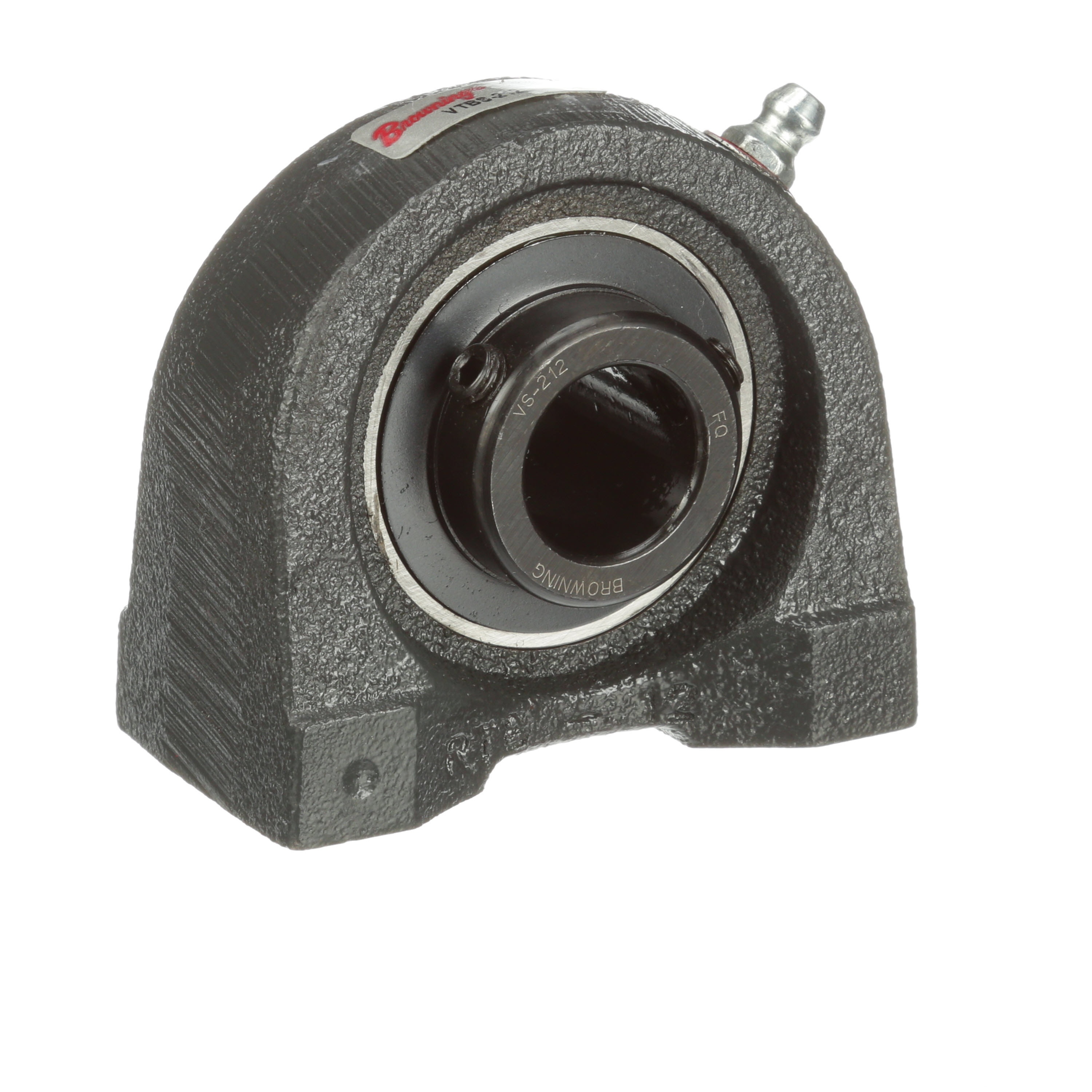

Browning® 767436 VTBS 200 Normal Duty Pillow Block Ball Bearing, 3/4 in Dia Bore, 2 in L Bolt Center-to-Center, 1-5/16 in Base to Bore Centerline, 2-7/8 in OAL x 2-9/16 in OAH
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric, or BOA concentric locking collar. The contact seal, with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction. Depending on your preference, these bearings are available in inch and metric bore with a wide variety of cast iron, stamped steel or rubber mount housings or specific industry solutions as illustrated on the pages to follow.
-
BrandBrowning®
-
UPC662289530106
-
Manufacturer Part Number767436
-
CountryUSA
-
Load Capacity2611 lb Dynamic/1444 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating-20 to 200 deg F
-
FinishGray Painted
-
MaterialCast Iron
-
Maximum Speed6500 rpm
-
TypeNormal Duty
-
Mounting TypeTapped Base
-
Seal TypeSingle Lip Contact with Flinger
-
SeriesVTBS 200
-
Base Width1-1/2 in
-
Base to Bore Centerline1-5/16 in
-
Bolt Center-to-Center Length2 in
-
Bore Diameter3/4 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height2-9/16 in
-
Overall Length2-7/8 in
- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
- Positive contact molded nitrile rubber contact seal with an auxiliary flinger element standard
- An anti-rotation rivet prevents outer ring creep or rotation, within the housing
- Spherical outer diameter bearing insert
- Alemite fitting lubrication
- Nylon retainer
- Powder coat epoxy cast iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal and flinger
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 100936093 |
| Applied Industrial Technologies | 100936093 |
-
Alternative Part NumberVTBS-212
-
UNSPSC31171515
-
Package DescriptionEACH
-
Standards/ApprovalsANSI/ABMA STD 9
-
Specification Sheet
-
Instruction/Installation Manual
