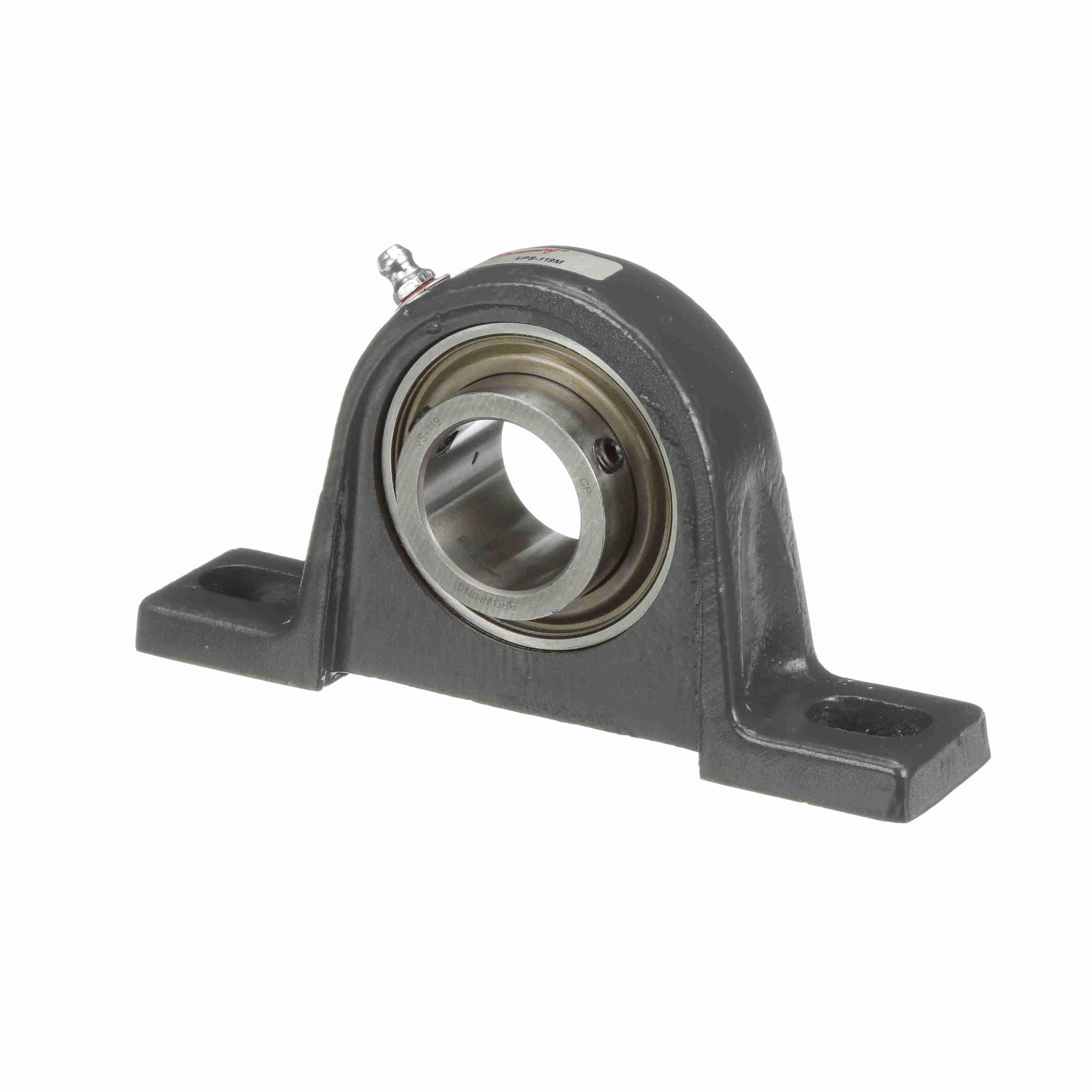

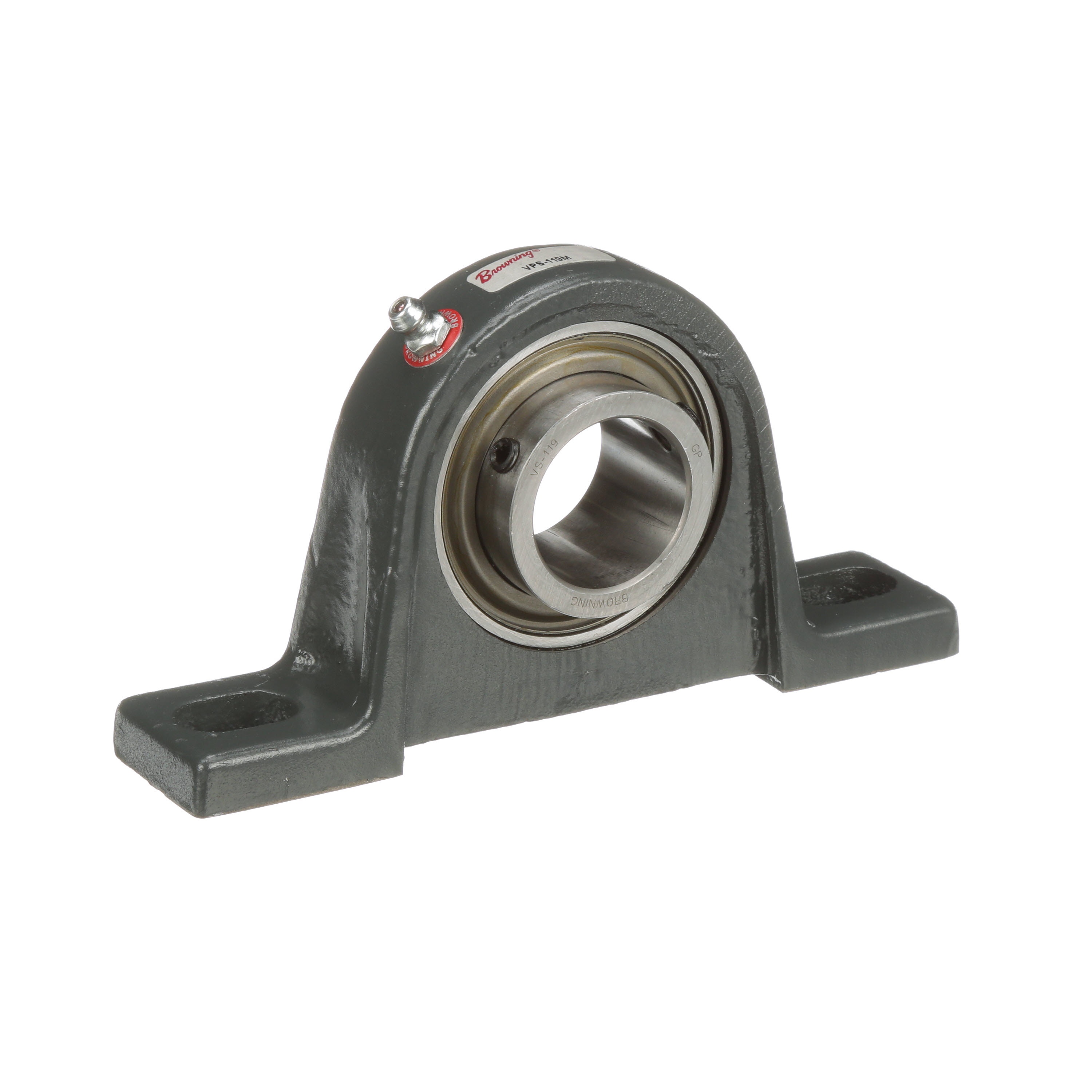

Browning® 767743 VPS 100 Intermediate Duty Pillow Block Ball Bearing, 1-3/16 in Dia Bore, 4-3/8 to 5-1/16 in L Bolt Center-to-Center, 1-11/16 in Base to Bore Centerline, 5-15/16 in OAL x 3-5/32 in OAH
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric, or BOA concentric locking collar. The contact seal, with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction. Depending on your preference, these bearings are available in inch and metric bore with a wide variety of cast iron, stamped steel or rubber mount housings or specific industry solutions as illustrated on the pages to follow.
-
BrandBrowning®
-
UPC662289543380
-
Manufacturer Part Number767743
-
CountryUSA
-
Load Capacity4381 lb Dynamic/2567 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating-20 to 200 deg F
-
FinishGray Painted
-
MaterialDuctile Iron
-
Maximum Speed3000 rpm
-
TypeIntermediate Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeSingle Lip
-
SeriesVPS 100
-
Base Width1-5/16 in
-
Base to Bore Centerline1-11/16 in
-
Bolt Center-to-Center Length4-3/8 to 5-1/16 in
-
Bore Diameter1-3/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height3-5/32 in
-
Overall Length5-15/16 in
- Powder coat epoxy malleable iron housing
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
- Positive contact molded nitrile rubber contact seal
- An anti-rotation rivet prevents outer ring creep or rotation, within the housing
- Spherical outer diameter bearing insert
- 52100 steel insert
- Alemite fitting lubrication
- Nylon retainer
- Powder coat epoxy malleable iron housing
- Powder coat epoxy malleable iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal
-
Alternative Part NumberVPS-119M
-
UNSPSC31171515
-
Package DescriptionEACH
-
Standards/ApprovalsANSI/ABMA STD 9
-
Specification Sheet
-
Instruction/Installation Manual
