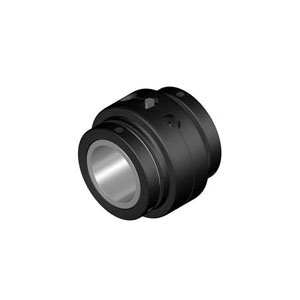

Sealmaster 2-3/4"-ID INSERT BEARINGS SEA ERCI-212
The heart of the RPB is the unitized, self-aligning cartridge insert with integral seals and double locking collars. The replaceable cartridge insert can accommodate +/- 3 deg static misalignment and is factory sealed and lubricated. The cartridges fit all housing styles and are field replaceable for quick change out. RCI outer races are black oxide treated.
-
BrandSealmaster®
-
UPC662288479796
-
Manufacturer Part Number550162
-
CountryUSA
-
Load Capacity9630 lb Dynamic
-
Temperature Rating225 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed1750 rpm
-
TypeExpansion Straight Bore
-
Seal MaterialFelt
-
Width4-1/2 in
-
SeriesERCI
-
Bearing Material52100 Steel
-
Outside Diameter5.374 in
-
Bore Diameter2-3/4 in
- Race-mounted felt-lined flinger seal
- Double-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews
- Metal land riding retainer type
-
Alternative Part NumberERCI 212
-
UNSPSC31171536
-
Package DescriptionEACH
-
Standards/ApprovalsRBEC 1 Standard
-
