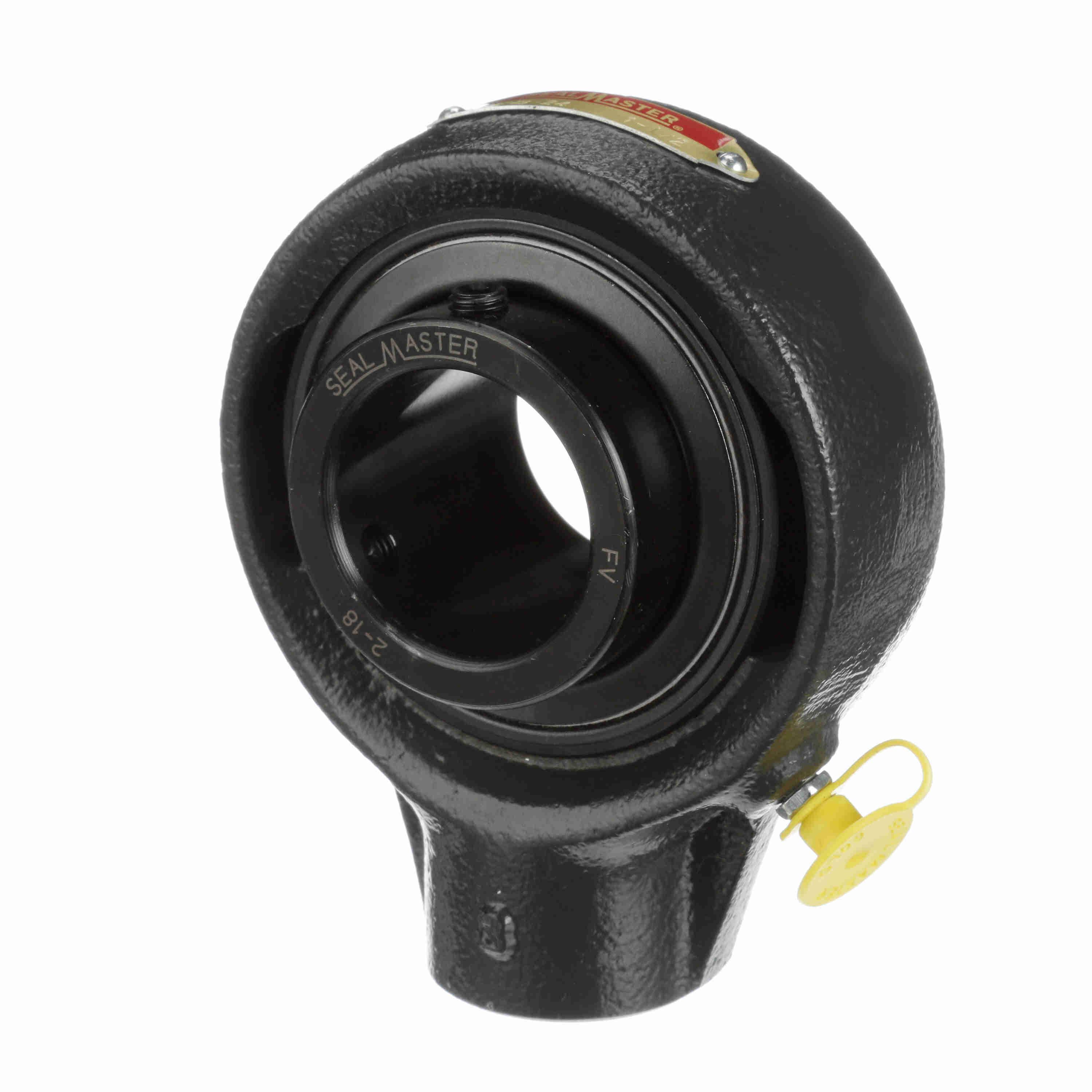

Sealmaster® 700399 SEHB Non-Expansion Standard-Duty Hanger Ball Bearing Unit, 1-1/2 in Dia Bore, 3-3/4 in OD, 1-15/16 in W, Cast Iron Bearing, Set Screw Collar Locking
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing, and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing and lubrication options or industry specific solutions.
-
BrandSealmaster®
-
UPC662461003084
-
Manufacturer Part Number700399
-
CountryUSA
-
Load Capacity7340 lb Dynamic/4467 lb Static
-
Locking TypeSet Screw Collar
-
Cage MaterialBrass
-
Temperature Rating-20 to 220 deg F
-
FinishUncoated
-
Maximum Speed4150 rpm
-
TypeNon-Expansion Standard-Duty
-
Seal MaterialFelt
-
Width1-15/16 in
-
SeriesSEHB
-
Bearing MaterialCast Iron
-
Outside Diameter3-3/4 in
-
Bore Diameter1-1/2 in
- Wide outer ring
- Zone hardened inner race
- 52100 steel insert
- GoldPlex-HP grease
- Round/straight bore
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
-
Alternative Part NumberSEHB-24
-
UNSPSC31171515
-
Package DescriptionEACH
-
Specification Sheet
-
Instruction/Installation Manual
