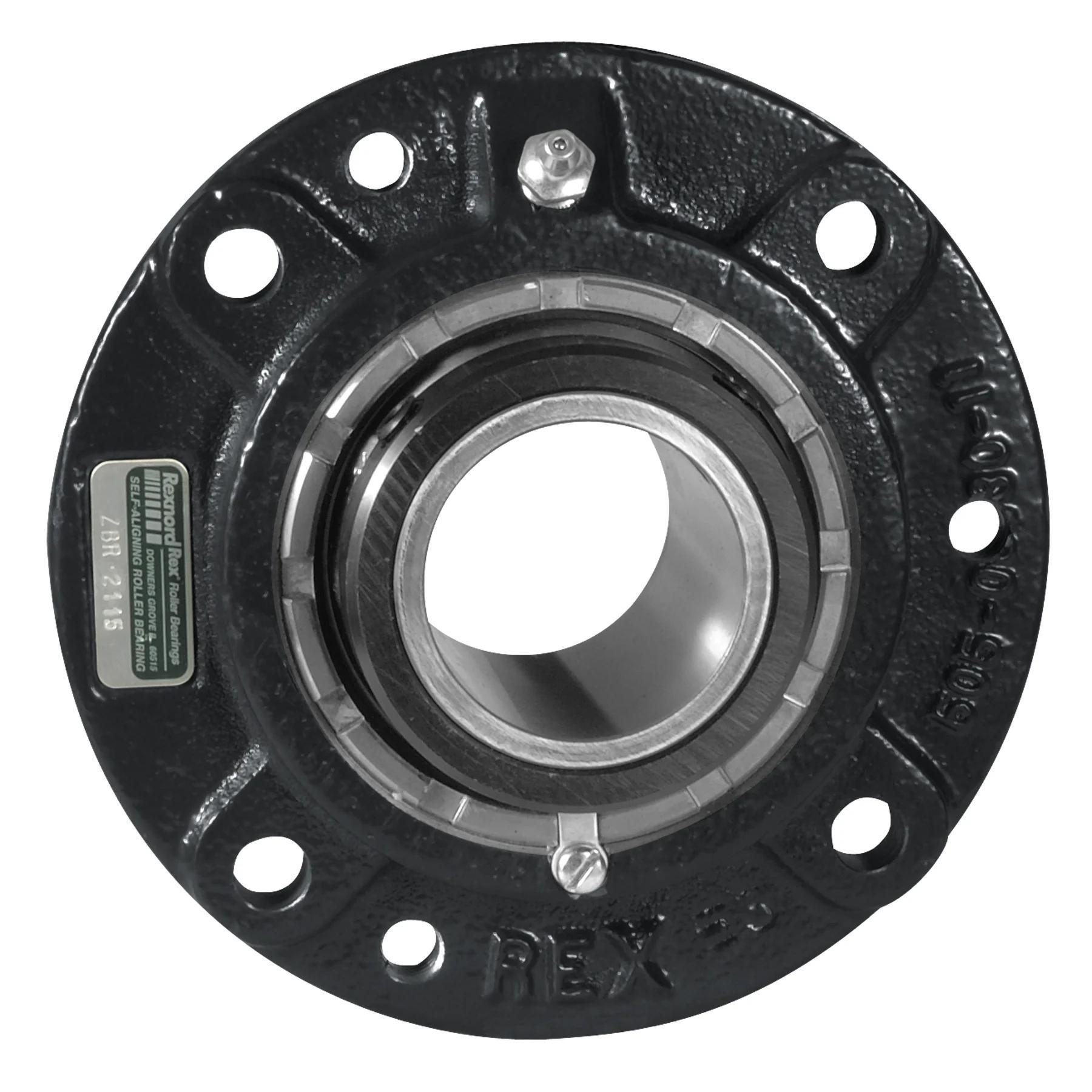

Rexnord® 10424910 2000 Fixed Normal Duty Flanged Cartridge Block Spherical Roller Bearing, 1-3/4 in Dia Bore, 3-3/8 in L Bolt Center-to-Center, 2-9/16 in Dia Bolt Circle, 4-Bolt Round Flange Mount, 6-1/8 in OAL/Dia
Rex® 10424910 2000 Fixed Normal Duty Flanged Cartridge Block Spherical Roller Bearing, 1-3/4 in Dia Bore, 3-3/8 in L Bolt Center-to-Center, 2-9/16 in Dia Bolt Circle, 4-Bolt Round Flange Mount, 6-1/8 in OAL/Dia
-
BrandRexnord®
-
UPC698210596897
-
Manufacturer Part Number10424910
-
CountryUSA|Canada
-
Load Capacity27820 lb Dynamic/28700 Static
-
Locking DeviceSingle Set Screw Collar
-
Temperature Rating225 deg F
-
FinishPowder Coated
-
Flange Mounting Type4-Bolt Round
-
Maximum Speed4450 rpm
-
TypeFixed Normal Duty
-
Seal MaterialMetal
-
Series2000
-
Bolt Center-to-Center Length3-3/8 in
-
Bolt Circle Diameter2-9/16 in
-
Bore Diameter1-3/4 in
-
Overall Depth3-1/8 in
-
Overall Length/Diameter6-1/8 in
- Easy bearing clearance adjustment
- Replaceable bearing
- Pre-lubricated with standard grease for normal operation
- Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
- Simplest installation
- Most economical
- Type Z clearance seal
- Cast iron housing
- Misalignment capabilities total of 4 deg
- Factory set clearance and lubrication
-
Alternative Part NumberZBR2112
-
UNSPSC31171535
-
Package DescriptionEACH
-
Standards/ApprovalsANSI/ABMA STD 9
-
Warranty1 Year
-
Instruction/Installation Manual
-
Catalog
