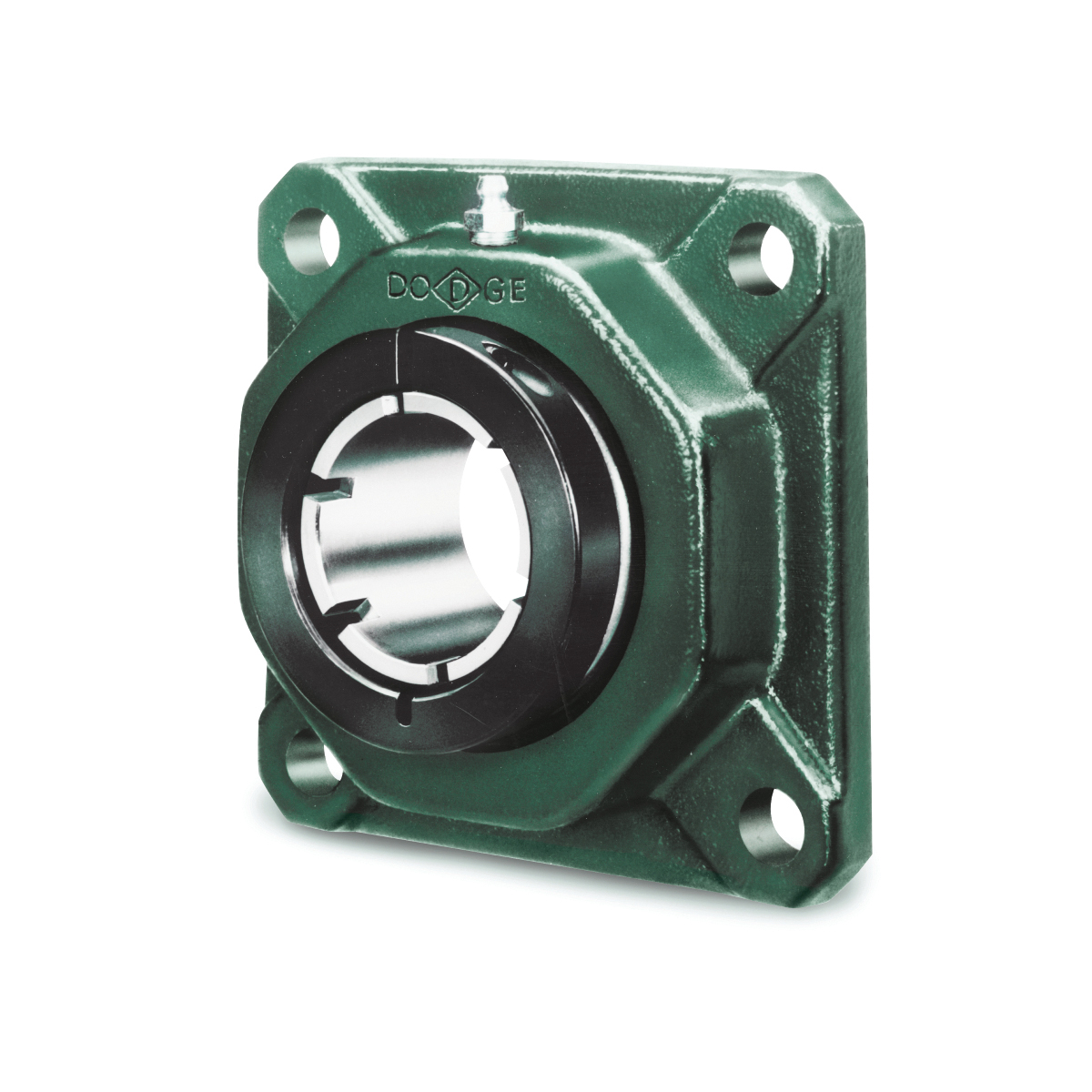

F4B-SXR-012 Dodge® 131104 204 Series Normal Duty Non-Expansion Ball Bearing Unit, 3/4 in Dia Bore, 2-1/2 in L Bolt Center-to-Center, 4-Bolt Base Flange Mount, 3.38 in OAL/Dia
F4B-SXR-012 Dodge® 131104 204 Series Normal Duty Non-Expansion Ball Bearing Unit, 3/4 in Dia Bore, 2-1/2 in L Bolt Center-to-Center, 4-Bolt Base Flange Mount, 3.38 in OAL/Dia
-
BrandDodge®
-
UPC782475116942
-
Manufacturer Part Number131104
-
CountryUSA
-
Load Capacity2899 lb Dynamic/1482 lb Static
-
Locking DeviceEccentric Collar
-
FinishPowder Coated
-
Flange Mounting Type4-Bolt Base
-
Maximum Speed7500 rpm
-
TypeNormal Duty Non-Expansion
-
Seal MaterialNitrile Rubber
-
Series204
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length2-1/2 in
-
Bore Diameter3/4 in
-
Overall Depth1.66 in
-
Overall Height3.38 in
-
Overall Length/Diameter3.38 in
- DualGuard™ seal with rubberized flinger is standard
- Precision hardened and honed-series 200 mounted ball bearings in globally interchangeable, ISO dimensions
- Wide inner ring design
- Dodge® DualGuard™ land-riding, positive contact seal
- Stronger and flexible ball cage
- Simplified anti-rotation device
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 101926507 |
| Motion Industries | 00562583 |
-
Alternative Part NumberF4B-SXR-012
-
UNSPSC31171504
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
Warranty18 Months
-
