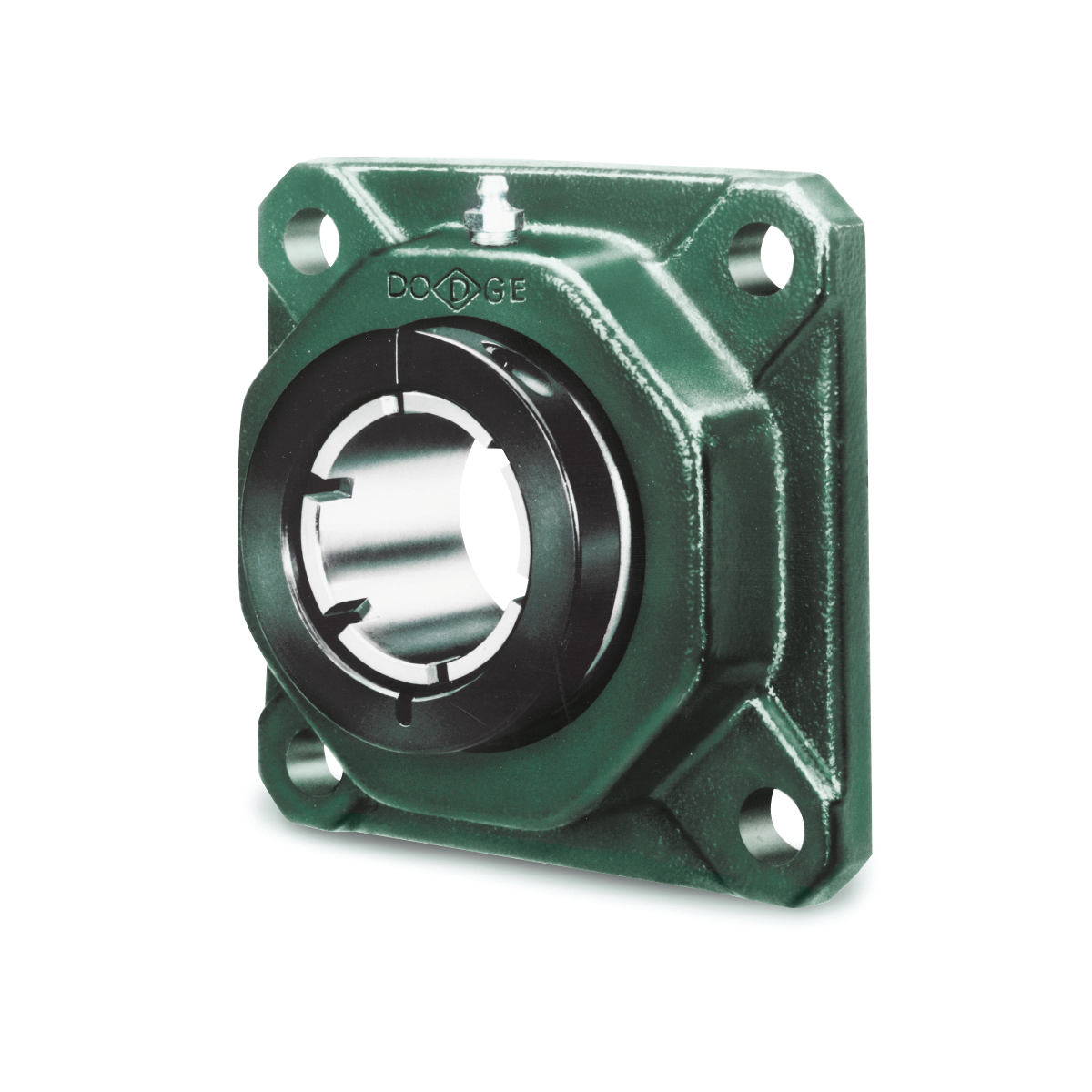

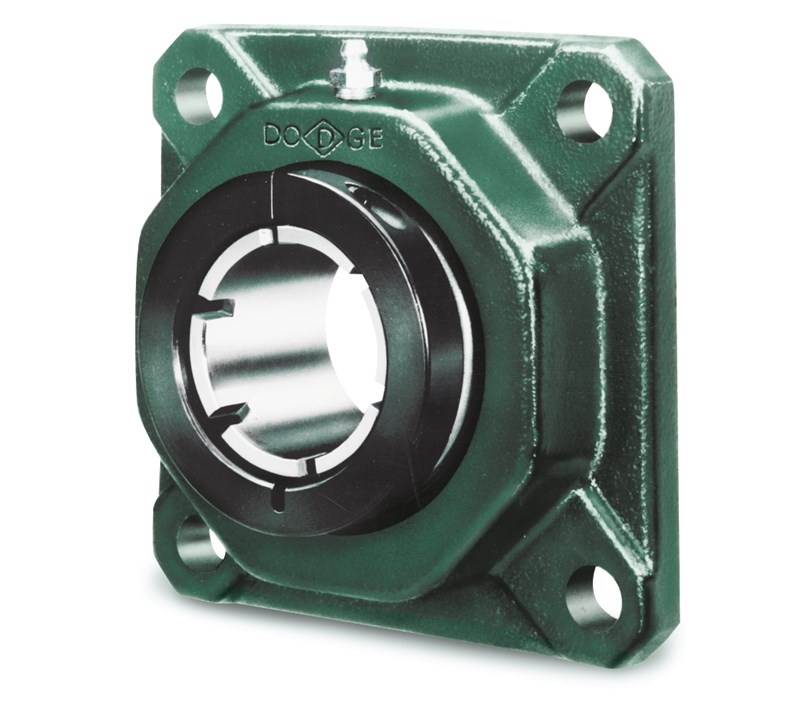

F4B-SXR-25M Dodge® 125668 205 Series Normal Duty Non-Expansion Ball Bearing Unit, 25 mm Dia Bore, 69.9 mm L Bolt Center-to-Center, 4-Bolt Base Flange Mount, 95.3 mm OAL/Dia
F4B-SXR-25M Dodge® 125668 205 Series Normal Duty Non-Expansion Ball Bearing Unit, 25 mm Dia Bore, 69.9 mm L Bolt Center-to-Center, 4-Bolt Base Flange Mount, 95.3 mm OAL/Dia
-
BrandDodge®
-
UPC782475796168
-
Manufacturer Part Number125668
-
CountryUSA
-
Load Capacity13995 N Dynamic/7869 N Static
-
Locking DeviceEccentric Collar
-
FinishPowder Coated
-
Flange Mounting Type4-Bolt Base
-
Maximum Speed7500 rpm
-
TypeNormal Duty Non-Expansion
-
Seal MaterialNitrile Rubber
-
Series205
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length69.9 mm
-
Bore Diameter25 mm
-
Overall Depth41.9 mm
-
Overall Height95.3 mm
-
Overall Length/Diameter95.3 mm
- DualGuard™ seal with rubberized flinger is standard
- Precision hardened and honed-series 200 mounted ball bearings in globally interchangeable, ISO dimensions
- Wide inner ring design
- Dodge® DualGuard™ land-riding, positive contact seal
- Stronger and flexible ball cage
- Simplified anti-rotation device
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 101839338 |
| Motion Industries | 03710259 |
-
Alternative Part NumberF4B-SXR-25M
-
UNSPSC31171504
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
Warranty18 Months
-
Warranty Information
-
Catalog
-
Instruction/Installation Manual
-
Specification Sheet
-
Owners/User Manual
