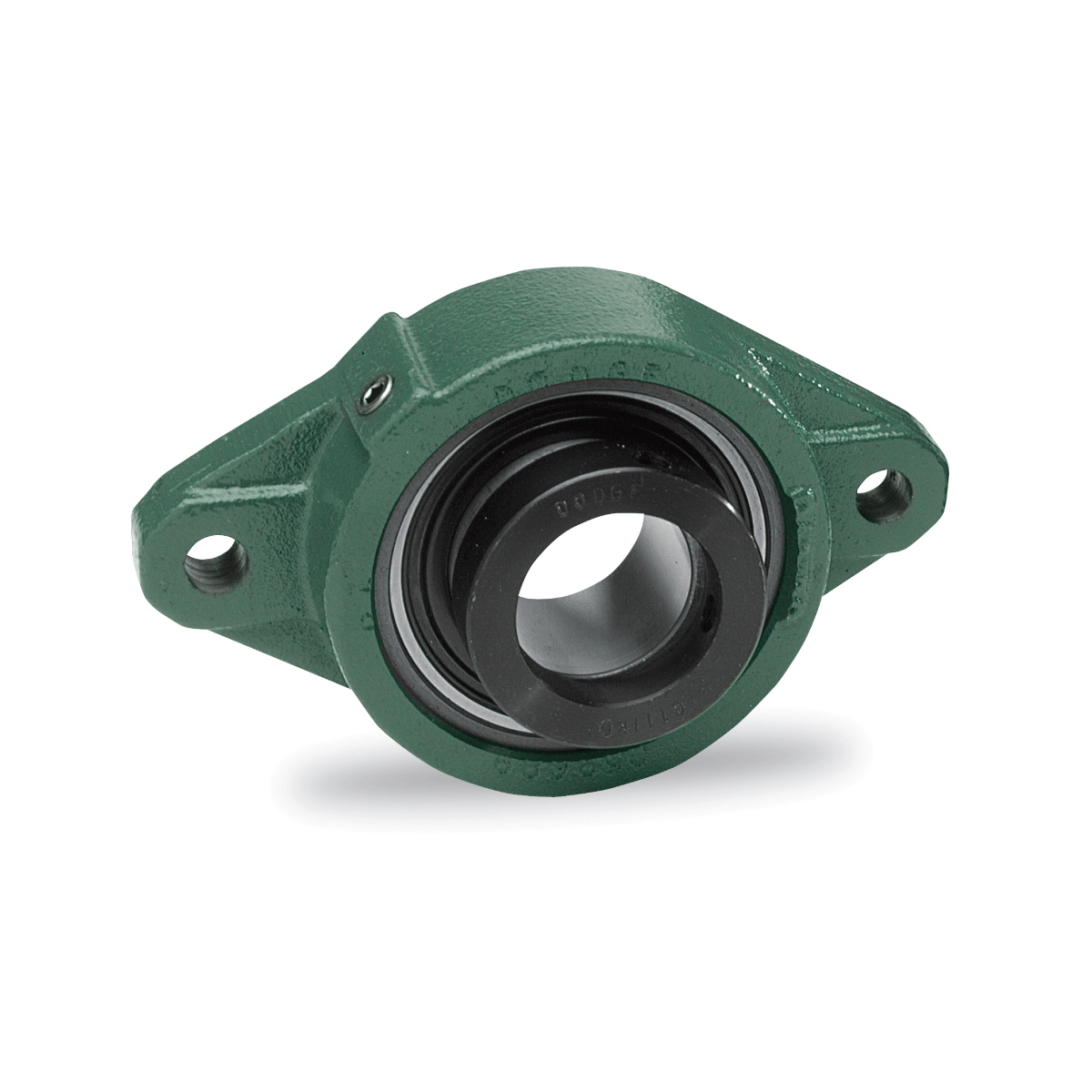

F2B-SXR-111 Dodge® 131071 209 Series Normal Duty Non-Expansion Ball Bearing Unit, 1-11/16 in Dia Bore, 5.84 in L Bolt Center-to-Center, 2-Bolt Base Flange Mount, 7.06 in OAL/Dia
F2B-SXR-111 Dodge® 131071 209 Series Normal Duty Non-Expansion Ball Bearing Unit, 1-11/16 in Dia Bore, 5.84 in L Bolt Center-to-Center, 2-Bolt Base Flange Mount, 7.06 in OAL/Dia
-
BrandDodge®
-
UPC782475116881
-
Manufacturer Part Number131071
-
CountryUSA
-
Load Capacity7891 lb Dynamic/4906 lb Static
-
Locking DeviceEccentric Collar
-
FinishPowder Coated
-
Flange Mounting Type2-Bolt Base
-
Maximum Speed5000 rpm
-
TypeNormal Duty Non-Expansion
-
Seal MaterialNitrile Rubber
-
Series209
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length5.84 in
-
Bore Diameter1-11/16 in
-
Overall Depth2.18 in
-
Overall Height4.38 in
-
Overall Length/Diameter7.06 in
- DualGuard™ seal with rubberized flinger is standard
- Precision hardened and honed-series 200 mounted ball bearings in globally interchangeable, ISO dimensions
- Wide inner ring design
- Dodge® DualGuard™ land-riding, positive contact seal
- Stronger and flexible ball cage
- Simplified anti-rotation device
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100939937 |
| Motion Industries | 00564147 |
-
Alternative Part NumberF2B-SXR-111
-
UNSPSC31171504
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
WarrantyLimited
-
