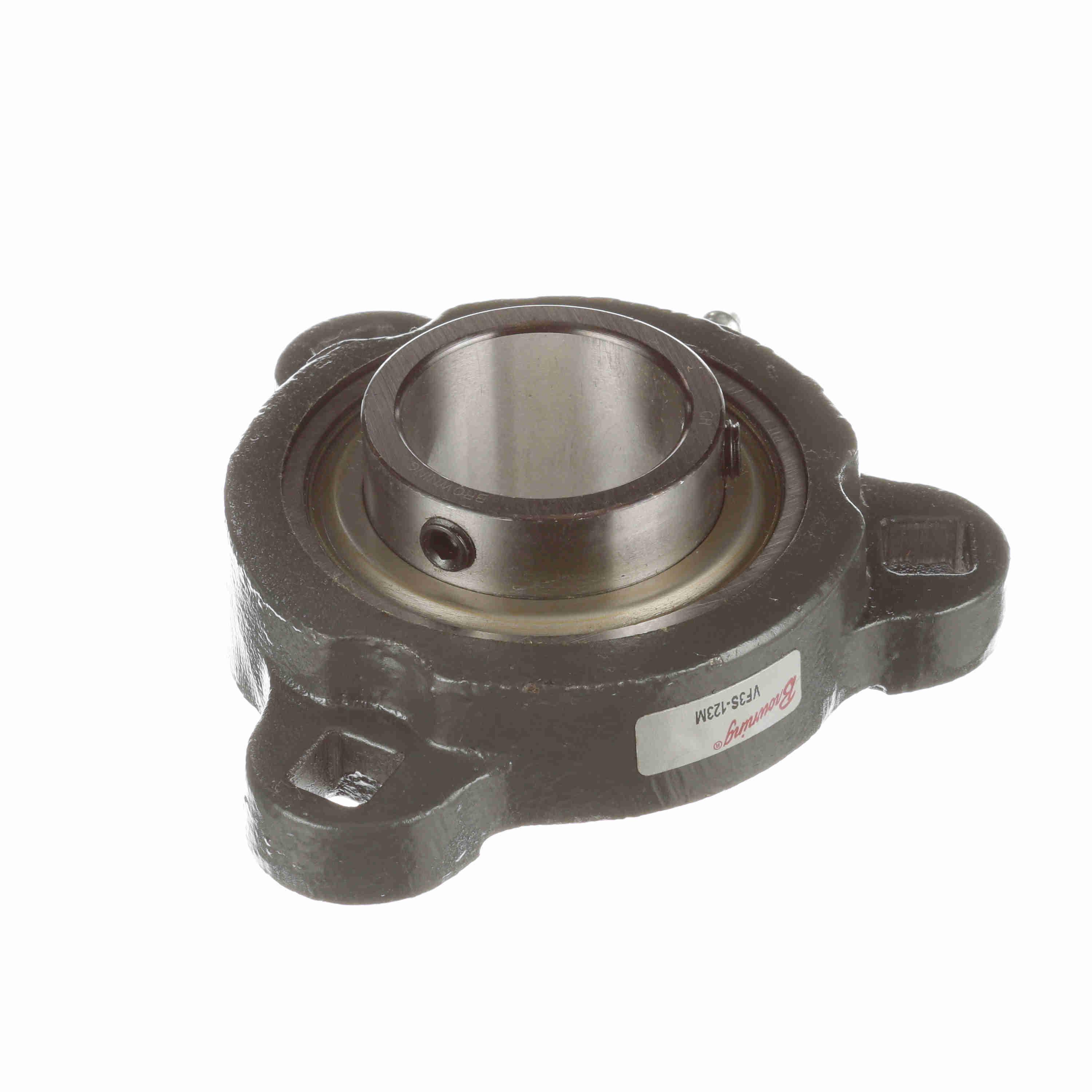

Browning® 767756 VF3S 100-M Light Duty Non-Expansion Round/Straight Bore Flange Mount Ball Bearing Unit, 1-7/16 in Dia Bore, 3-15/16 in Dia Bolt Circle, 3-Bolt Flange Mount, 4-13/16 in OAL/Dia
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289543250
-
Manufacturer Part Number767756
-
CountryUSA
-
Load Capacity5782 lb Dynamic/3493 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating-20 to 200 deg F
-
FinishGray Painted
-
Flange Mounting Type3-Bolt
-
Maximum Speed2500 rpm
-
TypeLight Duty Non-Expansion Round/Straight Bore
-
Seal MaterialNitrile Rubber
-
SeriesVF3S 100-M
-
Bearing MaterialSteel
-
Bolt Circle Diameter3-15/16 in
-
Bore Diameter1-7/16 in
-
Overall Depth1-25/64 in
-
Overall Length/Diameter4-13/16 in
- Powder coat epoxy malleable iron housing
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal
- 52100 black oxide coating steel insert
- Powder coat epoxy malleable iron housing
- Powder coat epoxy malleable iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal
-
Alternative Part NumberVF3S-123M
-
UNSPSC31171504
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
