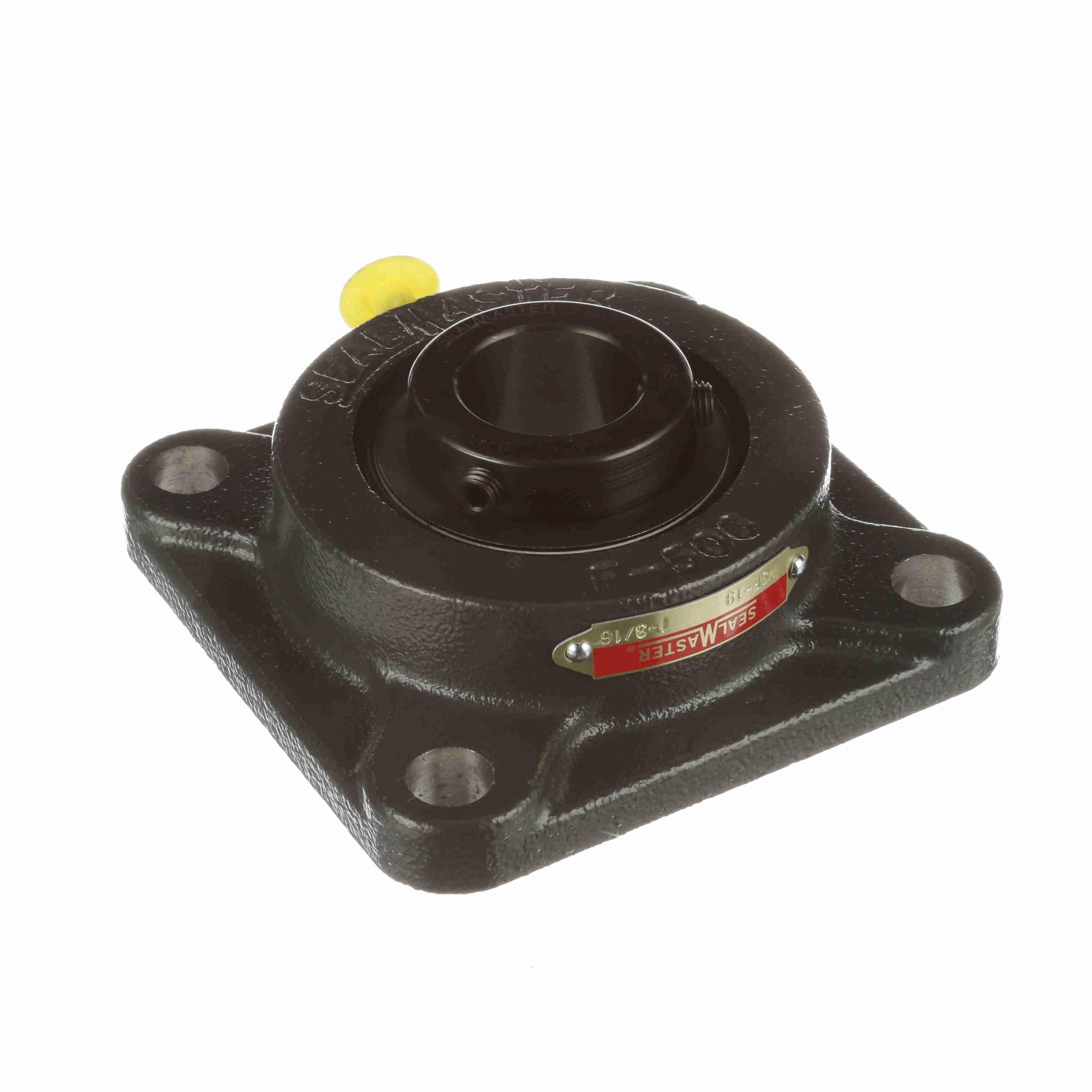

Sealmaster® 701943 MSF Medium Duty Non-Expansion Round Straight Bore Flange Mount Ball Bearing Unit, 1-3/16 in Dia Bore, 3-5/8 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 4-5/8 in OAL/Dia
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
-
BrandSealmaster®
-
UPC662461014523
-
Manufacturer Part Number701943
-
CountryUSA
-
Load Capacity5782 lb Dynamic/3493 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating-20 to 250 deg F
-
FinishUncoated
-
Flange Mounting Type4-Bolt
-
Maximum Speed4650 rpm
-
TypeMedium Duty Non-Expansion Round Straight Bore
-
Seal MaterialFelt
-
SeriesMSF
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length3-5/8 in
-
Bore Diameter1-3/16 in
-
Overall Depth1-3/4 in
-
Overall Height4-5/8 in
-
Overall Length/Diameter4-5/8 in
- Wide outer ring
- The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
- Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
- GoldPlex-HP grease
- 52100 black oxide coated steel bearing
- Stamped steel rubber mounted flange
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120 deg spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
-
Alternative Part NumberMSF-19
-
UNSPSC31171504
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
