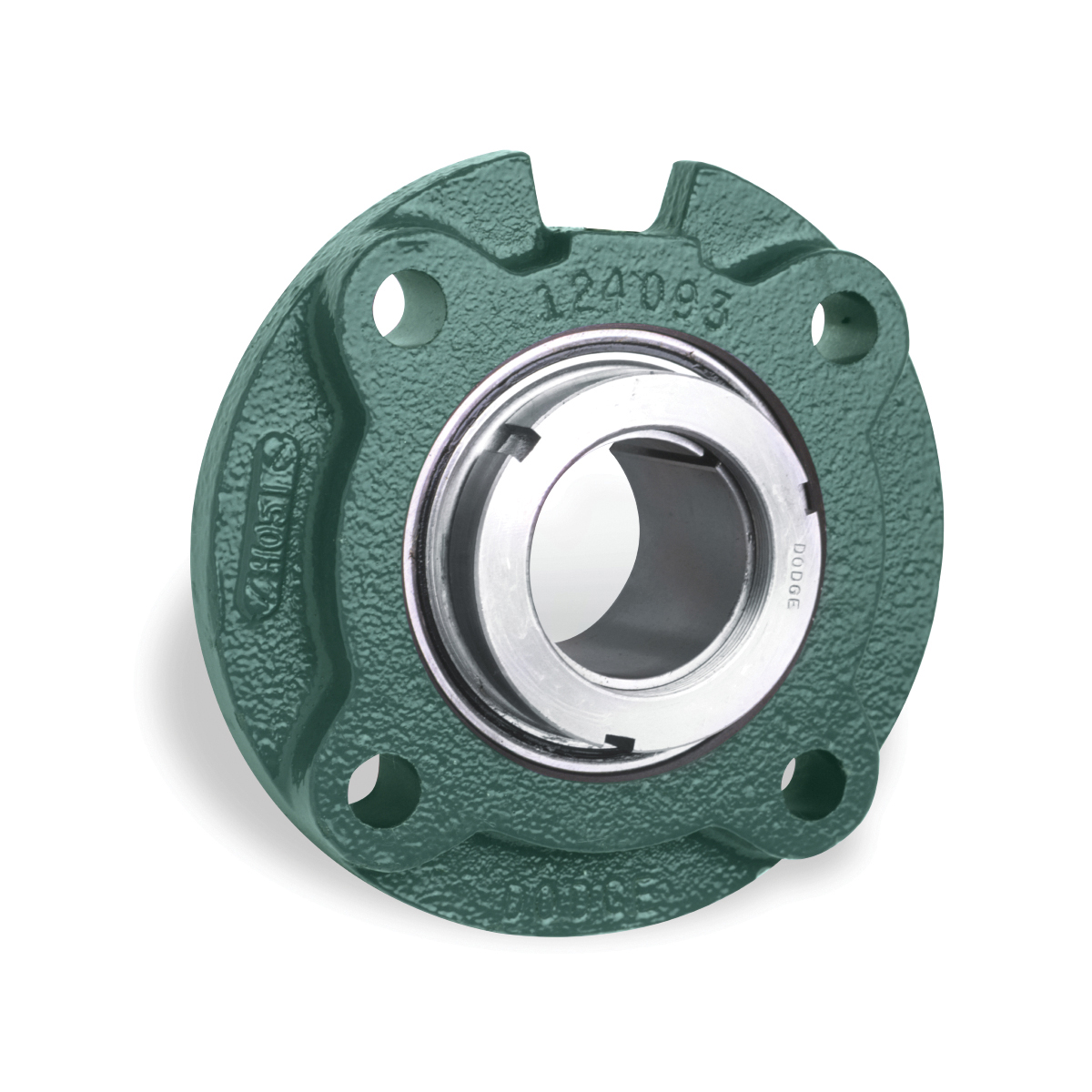

Dodge® 062373 218 Medium Duty Non-Expansion Ball Bearing Cartridge Unit, 3-7/16 in Dia Bore, 8.63 in Dia Bolt Circle, 4-Bolt Base/Piloted Flange Mount, 10-1/4 in OAL/Dia
Dodge® 062373 218 Medium Duty Non-Expansion Ball Bearing Cartridge Unit, 3-7/16 in Dia Bore, 8.63 in Dia Bolt Circle, 4-Bolt Base/Piloted Flange Mount, 10-1/4 in OAL/Dia
-
BrandDodge®
-
UPC782475900275
-
Manufacturer Part Number062373
-
CountryUSA
-
Load Capacity21451 lb Dynamic/16641 lb Static
-
Locking DeviceD-LOK® Concentric Clamp Collar
-
FinishPowder Coated
-
Flange Mounting Type4-Bolt Base/Piloted
-
Maximum Speed2000 rpm
-
TypeMedium Duty Non-Expansion
-
Seal MaterialNitrile Rubber
-
Series218
-
Bearing MaterialSteel
-
Bolt Circle Diameter8.63 in
-
Bore Diameter3-7/16 in
-
Overall Depth3.53 in
-
Overall Length/Diameter10-1/4 in
- DualGuard™ seal with rubberized flinger is standard
- Precision hardened and honed inner and outer rings
- New rugged housing design
- Wide inner ring design
- Dodge® DualGuard™ positive contact seal including rubberized flingers
- Stronger and flexible ball retainer
- Simplified anti-rotation device
- FDA/USDA lubricant and other special lubricants
- Interchangeable mounting dimensions with most competitive products
- Concentric clamp collar locks the bearing to the shaft by tightening a single allen wrench cap screw
- Anti-rotation device prevents insert rotation associated with heavy loads, vibration, unbalanced loads and high-speed applications
- +/-2 deg static misalignment
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 101851564 |
| Motion Industries | 02617494 |
-
Alternative Part NumberFC-DLM-307
-
UNSPSC31171504
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
WarrantyLimited
-
Specification Sheet
-
Owners/User Manual
-
Warranty Information
-
Catalog
-
Instruction/Installation Manual
