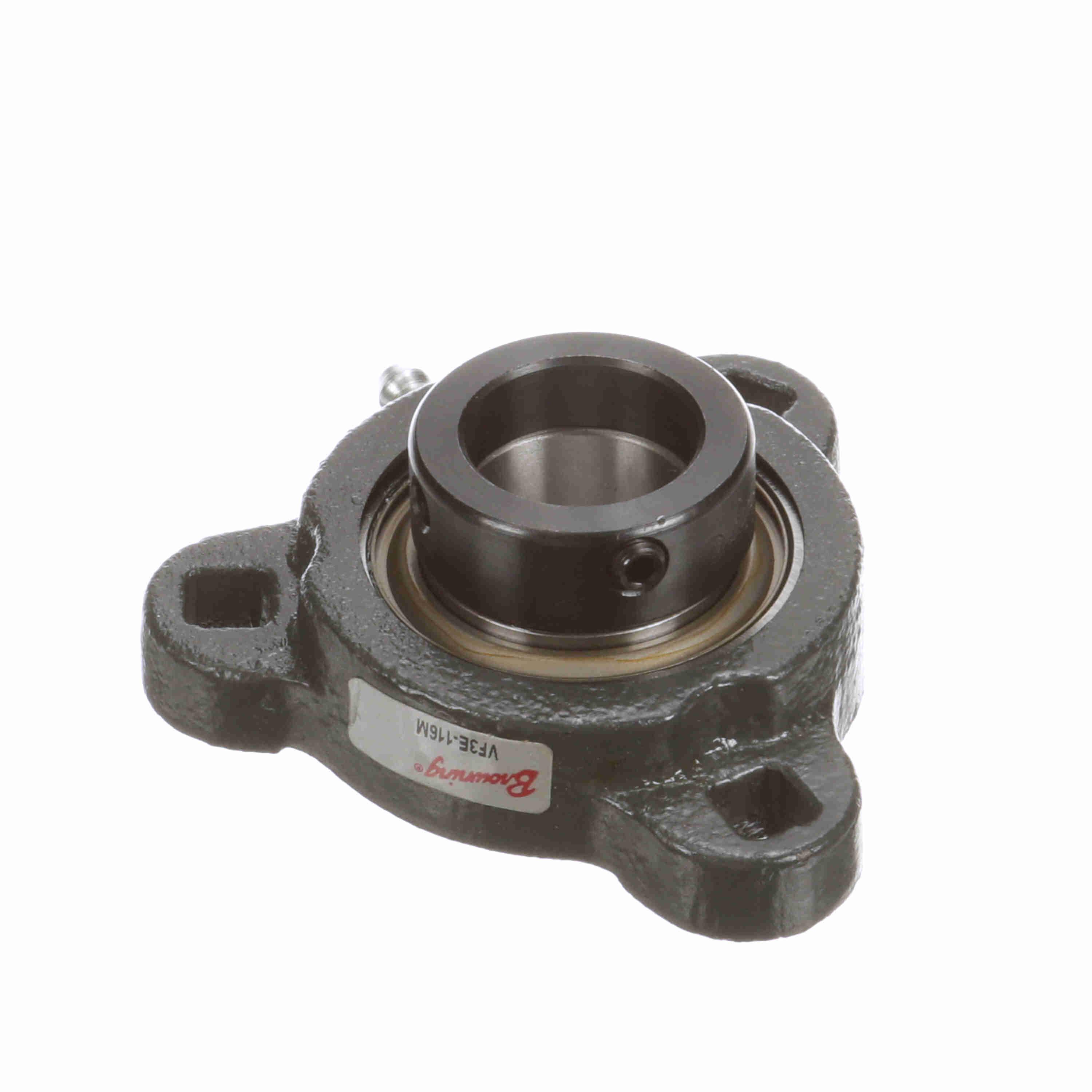

Browning® 767776 VF3E100M Intermediate Duty Non-Expansion Round/Straight Bore Flange Mount Ball Bearing Unit, 1 in Dia Bore, 3 in L Bolt Center-to-Center, 3-Bolt Flange Mount
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289074891
-
Manufacturer Part Number767776
-
CountryUSA
-
Load Capacity2801 lb Dynamic/1651 lb Static
-
Locking DeviceEccentric Collar
-
Temperature Rating-20 to 200 deg F
-
FinishGray Painted
-
Flange Mounting Type3-Bolt
-
Maximum Speed3500 rpm
-
TypeIntermediate Duty Non-Expansion Round/Straight Bore
-
Seal MaterialNitrile Rubber
-
SeriesVF3E100M
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length3 in
-
Bore Diameter1 in
-
Overall Depth1-11/32 in
- Positive contact molded nitrile rubber single lip contact seal
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Zone hardened inner race
- Powder coat epoxy malleable iron housing
- Eccentric locking designed for locking in direction of rotation
-
Alternative Part NumberVF3E-116M
-
UNSPSC31171504
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
