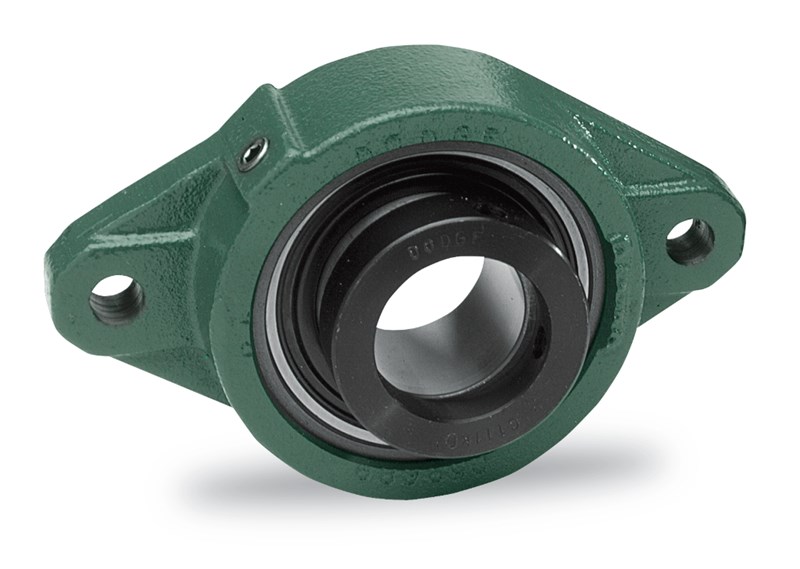

Dodge® 124173 205 Normal Duty Non-Expansion Single Lip Flange Mount Ball Bearing Unit, 1 in Dia Bore, 3.89 in L Bolt Center-to-Center, 2-Bolt Base Flange Mount, 4.88 in OAL/Dia
Dodge® 124173 205 Normal Duty Non-Expansion Single Lip Flange Mount Ball Bearing Unit, 1 in Dia Bore, 3.89 in L Bolt Center-to-Center, 2-Bolt Base Flange Mount, 4.88 in OAL/Dia
-
BrandDodge®
-
UPC782475114511
-
Manufacturer Part Number124173
-
CountryUSA
-
Load Capacity3146 lb Dynamic/1769 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating225 to 400 deg F
-
FinishPowder Coated
-
Flange Mounting Type2-Bolt Base
-
Maximum Speed7500 rpm
-
TypeNormal Duty Non-Expansion Single Lip
-
Seal MaterialNitrile Rubber
-
Series205
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length3.89 in
-
Bore Diameter1 in
-
Overall Depth1.37 in
-
Overall Height2-3/4 in
-
Overall Length/Diameter4.88 in
- 65 deg set screw locking system
- Precision-hardened and honed inner and outer rings
- Wide inner ring design
- Cooler operation for longer grease life
- Patented dual guard seal
- Stronger and more flexible cage
- Simplified anti-rotation device
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 100733529 |
| Motion Industries | 00564343 |
-
Alternative Part NumberF2B-SC-100
-
UNSPSC31171504
-
Package DescriptionEACH
-
WarrantyLimited
-
Specification Sheet
-
Owners/User Manual
-
Warranty Information
-
Catalog
