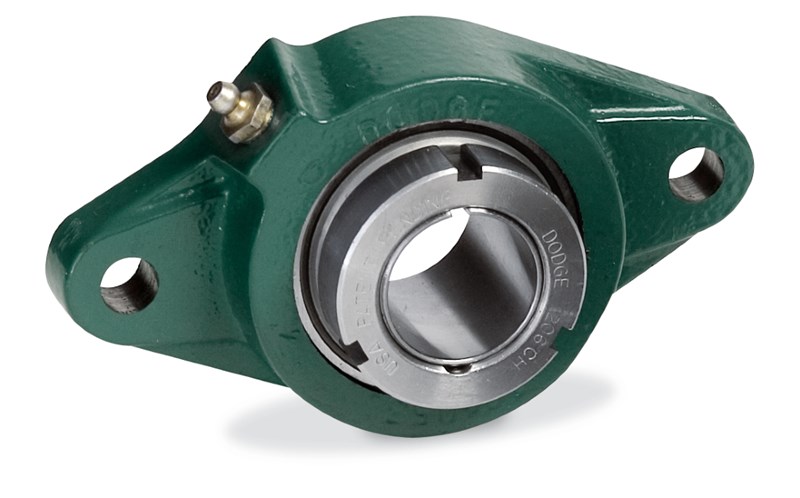

F2B-GT-107 Dodge® 129312 207 Normal Duty Non-Expansion Single Lip Flange Mount Ball Bearing Unit, 1-7/16 in Dia Bore, 5.12 in L Bolt Center-to-Center, 2-Bolt Base Flange Mount, 6.13 in OAL/Dia
With its patented pull/push adapter system, fully concentric 360 deg inner ring, and completely interchangeable housing design, the Dodge® Grip Tight® adapter ball bearing is the easy-on/easy-off solution for damage-free shafting, reduced vibration and greater cost/inventory savings.
-
BrandDodge®
-
UPC782475886395
-
Manufacturer Part Number129312
-
CountryUSA
-
Load Capacity5759 lb Dynamic/3461 lb Static
-
Locking DeviceGrip-Tight® Adapter Mounted
-
Temperature Rating225 to 400 deg F
-
FinishUncoated
-
Flange Mounting Type2-Bolt Base
-
Maximum Speed9500 rpm
-
TypeNormal Duty Non-Expansion Single Lip
-
Seal MaterialNitrile Rubber
-
Series207
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length5.12 in
-
Bore Diameter1-7/16 in
-
Overall Depth1.79 in
-
Overall Height3-3/4 in
-
Overall Length/Diameter6.13 in
- Wide inner ring design
- Thin wall adapter locking
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 100949764 |
| Motion Industries | 02482290 |
-
Alternative Part NumberF2B-GT-107
-
UNSPSC31171504
-
Package DescriptionEACH
-
WarrantyLimited
-
Catalog
-
Instruction/Installation Manual
-
Warranty Information
-
Specification Sheet
