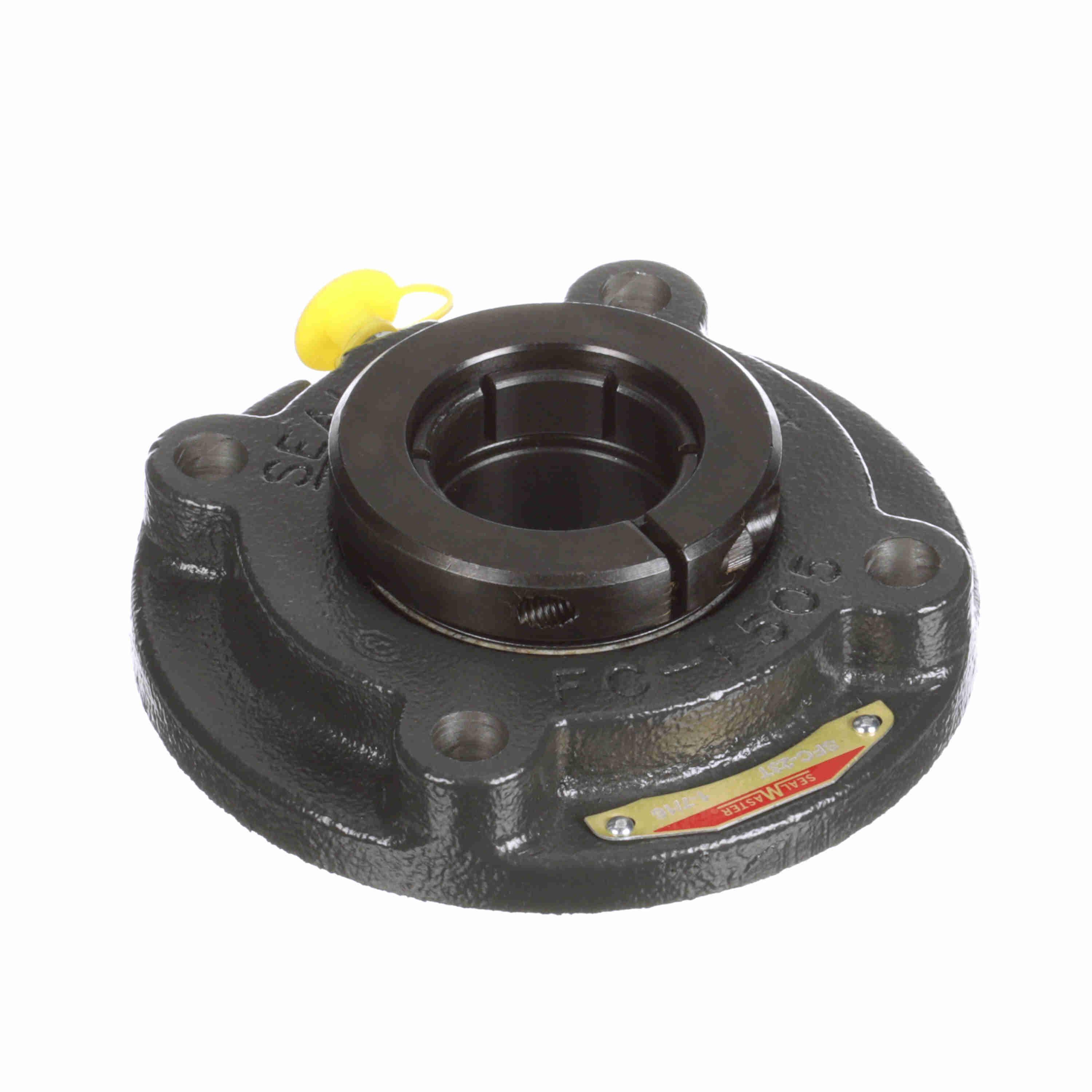

Sealmaster 1-7/16"-ID 4-BOLT CART/FLANGE UNIT SEA SFC-23-T
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
-
BrandSealmaster®
-
UPC662461030202
-
Manufacturer Part Number705465
-
CountryUSA
-
Load Capacity5782 lb Dynamic/3493 lb Static
-
Locking DeviceSkwezloc® Locking
-
Temperature Rating-20 to 250 deg F
-
FinishUncoated
-
Flange Mounting Type4-Bolt
-
Maximum Speed6500 rpm
-
TypeNon-Expansion Round Straight Standard Duty
-
Seal MaterialFelt
-
SeriesSFC-T
-
Bearing MaterialSteel
-
Bolt Circle Diameter4-1/8 in
-
Bore Diameter1-7/16 in
-
Overall Depth1-3/8 in
-
Overall Length/Diameter5 in
- Wide outer ring
- The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
- Zone hardened inner race
- GoldPlex-HP grease
- 52100 black oxide coated steel bearing
- Stamped steel rubber mounted flange
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
-
Alternative Part NumberSFC-23T
-
UNSPSC31171504
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
