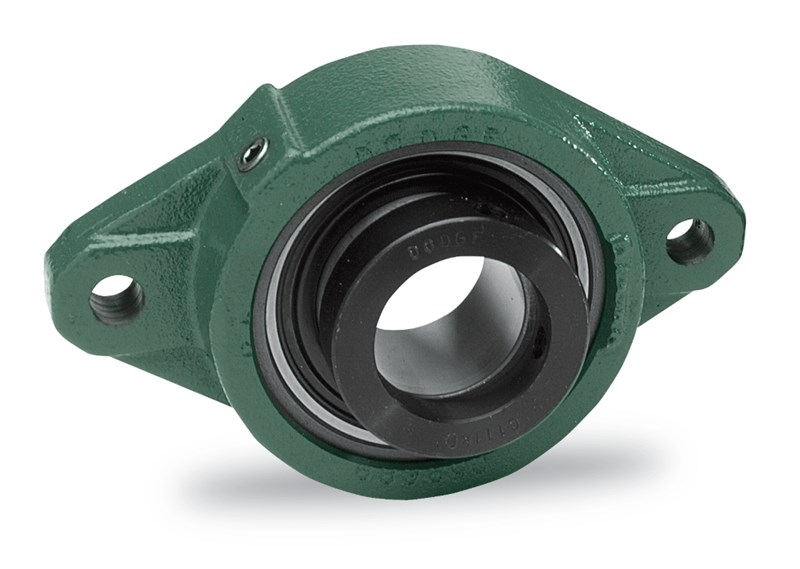

Dodge® 123172 206 Normal Duty Non-Expansion Single Lip Flange Mount Ball Bearing Unit, 1-1/4 in Dia Bore, 4.59 in L Bolt Center-to-Center, 2-Bolt Base Flange Mount, 5.56 in OAL/Dia
Dodge® 123172 206 Normal Duty Non-Expansion Single Lip Flange Mount Ball Bearing Unit, 1-1/4 in Dia Bore, 4.59 in L Bolt Center-to-Center, 2-Bolt Base Flange Mount, 5.56 in OAL/Dia
-
BrandDodge®
-
UPC782475247301
-
Manufacturer Part Number123172
-
CountryUSA
-
Load Capacity4368 lb Dynamic/2538 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating225 to 400 deg F
-
FinishPowder Coated
-
Flange Mounting Type2-Bolt Base
-
Maximum Speed6500 rpm
-
TypeNormal Duty Non-Expansion Single Lip
-
Seal MaterialNitrile Rubber
-
Series206
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length4.59 in
-
Bore Diameter1-1/4 in
-
Overall Depth1.56 in
-
Overall Height3.13 in
-
Overall Length/Diameter5.56 in
- 65 deg set screw locking system
- Precision-hardened and honed inner and outer rings
- Wide inner ring design
- Cooler operation for longer grease life
- Patented dual guard seal
- Stronger and more flexible cage
- Simplified anti-rotation device
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 100939192 |
| Motion Industries | 00564395 |
-
Alternative Part NumberF2B-SC-104S
-
UNSPSC31171504
-
Package DescriptionEACH
-
WarrantyLimited
-
Specification Sheet
-
Catalog
-
Full Engineering Drawing
-
Owners/User Manual
-
Warranty Information
