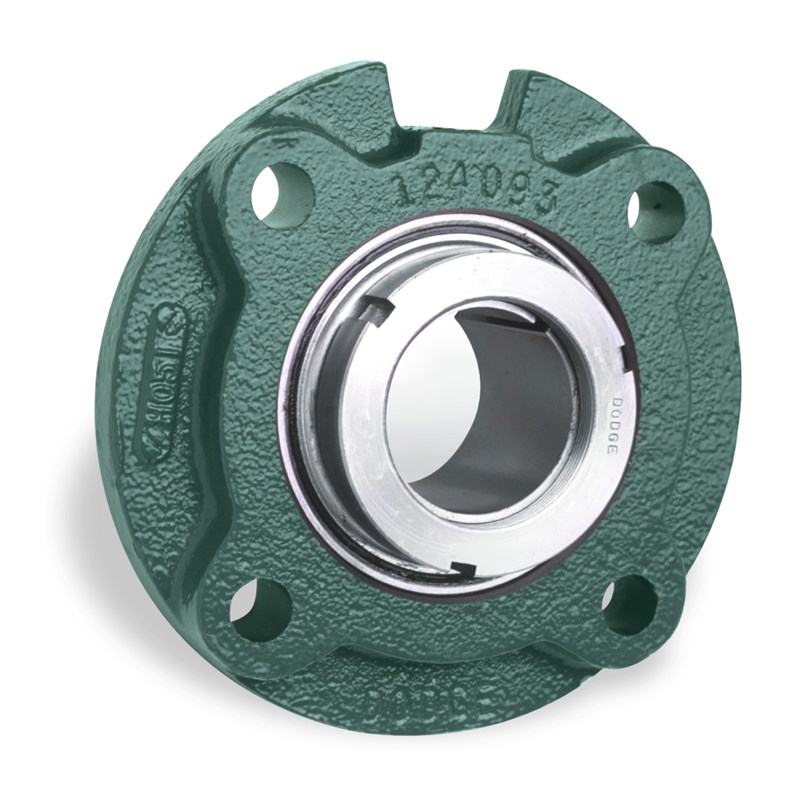

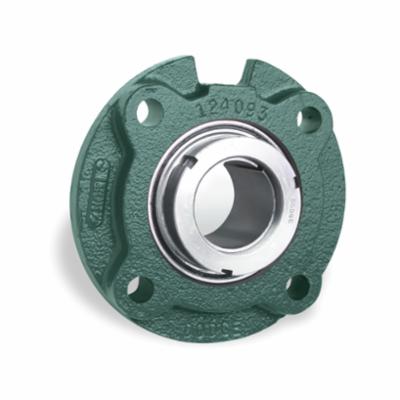

Dodge® 126171 208 Medium Duty Non-Expansion Single Lip Flanged Cartridge Ball Bearing Unit, 1-1/2 in Dia Bore, 4.38 in L Bolt Center-to-Center, 4.38 in Dia Bolt Circle, 4-Bolt Base/Piloted Flange Mount, 5-1/4 in OAL/Dia
Dodge® 126171 208 Medium Duty Non-Expansion Single Lip Flanged Cartridge Ball Bearing Unit, 1-1/2 in Dia Bore, 4.38 in L Bolt Center-to-Center, 4.38 in Dia Bolt Circle, 4-Bolt Base/Piloted Flange Mount, 5-1/4 in OAL/Dia
-
BrandDodge®
-
UPC782475115815
-
Manufacturer Part Number126171
-
CountryUSA
-
Load Capacity7332 lb Dynamic/4475 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating225 to 400 deg F
-
FinishPowder Coated
-
Flange Mounting Type4-Bolt Base/Piloted
-
Maximum Speed5000 rpm
-
TypeMedium Duty Non-Expansion Single Lip
-
Seal MaterialNitrile Rubber
-
Series208
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length4.38 in
-
Bolt Circle Diameter4.38 in
-
Bore Diameter1-1/2 in
-
Overall Depth1.98 in
-
Overall Length/Diameter5-1/4 in
- 65 deg set screw locking system
- Precision-hardened and honed inner and outer rings
- Wide inner ring design
- Cooler operation for longer grease life
- Patented dual guard seal
- Stronger and more flexible cage
- Simplified anti-rotation device
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100733554 |
| Motion Industries | 00565499 |
-
Alternative Part NumberFC-SCM-108
-
UNSPSC31171504
-
Package DescriptionEACH
-
WarrantyLimited
-
Warranty Information
-
Specification Sheet
-
Catalog
-
Owners/User Manual
-
Instruction/Installation Manual
