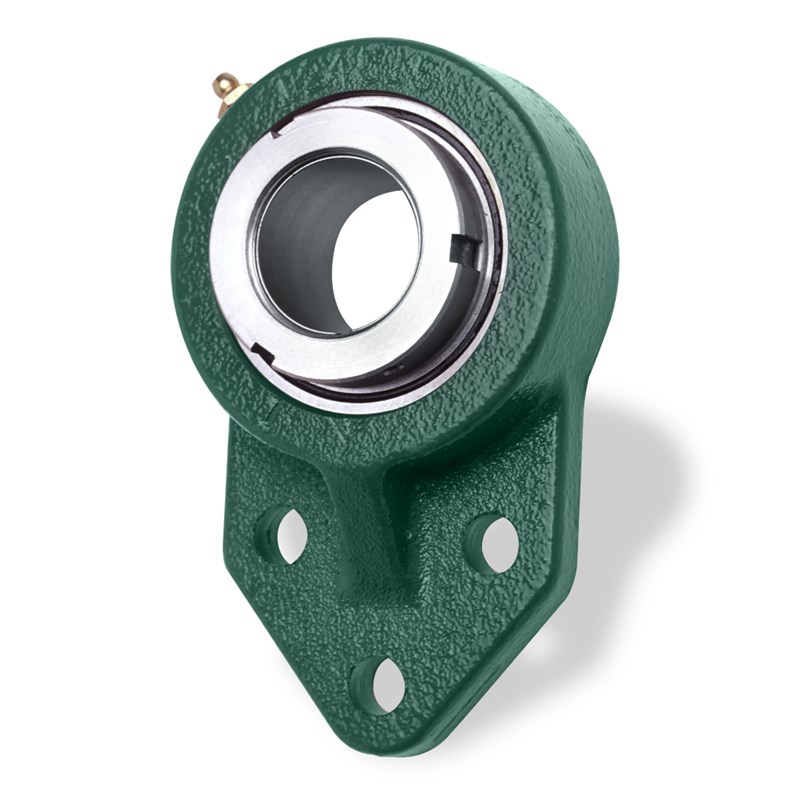

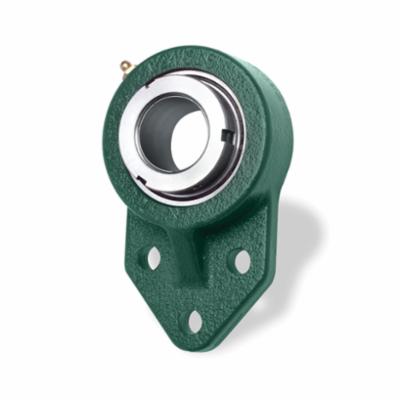

FB-SC-104 Dodge® 124445 207 Normal Duty Non-Expansion Single Lip Flange Bracket Ball Bearing Unit, 1-1/4 in Dia Bore, 2 in L Bolt Center-to-Center, 3-Bolt Base Flange Mount, 3-3/4 in OAL/Dia
FB-SC-104 Dodge® 124445 207 Normal Duty Non-Expansion Single Lip Flange Bracket Ball Bearing Unit, 1-1/4 in Dia Bore, 2 in L Bolt Center-to-Center, 3-Bolt Base Flange Mount, 3-3/4 in OAL/Dia
-
BrandDodge®
-
UPC782475524792
-
Manufacturer Part Number124445
-
CountryUSA
-
Load Capacity5759 lb Dynamic/3461 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating225 to 400 deg F
-
FinishPowder Coated
-
Flange Mounting Type3-Bolt Base
-
Maximum Speed5500 rpm
-
TypeNormal Duty Non-Expansion Single Lip
-
Seal MaterialNitrile Rubber
-
Series207
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length2 in
-
Bore Diameter1-1/4 in
-
Overall Depth1.88 in
-
Overall Height6.13 in
-
Overall Length/Diameter3-3/4 in
- 65 deg set screw locking system
- Precision-hardened and honed inner and outer rings
- Wide inner ring design
- Cooler operation for longer grease life
- Patented dual guard seal
- Stronger and more flexible cage
- Simplified anti-rotation device
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 100939235 |
| Motion Industries | 00568727 |
-
Alternative Part NumberFB-SC-104
-
UNSPSC31171504
-
Package DescriptionEACH
-
WarrantyLimited
-
Catalog
-
Warranty Information
-
Owners/User Manual
-
Specification Sheet
