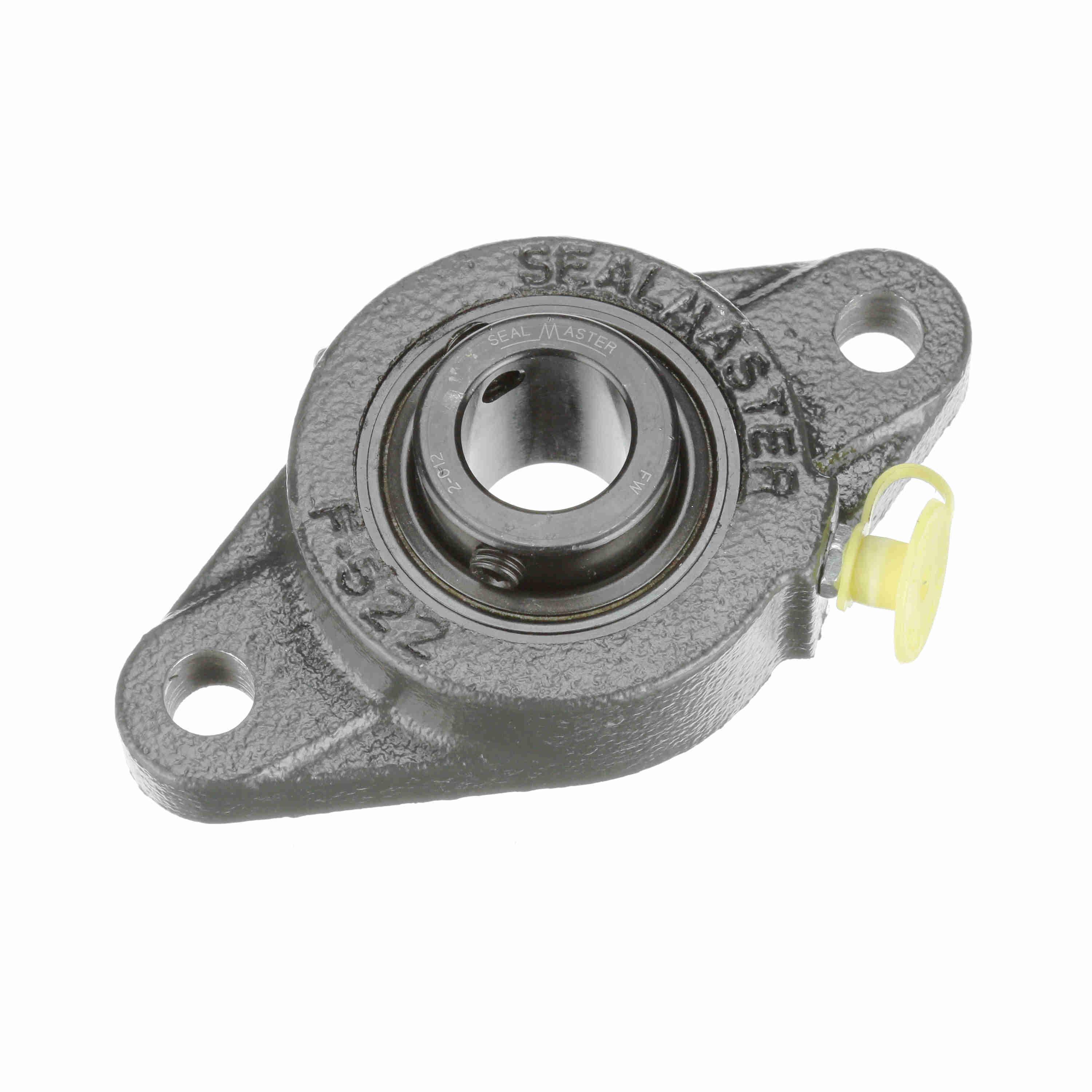

Sealmaster 3/4"-ID 2-BOLT FLANGE UNITS SEA SFT-10-12-C
Sealmaster® gold mounted ball bearings feature wide outer race insert bearing with a land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system. This provides a direct path for lubrication into the bearing. It also helps prevent outer ring rotation. Available with either setscrew or Skwezloc®concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex®HP grease loss and friction.
-
BrandSealmaster®
-
UPC662461128237
-
Manufacturer Part Number725376
-
CountryUSA
-
Load Capacity2611 lb Dynamic/1444 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating-20 to 220 deg F
-
FinishUncoated
-
Flange Mounting Type2-Bolt
-
TypeNon-Expansion Round Bore Standard-Duty
-
Seal MaterialNitrile Rubber
-
SeriesSFT
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length3 in
-
Bore Diameter5/8 in
-
Overall Depth1-9/32 in
-
Overall Height2-5/16 in
-
Overall Length/Diameter3-7/8 in
- Lock pin and dimple system
- Setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
- Land riding retainer
- All bearings are assembled with a controlled housing fit between the bearing outer ring and housing bore
- Metal nameplate riveted to the housing allows for easy identification even after years of operation
- Wide black oxided outer ring with direct lubrication inlet hole
- Wide zone hardened inner ring
-
Alternative Part NumberSFT-10-12C
-
UNSPSC31171501
-
Package DescriptionEACH
-
Standards/ApprovalsABMA Standard
-
