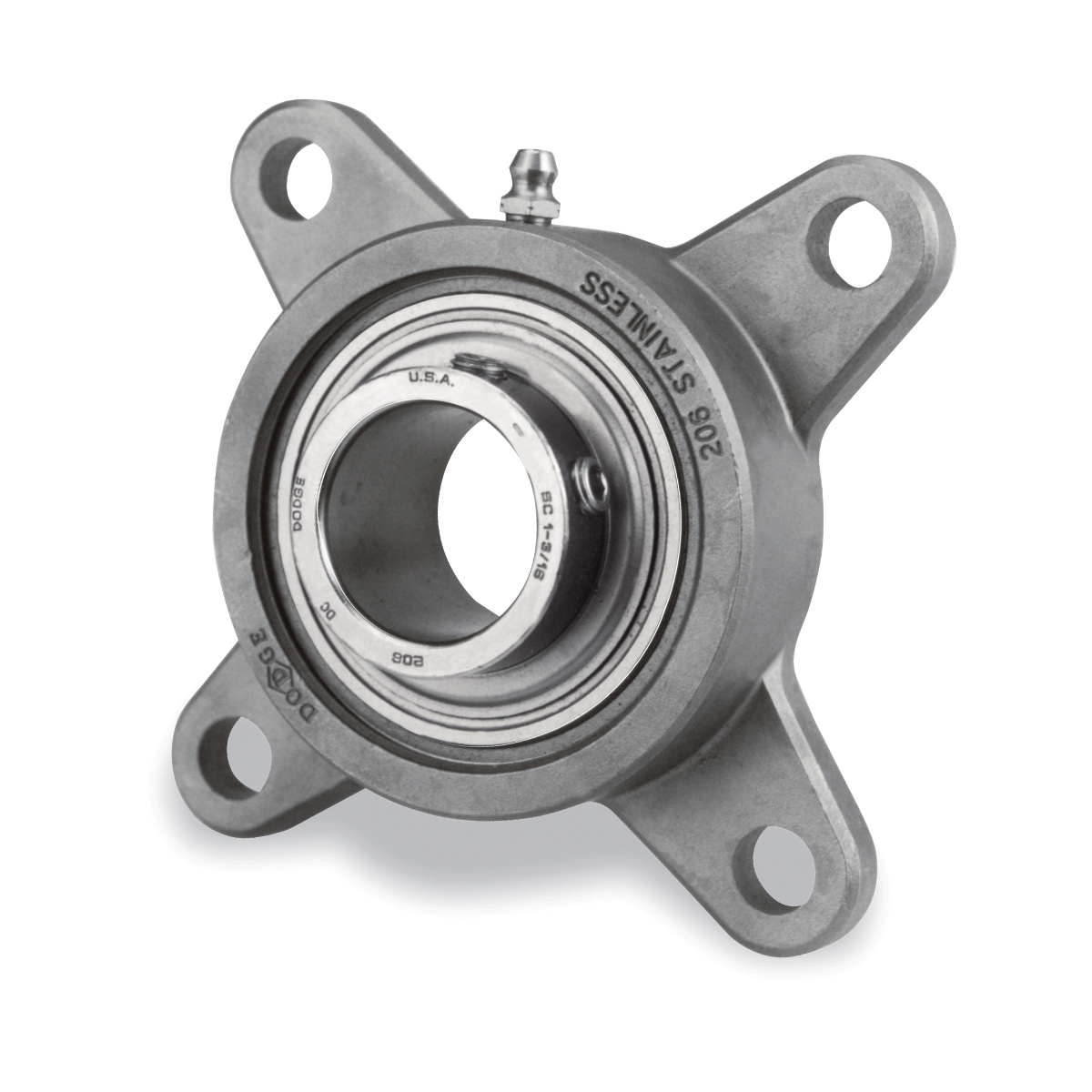

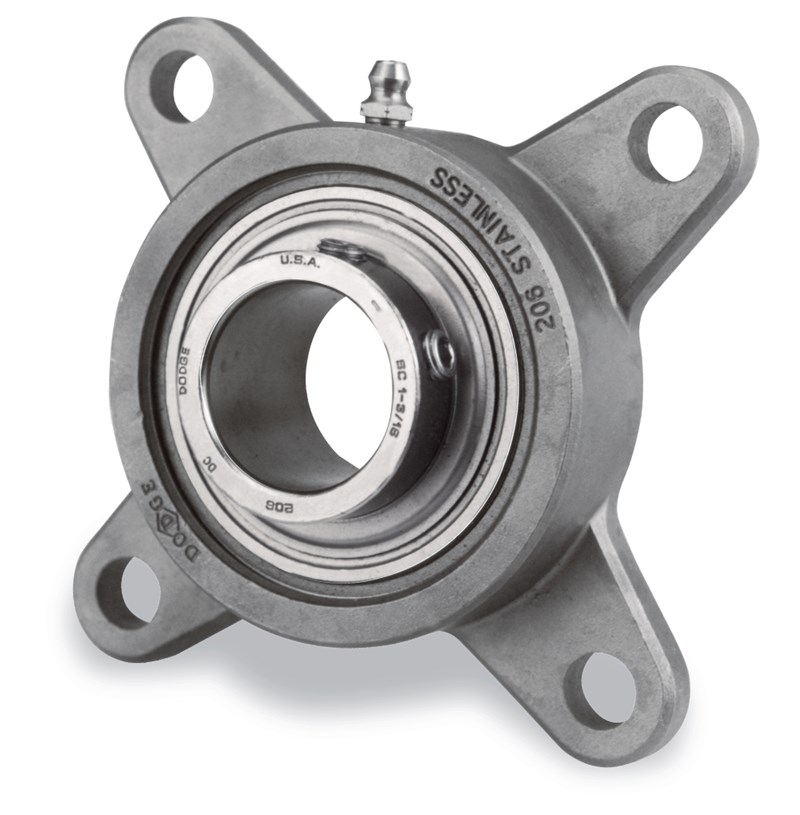

Dodge® Ultra Kleen™ 136889 208 Normal Duty Non-Expansion Ball Bearing Unit, 40 mm Dia Bore, 101.6 mm L Bolt Center-to-Center, 4-Bolt Base Flange Mount, 128.5 mm OAL/Dia
Dodge® Ultra Kleen™ mounted ball bearings are ideal for washdown applications. The stainless steel set screw (SC) insert is deployed in either of a polymer or stainless steel housing. The QuadGuard™ triple lip seal with rubberized flinger provides superior protection against contaminants while the patented Maxlife™ cage retains lubricant.
-
BrandDodge®
-
UPC782476478247
-
Manufacturer Part Number136889
-
CountryUSA
-
Load Capacity6232 lb Dynamic/4475 lb Static
-
Locking Device65 deg Set Screw
-
FinishUncoated
-
Flange Mounting Type4-Bolt Base
-
Maximum Speed4000 rpm
-
TypeNormal Duty Non-Expansion
-
Series208
-
Bearing MaterialStainless Steel
-
Bolt Center-to-Center Length101.6 mm
-
Bore Diameter40 mm
-
Overall Depth50.1 mm
-
Overall Height128.5 mm
-
Overall Length/Diameter128.5 mm
- Stainless steel housings feature a solid base, with no cavities or fillings to trap contaminants
- Mechanically retained QuadGuard® sealing system with triple lip seal and rubberized flinger that closes the gap left by conventional all metal flinger designs
- Maxlife™ cage creates grease compartments around each rolling element
- H1 registered food grade lubricant
- Standard food grade lubrication
- Wide inner ring design
- Stainless steel housing and insert
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 101644326 |
| Motion Industries | 04203281 |
-
Alternative Part NumberF4B-SCEZ-40M-SHSS
-
UNSPSC31171504
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
WarrantyLimited
-
Warranty Information
-
Catalog
-
Instruction/Installation Manual
-
Specification Sheet
-
Owners/User Manual
