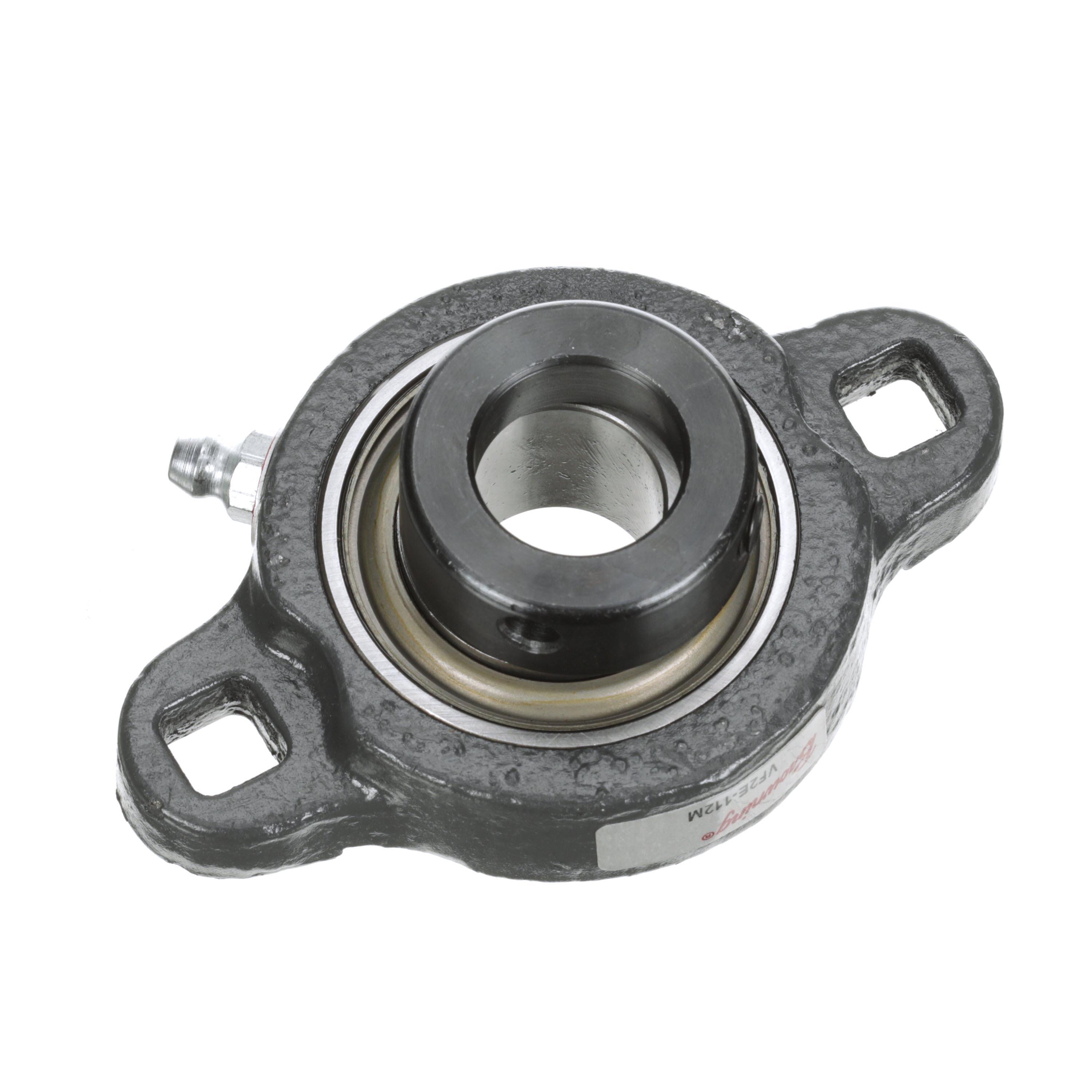

Browning® 767759 VF2E 100 Non-Expansion Intermediate Duty Ball Bearing Unit, 3/4 in Dia Bore, 2-13/16 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 3-9/16 in OAL/Dia
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289071982
-
Manufacturer Part Number767759
-
CountryUSA
-
Load Capacity2611 lb Dynamic/1444 lb Static
-
Locking DeviceEccentric
-
Temperature Rating200 deg F
-
FinishGray Painted
-
Flange Mounting Type2-Bolt
-
Maximum Speed4000 rpm
-
TypeNon-Expansion Intermediate Duty
-
Seal MaterialNitrile Rubber
-
SeriesVF2E 100
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length2-13/16 in
-
Bore Diameter3/4 in
-
Overall Depth1-21/64 in
-
Overall Height7/16 in
-
Overall Length/Diameter3-9/16 in
- A positive-contact molded nitrile rubber contact seal with an auxiliary flinger element comes standard
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Semi solid cast iron rugged base design provides an excellent mounting foundation
- Zone hardened inner race
- Eccentric locking design incorporates a precision eccentric collar to mate with the inner ring extension for shaft hold
- Alemite fitting lubrication
- Powder coat epoxy malleable iron housing
- Eccentric locking designed for locking in direction of rotation
-
Alternative Part NumberVF2E-112M
-
UNSPSC31171501
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
