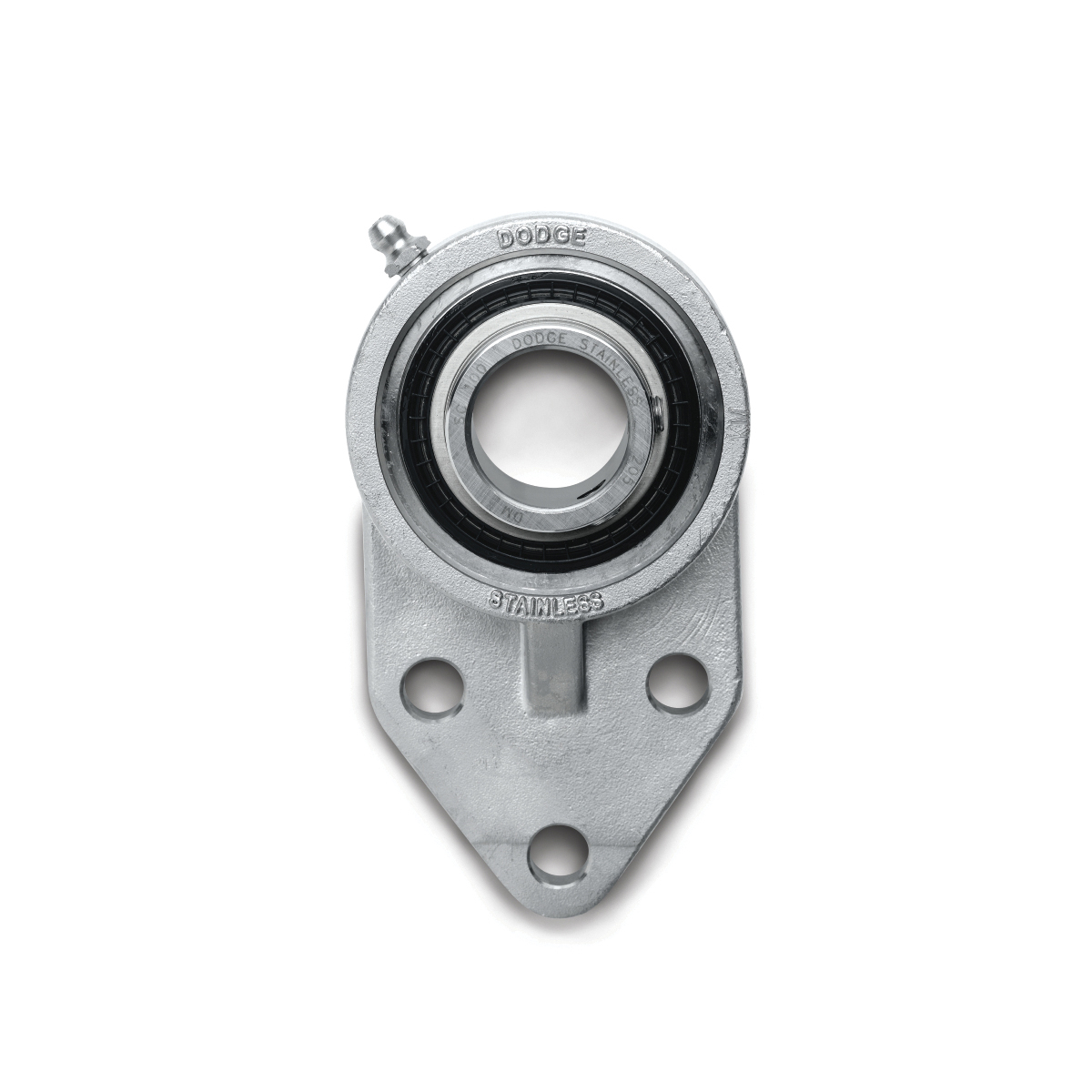

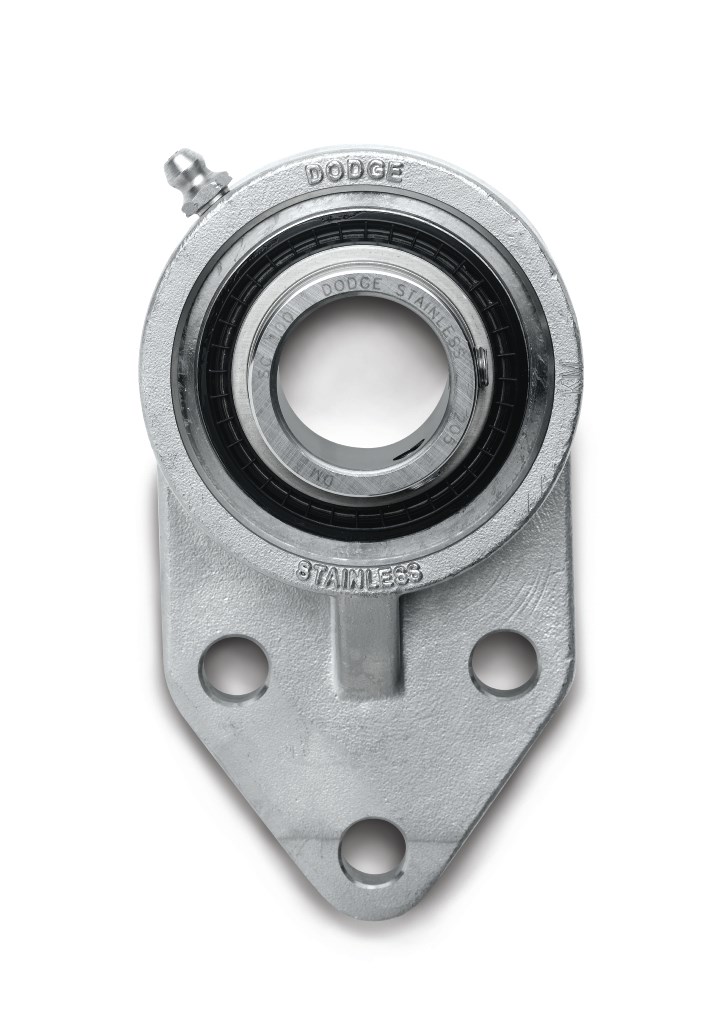

Dodge® Ultra Kleen™ 136802 205 Normal Duty Non-Expansion Ball Bearing Unit, 1 in Dia Bore, 1.63 in L Bolt Center-to-Center, 3-Bolt Bracket Flange Mount, 2.62 in OAL/Dia
Dodge® Ultra Kleen™ mounted ball bearings are ideal for washdown applications. The stainless steel set screw (SC) insert is deployed in either of a polymer or stainless steel housing. The QuadGuard™ triple lip seal with rubberized flinger provides superior protection against contaminants while the patented Maxlife™ cage retains lubricant.
-
BrandDodge®
-
UPC782476478742
-
Manufacturer Part Number136802
-
CountryUSA
-
Load Capacity2674 lb Dynamic/1769 lb Static
-
Locking Device65 deg Set Screw
-
FinishUncoated
-
Flange Mounting Type3-Bolt Bracket
-
Maximum Speed6000 rpm
-
TypeNormal Duty Non-Expansion
-
Series205
-
Bearing MaterialStainless Steel
-
Bolt Center-to-Center Length1.63 in
-
Bore Diameter1 in
-
Overall Depth1.37 in
-
Overall Height4.69 in
-
Overall Length/Diameter2.62 in
- Stainless steel housings feature a solid base, with no cavities or fillings to trap contaminants
- Mechanically retained QuadGuard® sealing system with triple lip seal and rubberized flinger that closes the gap left by conventional all metal flinger designs
- Maxlife™ cage creates grease compartments around each rolling element, allowing balls to be constantly in contact with grease, and insure grease retention in potential washout conditions
- H1 registered food grade lubricant
- Standard food grade lubrication
- Wide inner ring design
- Stainless steel housing and insert
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 101637548 |
| Motion Industries | 04203202 |
-
Alternative Part NumberFB-SCEZ-100-SHSS
-
UNSPSC31171504
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
WarrantyLimited
-
Warranty Information
-
Instruction/Installation Manual
-
Specification Sheet
-
Catalog
