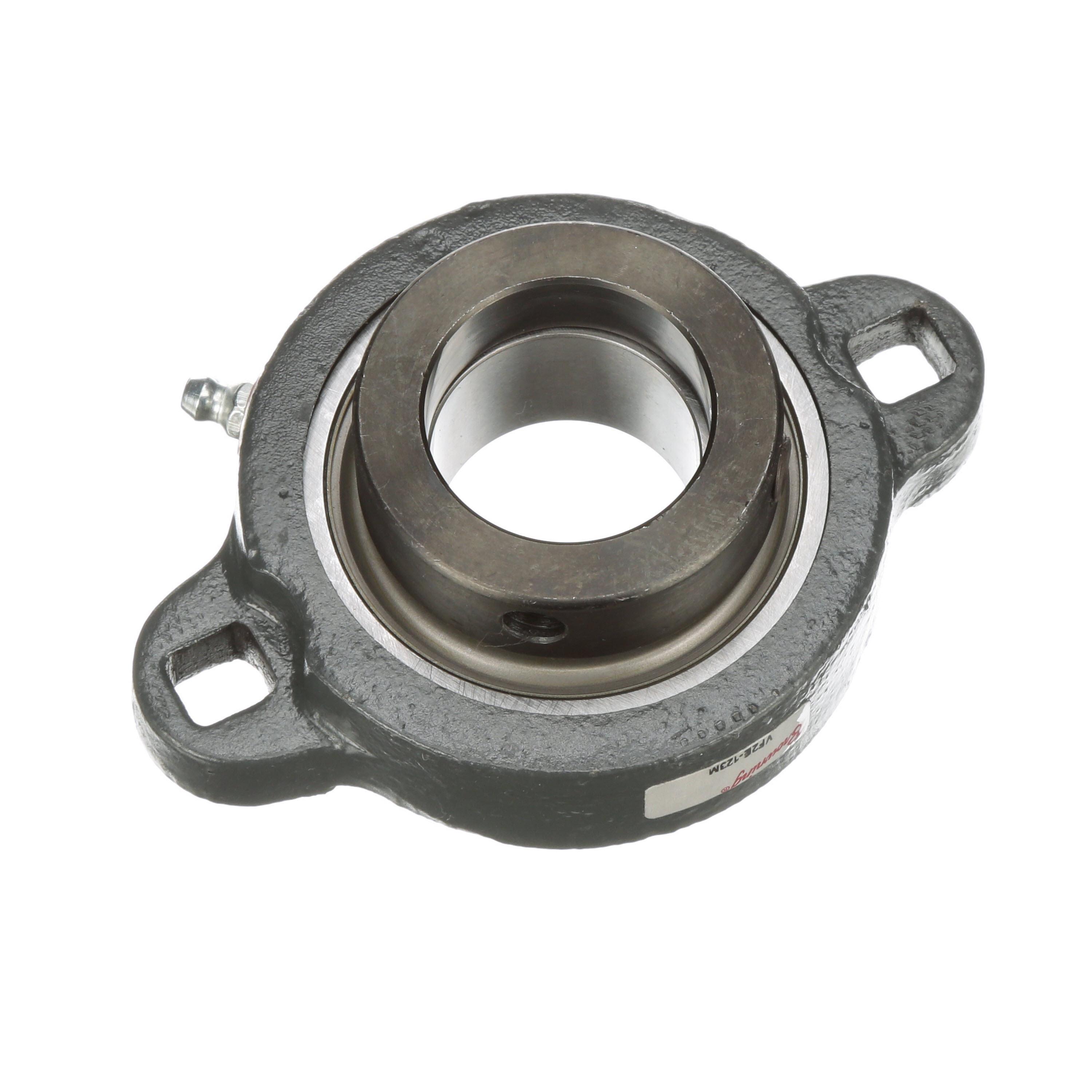

Browning 1-7/16"-ID 2-BOLT BB FLANGE UNITS BRW VF-2-E-123-M
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289072484
-
Manufacturer Part Number767800
-
CountryUSA
-
Load Capacity5782 lb Dynamic/3493 lb Static
-
Locking DeviceEccentric
-
Temperature Rating200 deg F
-
FinishGray Painted
-
Flange Mounting Type2-Bolt
-
Maximum Speed2500 rpm
-
TypeNon-Expansion Intermediate Duty
-
Seal MaterialNitrile Rubber
-
SeriesVF2E 100
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length3-15/16 in
-
Bore Diameter1-7/16 in
-
Overall Depth1-11/16 in
-
Overall Height1/2 in
-
Overall Length/Diameter4-13/16 in
- A positive-contact molded nitrile rubber contact seal with an auxiliary flinger element comes standard
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Eccentric locking design incorporates a precision eccentric collar to mate with the inner ring extension for shaft hold
- Powder coat epoxy malleable iron housing
- Eccentric locking designed for locking in direction of rotation
-
Alternative Part NumberVF2E-123M
-
UNSPSC31171501
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
