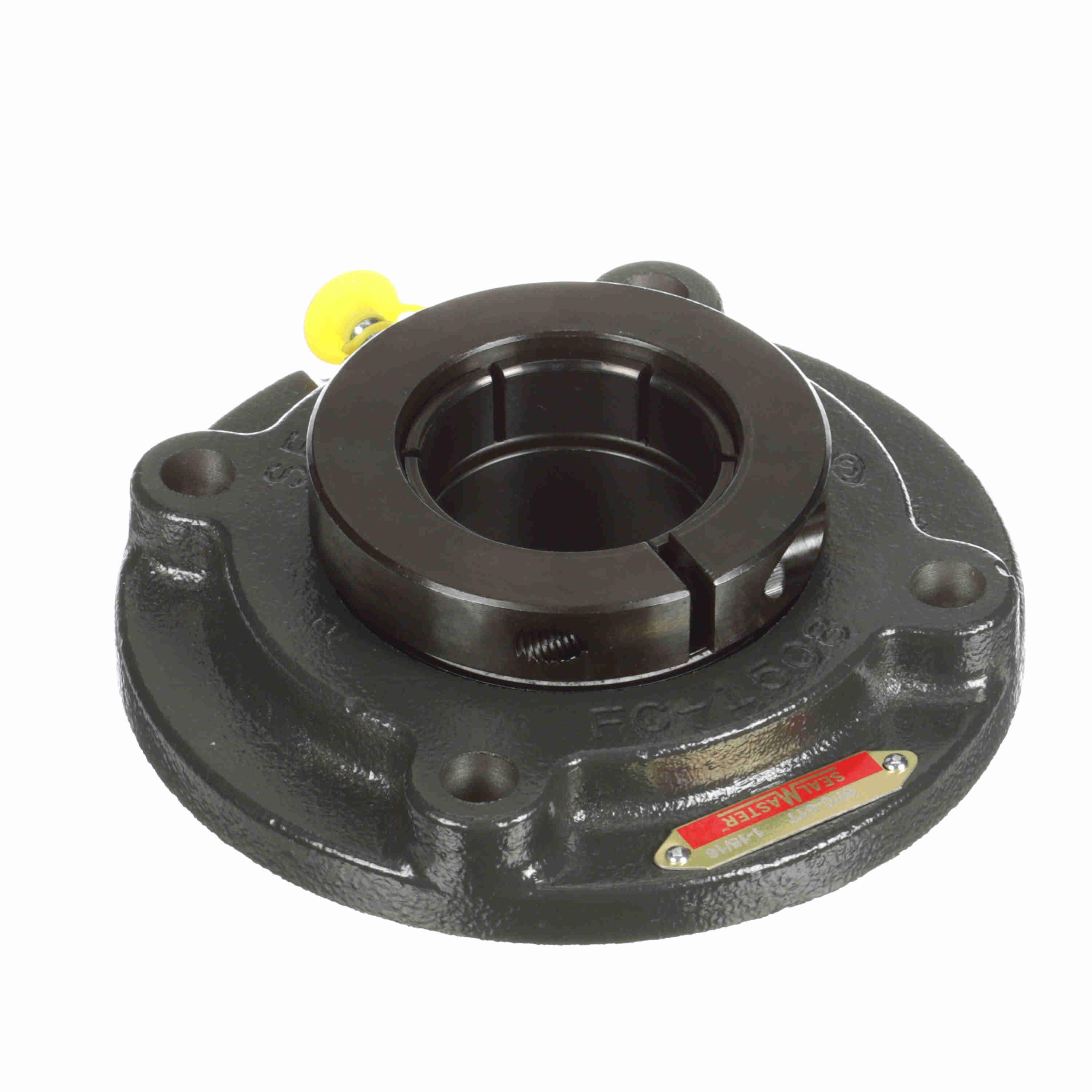

Sealmaster® 705470 SFC-T Non-Expansion Standard Duty Round/Straight Bore Ball Bearing Unit With Flinger, 1-15/16 in Dia Bore, 5-1/8 in Dia Bolt Circle, 4-Bolt Flange Mount, 6-1/8 in OAL/Dia
Sealmaster® gold mounted ball bearings feature wide outer race insert bearing with a land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system. This provides a direct path for lubrication into the bearing. It also helps prevent outer ring rotation. Available with either setscrew or Skwezloc®concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex®HP grease loss and friction.
-
BrandSealmaster®
-
UPC662461030257
-
Manufacturer Part Number705470
-
CountryUSA
-
Load Capacity7889 lb Dynamic
-
Locking DeviceSkwezloc® Collar
-
Temperature Rating250 deg F
-
FinishUncoated
-
Flange Mounting Type4-Bolt
-
Maximum Speed5000 rpm
-
TypeNon-Expansion Standard Duty Round/Straight Bore
-
Seal MaterialFelt
-
SeriesSFC-T
-
Bearing Material52100 Steel
-
Bolt Circle Diameter5-1/8 in
-
Bore Diameter1-15/16 in
-
Overall Depth2-3/32 in
-
Overall Height6-1/8 in
-
Overall Length/Diameter6-1/8 in
- The felt seal with flinger provides a tight labyrinth seal which retains lubrication and acts as a filter to exclude contamination
- Skwezloc® is a concentric collar clamp design that results in near perfect concentricity of the shaft to the bearing bore
- All bearings are assembled with a controlled housing fit between the bearing outer ring and housing bore
- Metal nameplate riveted to the housing allows for easy identification even after years of operation
- +/- 2 deg static misalignment
- Wide black oxided outer ring with direct lubrication inlet hole
- Wide zone hardened inner ring
- Flange cartridge housing
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
-
Alternative Part NumberSFC-31T
-
UNSPSC31171501
-
Package DescriptionEACH
-
Standards/ApprovalsABMA Standard
-
