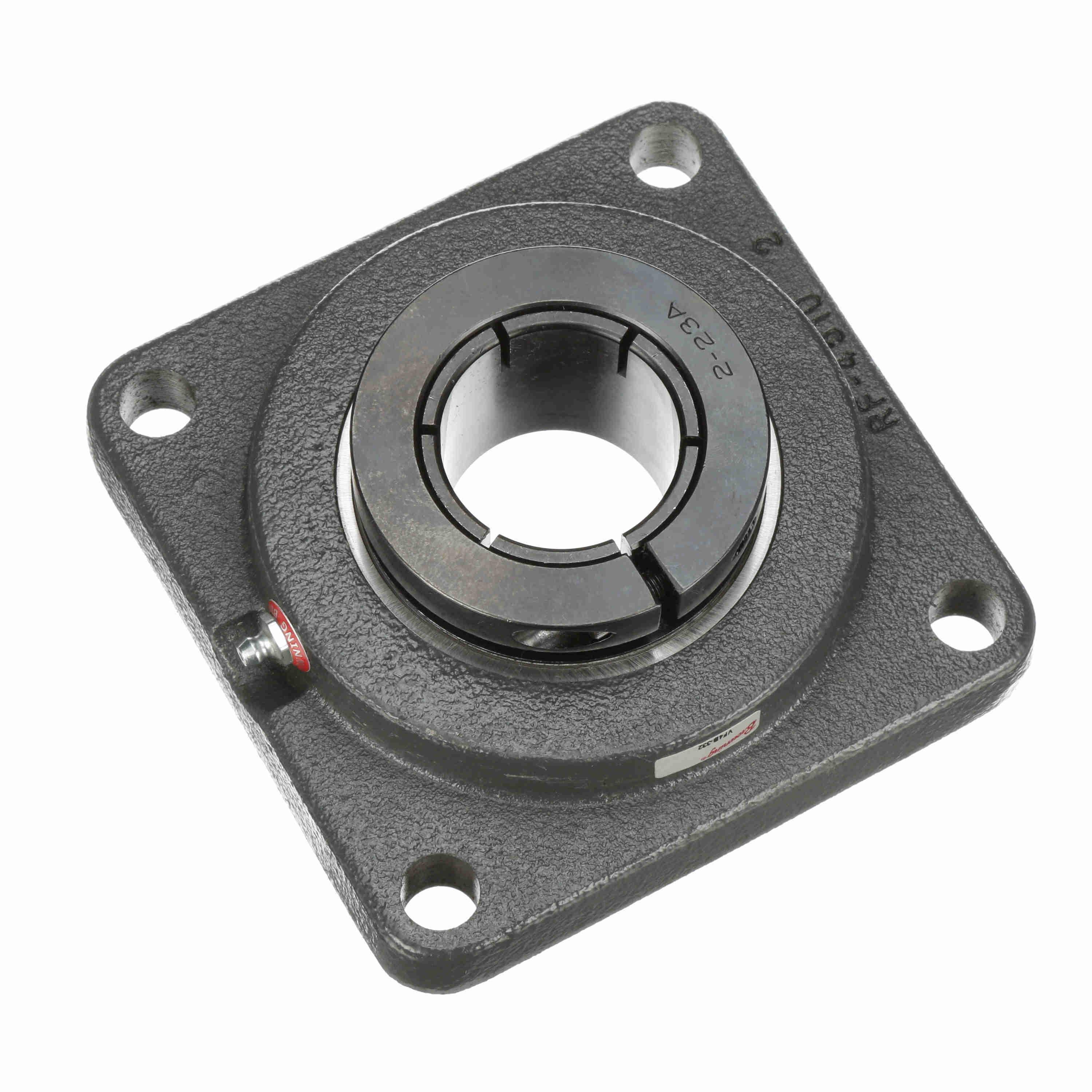

Browning® 766478 VF4B 300 Non-Expansion Medium Duty Round/Straight Bore Ball Bearing Unit, 1-1/2 in Dia Bore, 4-1/8 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 5-3/8 in OAL/Dia
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662460347660
-
Manufacturer Part Number766478
-
CountryUSA
-
Load Capacity7901 lb Dynamic/5139 lb Static
-
Locking DeviceBOA Concentric
-
Temperature Rating200 deg F
-
FinishGray Painted
-
Flange Mounting Type4-Bolt
-
Maximum Speed3000 rpm
-
TypeNon-Expansion Medium Duty Round/Straight Bore
-
Seal MaterialNitrile Rubber
-
SeriesVF4B 300
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length4-1/8 in
-
Bore Diameter1-1/2 in
-
Overall Depth2-7/64 in
-
Overall Height5-3/8 in
-
Overall Length/Diameter5-3/8 in
-
Depth24
- A positive-contact molded nitrile rubber contact seal with an auxiliary flinger element comes standard
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Semi solid cast iron base
- Zone hardened inner race
- BOA is a concentric locking collar clamp design that results in near-perfect concentricity of the shaft to the bearing bore
- Nylon retainer
- 52100 bearing insert
- test
- test
- test
- test
- test
- test
- test
- test
- test
- test
- test
- test
- test
-
Alternative Part NumberVF4B-324
-
UNSPSC31171501
-
Warranty1 Year
-
Includestest
-
Package Description1 BG/CS
-
Standards/ApprovalsTest
-
