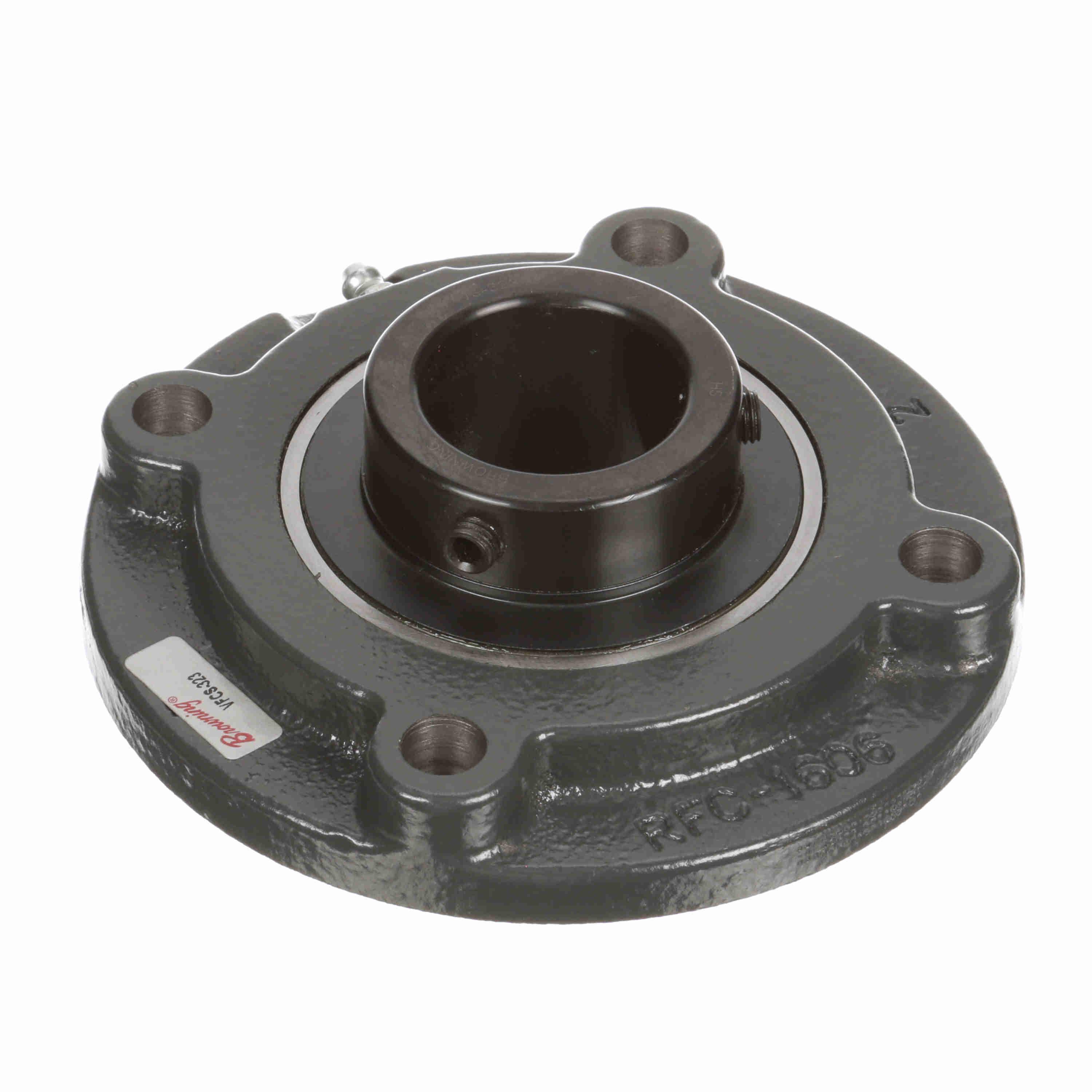

Browning® 767497 VFCS 300 Non-Expansion Medium Duty Round/Straight Bore Ball Bearing Cartridge Unit With Seal Flinger, 1-7/16 in Dia Bore, 4-3/8 in Dia Bolt Circle, 4-Bolt Flange Mount, 5-1/4 in OAL/Dia
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289520398
-
Manufacturer Part Number767497
-
CountryUSA
-
Load Capacity5782 lb Dynamic/3493 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating200 deg F
-
Flange Mounting Type4-Bolt
-
Maximum Speed3500 rpm
-
TypeNon-Expansion Medium Duty Round/Straight Bore
-
Seal MaterialNitrile Rubber
-
SeriesVFCS 300
-
Bearing MaterialSteel
-
Bolt Circle Diameter4-3/8 in
-
Bore Diameter1-7/16 in
-
Overall Depth1-15/16 in
-
Overall Length/Diameter5-1/4 in
- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
- Setscrew locking is 120 deg spaced, balanced three-point contact minimizes inner ring distortion vibration while reducing noise and improving reliability
- Nylon retainer
- 52100 black oxide coated insert
- Powder coat epoxy cast iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal and flinger
-
Alternative Part NumberVFCS-323
-
UNSPSC31171501
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
