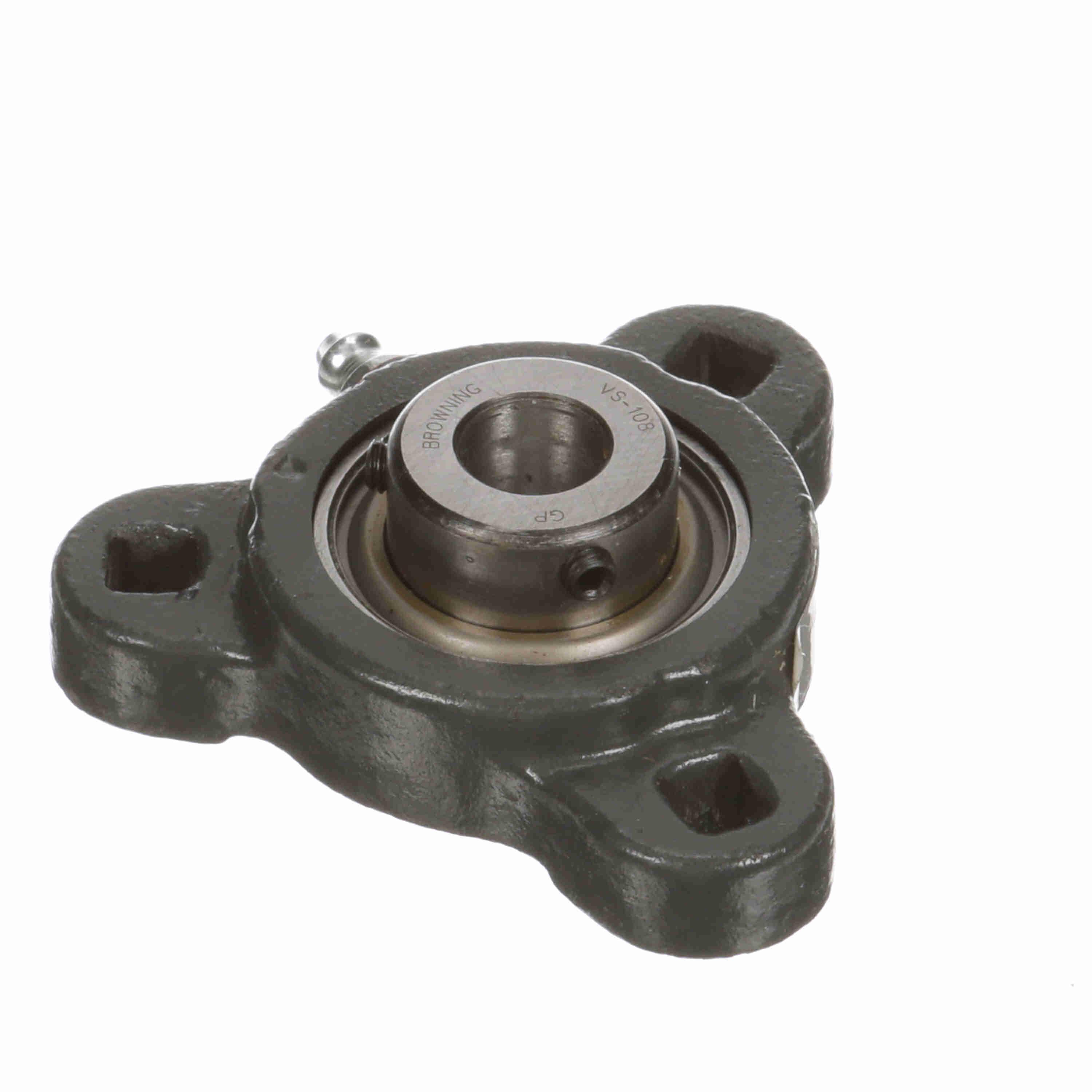

Browning® 767834 VF3S 100 Non-Expansion Light Duty Round/Straight Bore Ball Bearing Unit, 1/2 in Dia Bore, 2-1/2 in Dia Bolt Circle, 3-Bolt Flange Mount, 3-3/16 in OAL/Dia
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289607129
-
Manufacturer Part Number767834
-
CountryUSA
-
Load Capacity2108 lb Dynamic/1117 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating200 deg F
-
FinishGray Painted
-
Flange Mounting Type3-Bolt
-
Maximum Speed5000 rpm
-
TypeNon-Expansion Light Duty Round/Straight Bore
-
Seal MaterialNitrile Rubber
-
SeriesVF3S 100
-
Bearing MaterialSteel
-
Bolt Circle Diameter2-1/2 in
-
Bore Diameter1/2 in
-
Overall Depth31/32 in
-
Overall Length/Diameter3-3/16 in
- A positive-contact molded nitrile rubber contact seal with an auxiliary flinger element comes standard
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Semi solid cast iron base
- Setscrew locking is 120 deg spaced, balanced three-point contact minimizes inner ring distortion vibration while reducing noise and improving reliability
- Plastic retainer
- 52100 black oxide coated insert
- Powder coat epoxy malleable iron housing
- Powder coat epoxy malleable iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal
-
Alternative Part NumberVF3S-108M
-
UNSPSC31171501
-
Package DescriptionEACH
-
Warranty1 Year
-
