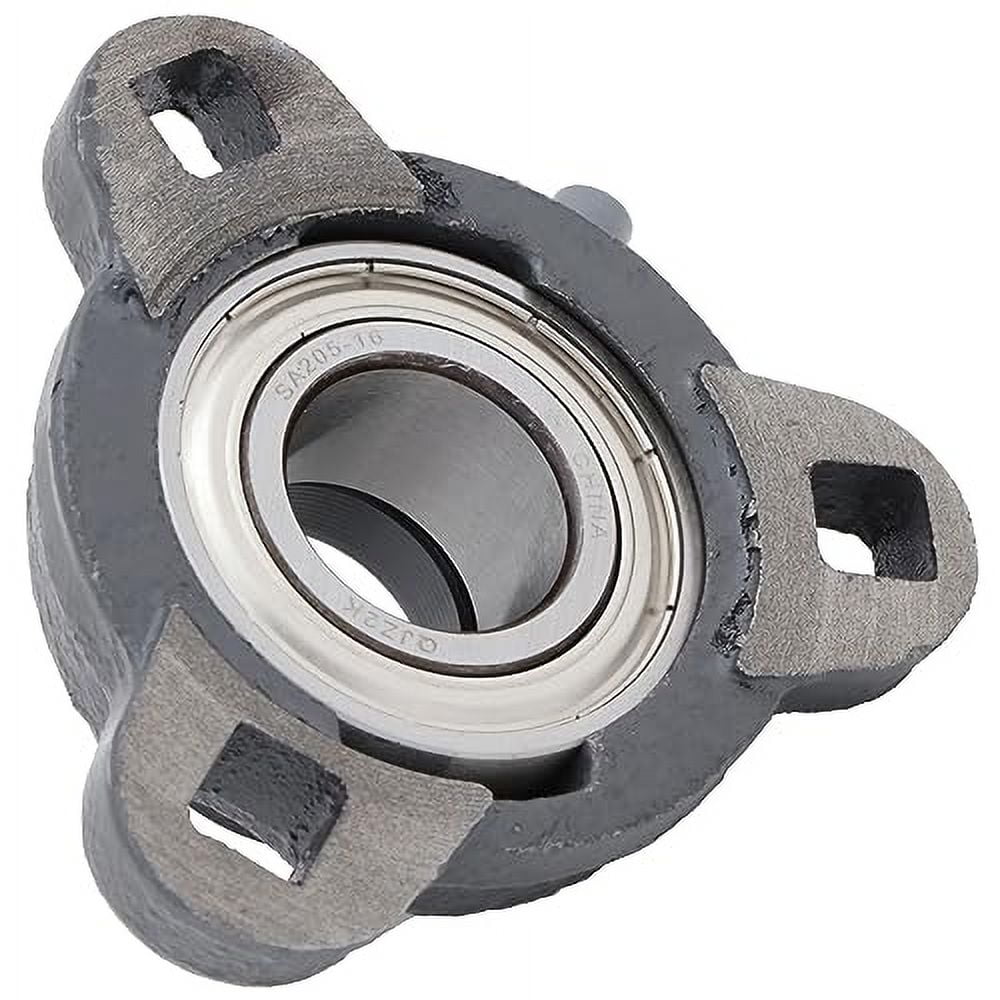

FYH® UCFB207 23 UCFB Cylindrical Flange Mount Ball Bearing Unit, 1-7/16 in Dia Bore, 1-13/16 in L Bolt Center-to-Center, 3/8 in Dia Bolt Circle, 3-Bolt Flange Mount, 3-17/32 in OAL/Dia
FYH® UCFB207 23 UCFB Cylindrical Flange Mount Ball Bearing Unit, 1-7/16 in Dia Bore, 1-13/16 in L Bolt Center-to-Center, 3/8 in Dia Bolt Circle, 3-Bolt Flange Mount, 3-17/32 in OAL/Dia
-
BrandFYH®
-
Manufacturer Part NumberUCFB207 23
-
CountryUSA
-
Load Capacity25.7 kN Dynamic/15.4 kN Static
-
Locking DeviceSet Screw
-
Flange Mounting Type3-Bolt
-
TypeCylindrical
-
SeriesUCFB
-
Bearing MaterialCast Iron
-
Bolt Center-to-Center Length1-13/16 in
-
Bolt Circle Diameter3/8 in
-
Bore Diameter1-7/16 in
-
Overall Depth1-3/4 in
-
Overall Height5-21/32 in
-
Overall Length/Diameter3-17/32 in
