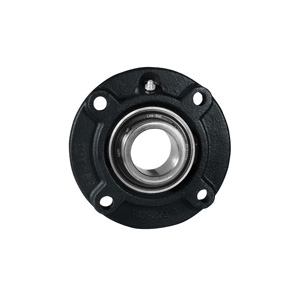

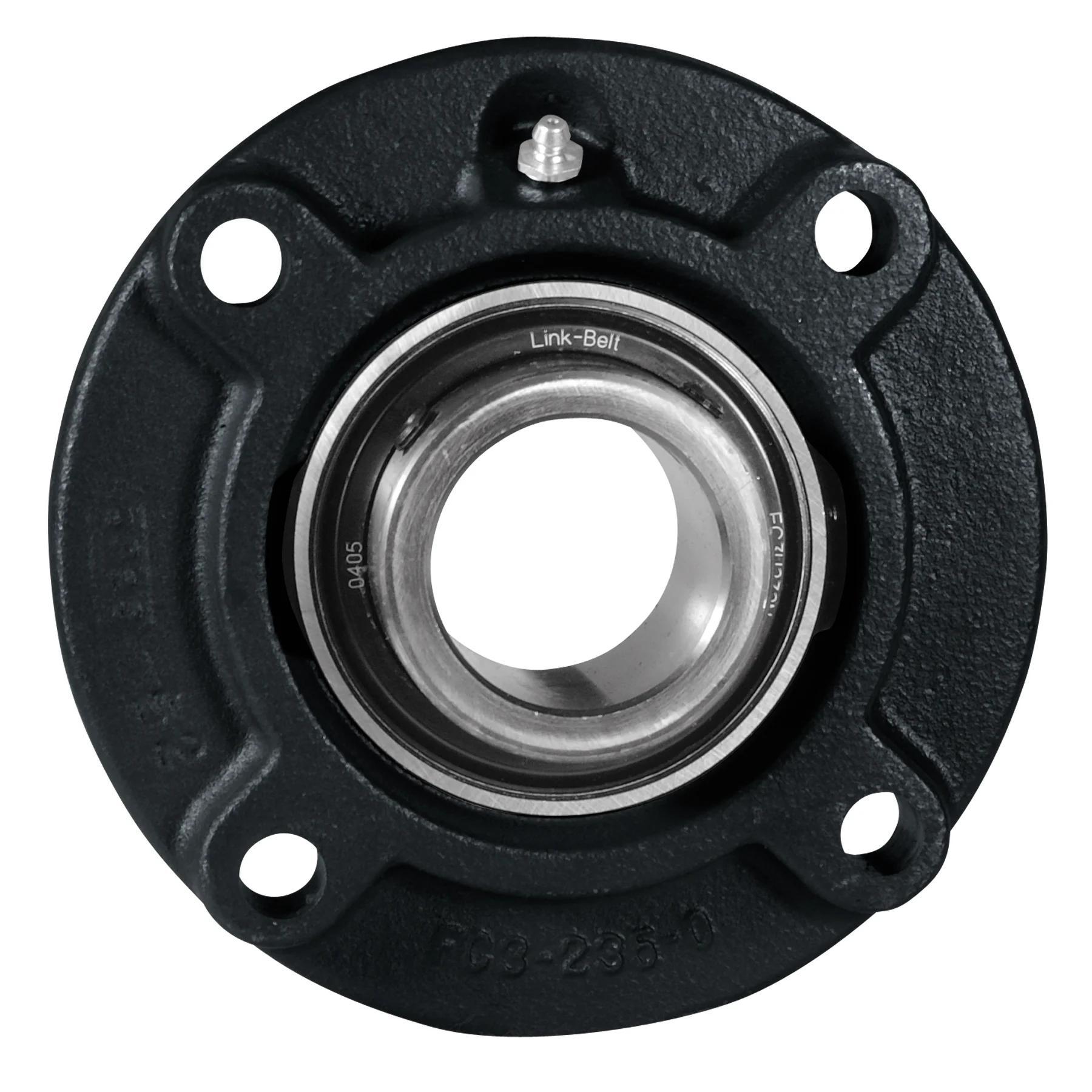

Link-Belt 1"-ID 4-BOLT/HOLE BB FLANGE UNITS LNK-FC-3-U-216-N
200 series standard duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain, belt drives, fans, blowers, power transmission and many other applications.
-
BrandLink-Belt®
-
UPC662327028503
-
Manufacturer Part Number10407587
-
CountryUSA|Canada
-
Load Capacity3150 lb Dynamic/1760 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating225 deg F
-
FinishPowder Coated
-
Flange Mounting Type4-Bolt Round
-
Maximum Speed9600 rpm
-
TypeStandard-Duty
-
Series200
-
Bearing MaterialAlloy Steel
-
Bolt Circle Diameter3-5/8 in
-
Bore Diameter1 in
-
Overall Depth1-23/64 in
-
Overall Length/Diameter4-3/8 in
- Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
- Compact, 1-piece housing provides excellent mounting support
- Non-relubricatable bearing
- Integral bearing seals
- Wide inner ring for increased shaft stability
- Cast iron housing
- Single lip contact seal
-
Alternative Part NumberFC3U216N
-
UNSPSC31171501
-
Standards/ApprovalsANSI/ABMA STD 9
-
Warranty1 Year
-
Package DescriptionEACH
-
Instruction/Installation Manual
-
Catalog
