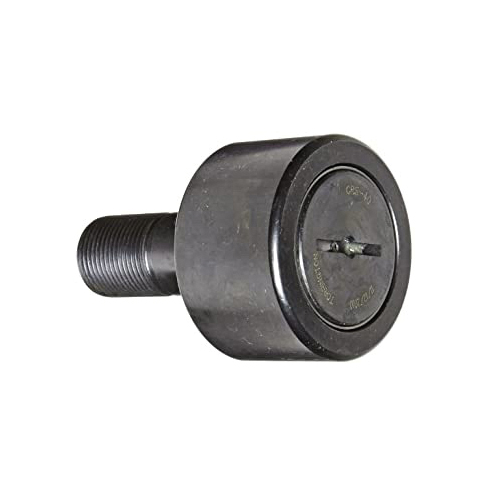

Koyo CRS-10-1 Inch Series Stud Type Uncaged Needle Bearing Track Roller, 5/8 in Dia x 0.438 in W Roller, 1/4 in Dia x 3/4 in L Stud, Steel Roller
Track rollers (also known as cam followers) are characterized by their thick-walled outer rings that run directly on a track. The thick outer rings permit high load-carrying capability while minimizing both distortion and bending stresses. Sealed designs with internal thrust washers help extend service life under conditions of infrequent lubrication.
-
BrandKoyo
-
UPC605790207105
-
Manufacturer Part NumberCRS-10-1
-
CountryUSA
-
Load Capacity1070 lbf Dynamic/1510 lbf Static
-
Temperature Rating-25 to 225 deg F
-
FinishBlack Oxide
-
Thread Length5/16 in
-
Thread Size1/4-28
-
Maximum Speed5500 rpm Grease
-
Closure TypeSealed
-
TypeStud Type Uncaged
-
Roller Diameter5/8 in
-
Roller MaterialSteel
-
Roller Width0.438 in
-
SeriesCRS Inch Series
-
Stud Diameter1/4 in
-
Stud Length3/4 in
- Screwdriver slot in head facilitates mounting
- Non-separable, sealed unit with outer ring, full complement of needle rollers, stud seals, self-lubricating resin internal thrust washers and stud-fastened retaining washer
- Seals help retain lubricant and exclude foreign matter
- Re-lubrication via axially drilled hole through stud with cross-drilled holes in stud raceway and shank
- Recessed axial hole accepts standard nominal inch drive-type grease lubrication fitting
- Lubrication fitting plugs furnished to close off unused holes
- Tolerance limits for outer diameters of stud and outer ring refer to "single mean diameter"
- A close fit between stud and hole required for mounting
- Retaining washer should be firmly backed up by flat housing shoulder (perpendicular to the stud axis)
- Shoulder diameter should be atleast same size as minimum clamping diameter listed
- May be mounted with two thin lock nuts or nut and lock washer
-
Alternative Part NumberCRS101PBL449
-
UNSPSC31171505
-
IncludesSeal and Internal Thrust Washer
-
Standards/ApprovalsANSI/ABMA 18.2
-
