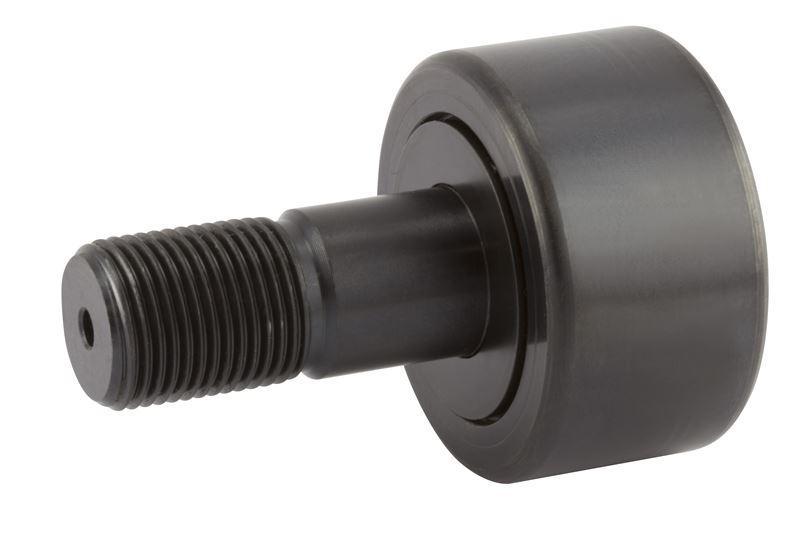

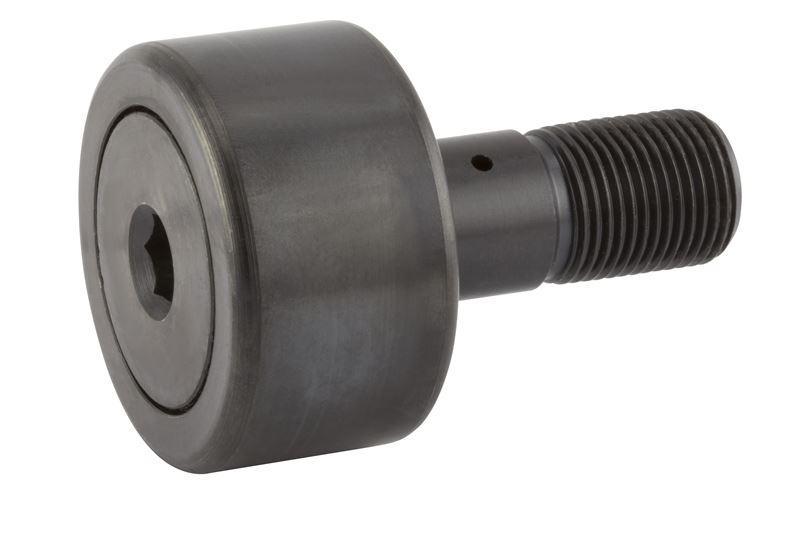

RBC® HexLube® CS64LW CS-LW Needle Roller Crowned Cam Follower, 2 in Dia x 1-1/4 in W Roller, 7/8 in Dia x 2 in L Stud, Chrome Steel Roller
Needle Roller Cam Followers have a heavy outer ring cross section and a full complement of needle rollers. They offer high dynamic and static load carrying capability, and anti-friction performance, in a compact design. They are used as track rollers, cam followers, and in a wide range of linear motion systems.
-
BrandRBC®
-
UPC637400005115
-
Manufacturer Part NumberCS64LW
-
CountryUSA
-
Load Capacity9600 lb Dynamic/16700 lb Static
-
Temperature Rating250 deg F
-
FinishBlack Oxide
-
Thread Length1 in
-
Thread Size7/8-14 UNF-2A
-
Maximum Speed2200 rpm
-
Closure TypeSealed
-
TypeNeedle Roller
-
Roller Diameter2 in
-
Roller MaterialChrome Steel
-
Roller Width1-1/4 in
-
Head TypeHex
-
SeriesCS-LW
-
Stud Diameter7/8 in
-
Stud Length2 in
-
Stud MaterialChrome Steel
-
Stud TypeStandard
- Inventory reduction of about 50%
- Allows relubrication in tight spots or when stud access is limited
- HexLube® universal cam follower can eliminate the need to stock screwdriver slots or unsealed cam followers
- Standard stud cam followers offer the mounting convenience of a threaded stud and are designed to accommodate moderate loads
- Double sealed to keep grease in and contaminants out
-
UNSPSC31171530
-
Package Description1/PK
-
Standards/ApprovalsANSI/ABMA Standard 11|ASPR|CAS|DFAR|FAR Standards
-
Warranty90 Days
-
