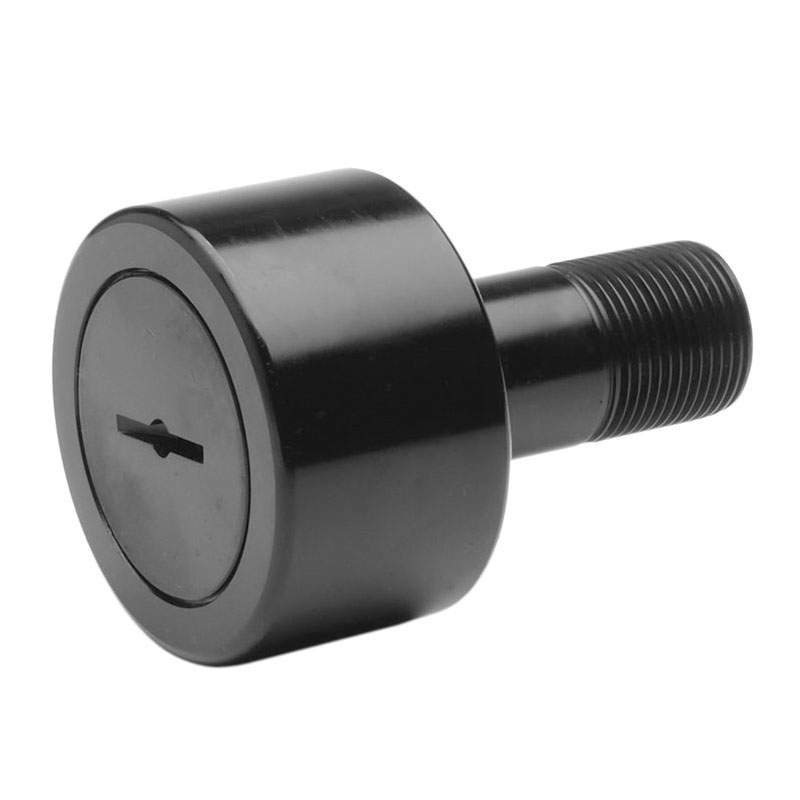

Smith Bearing® CR-3/4-X Cylindrical Stud Type Needle Bearing Cam Follower, 3/4 in Dia x 1/2 in W Roller, 3/8 in Dia x 7/8 in L Stud, 52100 Steel Roller
Screwdriver slot stud type needle roller bearings are recommended where running loads and shock loads are moderate. Bearing capacity of the stud type series is limited by the moderately sized stud. Manufactured from high alloy bearing quality steel. Most commonly used general purpose cam follower and available in sealed versions.
-
BrandSmith Bearing®
-
UPC651041084308
-
Manufacturer Part NumberCR-3/4-X
-
CountryUSA
-
Load Capacity2140 lb Dynamic/2260 lb Static
-
Thread Length3/8 in
-
Thread Size3/8-24 UNF-2A
-
Closure TypeSealed
-
TypeCylindrical Stud Type
-
Roller Diameter3/4 in
-
Roller Material52100 Steel
-
Roller Width1/2 in
-
Head TypeScrewdriver Slot
-
SeriesCR-X
-
Stud Diameter3/8 in
-
Stud Length7/8 in
-
Stud MaterialCarbon Steel
-
Stud TypeStandard
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 13W685 |
-
UNSPSC31171530
-
Warranty12 months
-
Full Engineering Drawing
-
Catalog
