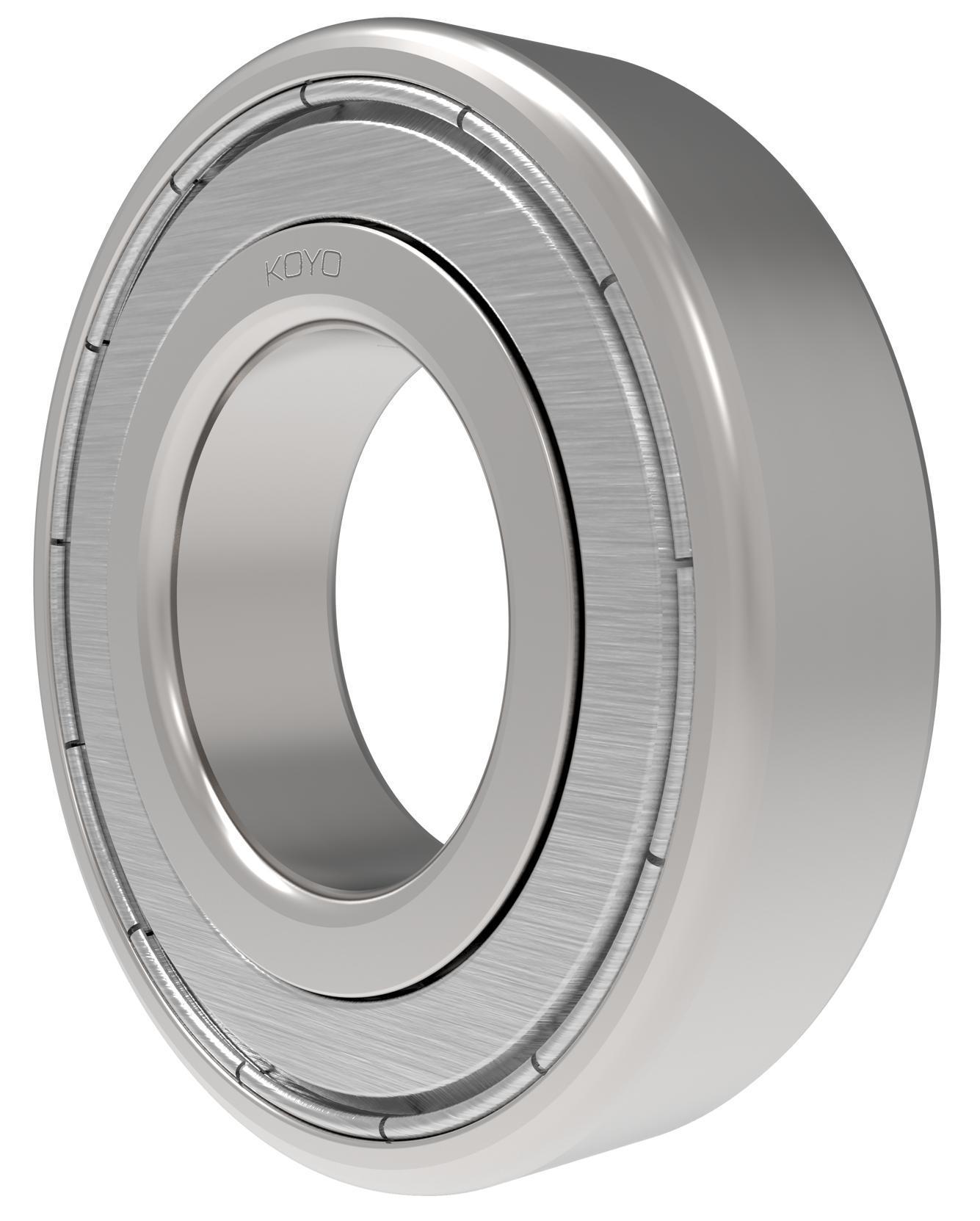

Koyo Bearing DOUBLE SHIELDED BALL BEARINGS KOY 6222-ZZ
Koyo 6222ZZ 6200 Round Deep Groove Ball Bearing, 110 mm Dia Bore, 200 mm Dia Outside, 1 Rows, 38 mm W, 180 kN Dynamic/117 kN Static Load
-
BrandKoyo
-
UPC605790368622
-
Manufacturer Part Number6222ZZ
-
CountryUSA
-
Load Capacity180 kN Dynamic/117 kN Static
-
Cage MaterialSteel
-
Temperature Rating-30 to 110 deg C
-
Maximum Speed3100 rpm Grease
-
Closure TypeDouble Shield
-
TypeRound
-
Width38 mm
-
Series6200
-
Number of Rows1
-
Bearing MaterialSteel
-
Outside Diameter200 mm
-
Bore Diameter110 mm
- All double sealed and double shielded product come with Polyrex XM Grease
- Available in max capacity or special heat treat (RSH2 in suffix)
- Available in miniature (EE) inch product
- Available with cermamic balls (3NCH or 3NC in prefix)
- Available with seals (2RD, 2RS, 2RU), shields (ZZ), open and/or with a snap ring (NR) options
- Available with steel (no callout) or brass (FY) cage
- Made from premium high carbon, high chromium Japanese steel
- The 2RD Seal is used for high speed and/or reduced drag applications in addition to applications that require maximum sealing ability
-
