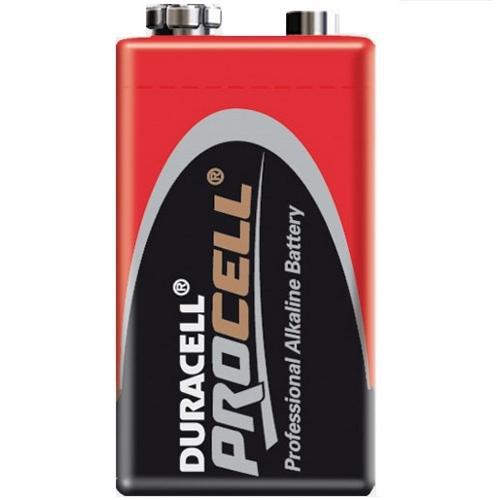

Duracell® PC1604 Mercury Free Rectangle Battery, Zinc-Manganese Dioxide, 9 VDC Nominal, 550 mAh Nominal, PP3
Duracell® PC1604 Mercury Free Rectangle Battery, Zinc-Manganese Dioxide, 9 VDC Nominal, 550 mAh Nominal, PP3
-
BrandDuracell®
-
UPC041333516400
-
Manufacturer Part NumberPC1604
-
CountryUSA
-
Terminal TypeMiniature Snap
-
Chemical SystemZinc-Manganese Dioxide
-
TypeMercury Free
-
Nominal Capacity550 mAh
-
Nominal Voltage9 VDC
-
Shelf Life4 to 6 years
-
Battery SizePP3
-
Dimensions46.4 mm H x 26.5 mm W x 17.5 mm D
-
Discharge Cut-Off Voltage8.5 VDC
-
Internal Impedance1700 mOhm
-
Life Hour8 hr
- 22.8 cu-cm volume
- 8.5 V at 100 Ohm, 8 hr, 21 deg C discharge cut-off voltage
- Provide power to your professional devices like motion sensors, testing equipment, remote controls, flashlights, calculators, clocks and radios, portable electronics, wireless mice and keyboards
- Reliable operation in extremes from -4 deg F to 129 deg F
- Guaranteed for 5 years in storage
- Batteries offer dependable, long-lasting power
- Batteries meet the standards of durability and longevity that professional users demand and expect
- -20 to 54 deg C temperature range
- 1700 mohm at 1 kHz impedance
- 9.6 to 4.8 V operating voltage
-
Alternative Part Number16902749
-
UNSPSC26111702
-
Package Description12/PK
-
Standards/ApprovalsRoHS Compliant
-
Specification Sheet
